Product Specifications

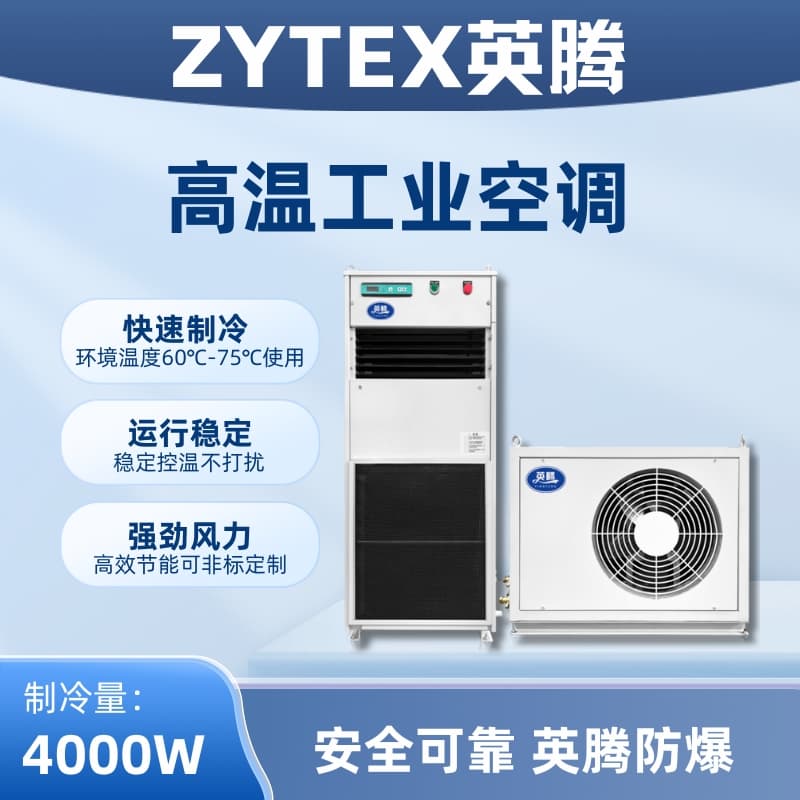

YTB-4R-M (AC380V model) Split-type Tall Cabinet High-Temperature Air Conditioner (Heating and Cooling)
Model: YTB-4R-M (AC380V Version)
Brand: YingTeng
Cooling Capacity: 4000W
Cooling Input Power: 1730W
Heating Capacity: 3000W
Heating Input Power: 3280W
Input Power: AC380V-3PH-50Hz (Three-phase four-wire system)
Throttling Method: Capillary
Indoor Air Circulation Volume: 1000 m³/h
Airflow Method: Direct Airflow from Front
Filling Quantity: 2.2 kg
接管 Size: Gas Pipe Φ3/4"×1.0, Liquid Pipe Φ1/2"×1.0
Overall Weight: Indoor unit 80kg, Outdoor unit 90kg
Dimensions: Indoor unit 550×320×1250mm, Outdoor unit 900×480×770mm
Note: Nominal cooling capacity: ambient dry bulb temperature is 45℃; indoor dry and wet bulb temperatures are 30℃ and 24℃ respectively, suitable for working environment temperatures below 75℃.
Product Features
Specialty (High-Temperature) Air Conditioners (also known as High-Environment Temperature Air Conditioning Units) are designed specifically for cooling and dehumidifying driving compartments and electrical rooms in harsh environments with high ambient temperatures. Their unique design allows the units to operate normally under high temperatures, strong vibrations, and corrosive conditions. They are widely used in the metallurgy industry, steel mills, mobile equipment in outdoor operations, and the four types of vehicles in the coking industry (tapping car, quenching car, coal car, push car) for their driving compartments, electrical rooms, high-voltage rooms, and similar spaces. They are also applied in electrolytic aluminum plants and other high-environmental work sites.
Application Scope
1. Improve working environment, capable of normal operation in high temperatures up to <90°C, and can achieve low-temperature refrigeration as per customer requirements.
2. Users can choose between high-temperature and ultra-high-temperature units based on actual requirements.
3. Introduce specialized German air conditioning technology to ensure product advancement.
4. Utilizing scroll compressors, imported electrical components, and anti-corrosion treatment for fin condensers and evaporators, ensuring stable operation of the unit in harsh environments.
5. Equipped with a user-friendly interface operating system and a synchronous refrigeration mode, operation is even more straightforward.
6. Specific features include strong corrosion resistance, high vibration resistance, and high-temperature tolerance of the unit.
7. Customize these series products to meet individual customer requirements, with a variety of accessories available to suit diverse user needs.
8. For ease of installation, customers may request the inclusion of the unit mounting bracket components prior to ordering.
9. The unit can be equipped with a de-watering device, enabling waterless operations.
