Product Specifications

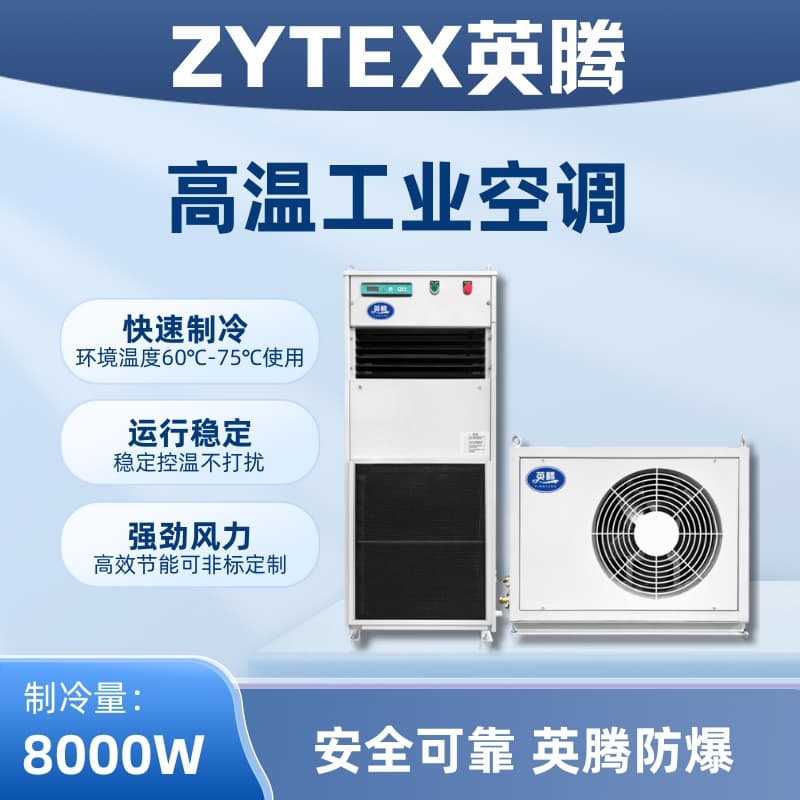

YTB-8R-E Split-Cabinet High-Temperature Air Conditioner (Cooling & Heating Type)

Model: YTB-8R-E

Brand: YingTeng

Cooling Capacity: 8000W

Rated Refrigeration Current: 8A

Heating Capacity: 7000W

Heating Input Power: 7620W

Rated heating current: 15A

Input Power: AC380V-3PH-50Hz (3-phase, 4-wire system)

Throttling Method: Capillary Throttling

Indoor Air Circulation Volume: 2300 m³/h

Indoor Fan Power: 250W

Airflow Method: Direct Airflow to Front

Charging Quantity: 2 x 3.5kg

接管尺寸: Automotive Pipe - 2-Φ3/4"×1.0, Liquid Pipe - 2-Φ1/2"×1.0

Overall Weight: Indoor unit 135kg, Outdoor unit 220kg

Dimensions: Indoor unit 760×410×1580mm, Outdoor unit 1400×650×1150mm

Note: Refrigerating capacity at nominal operating conditions: ambient dry bulb temperature is 45℃; indoor dry and wet bulb temperatures are 30℃ and 24℃ respectively, suitable for working environment temperatures below 90℃.

Product Features

Specialty (High-Temperature) Air Conditioners, also known as High-Environmental-Temperature Air Conditioning Units, are specifically designed for cooling and dehumidifying the cabins and electrical compartments in harsh environments with high environmental temperatures. Their unique design allows the units to operate normally under high temperatures, strong vibrations, and corrosive conditions. They are widely used in the metallurgy industry, steel mills, mobile equipment in outdoor operations, and the four types of vehicles in the coking industry (tapping cars, quenching cars, coal cars, and pusher cars) for their cabins, electrical rooms, high-voltage rooms, and other similar areas. They are also applied in electrolytic aluminum plants, outdoor operations, and other high-temperature work environments.

Application Scope

1. Improve working conditions, capable of normal operation in high temperatures up to <90°C, and can achieve low-temperature refrigeration as per customer requirements.

2. Users can choose between high-temperature and ultra-high-temperature units based on actual requirements.

3. Introduce advanced German special air conditioning technology to ensure product sophistication.

4. Utilizes a scroll compressor, imported electrical components, and corrosion-resistant treatment for the fin condenser and evaporator, ensuring stable operation of the unit under harsh environmental conditions.

5. Equipped with a user-friendly interface operating system and a synchronous refrigeration mode, operation is even more straightforward.

6. Specific features of the unit include strong corrosion resistance, high vibration resistance, and high-temperature tolerance.

7. Customization is available for this product series according to varying customer needs, with a range of accessories to choose from, catering to different customer requirements.

8. For easy installation, users may request the set of installation bracket components to be included with the order prior to purchase.

9. The unit can be equipped with a de-watering device, enabling waterless operations.
