Product Specifications

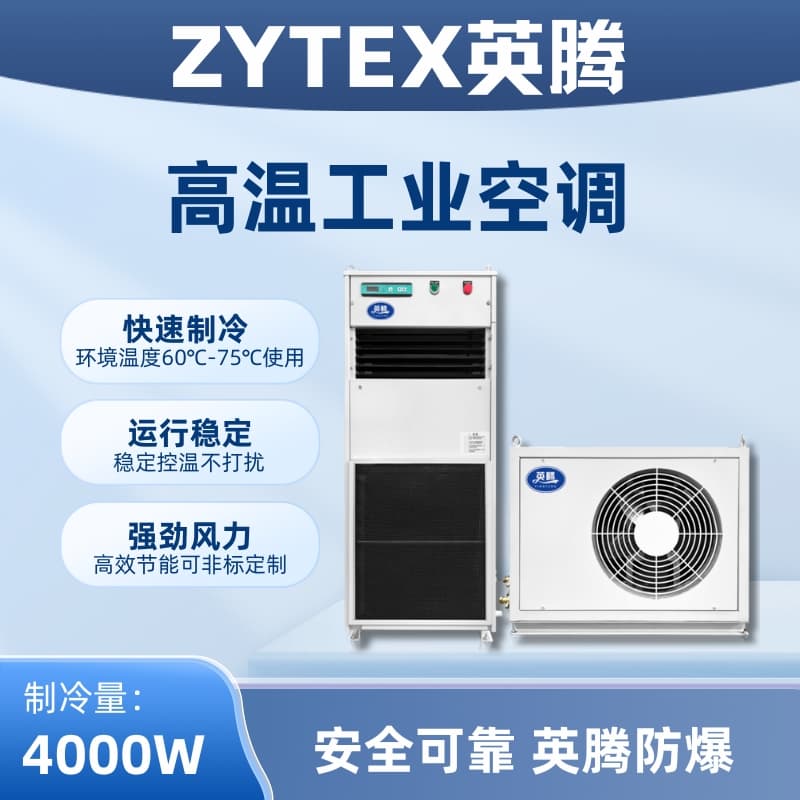

YTB-4-M (AC380V model) Split Type High-Temperature Air Conditioner (Single Cooling)
Model: YTB-4-M (AC380V version)
Brand: YingTeng
Cooling Capacity: 4000W
Cooling Input Power: 1750W
Heating Capacity: N/A (--)
Heating Input Power: N/A (--)
Input Power: AC380V-3PH-50Hz (3-phase 4-wire system)
Throttling method: Capillary
Indoor air recirculation volume: 1000 m³/h
Airflow Method: Direct Front Air Emission
Charging Quantity: 2.2kg
接管 Size: Steam Pipe Φ3/4"×1.0, Liquid Pipe Φ1/2"×1.0
Total Weight: Indoor Unit 75kg, Outdoor Unit 90kg
Dimensions: Indoor unit 550×320×1250mm, Outdoor unit 900×480×770mm
Note: Nominal cooling capacity: Ambient dry bulb temperature is 45℃; indoor dry and wet bulb temperatures are 30℃ and 24℃ respectively, suitable for working environment temperatures below 75℃.
Product Features
Special (High-Temperature) Air Conditioners (also known as High-Environment Temperature Air Conditioning Units) are designed specifically for cooling and dehumidifying driving cabs and electrical compartments in harsh environments with high ambient temperatures. Their unique design allows the units to operate normally under high temperatures, strong vibrations, and corrosive conditions. They are widely used in the metallurgy industry, steel mills, field operation vehicles, and the four types of vehicles in the coking industry (tapping car, quenching car, coal car, coke pushing car) for their cabs. Also in electrical rooms, high-voltage rooms, and other high-temperature work environments such as aluminum electrolysis plants and field operations.
Application Scope
1. Improve working environment, capable of normal operation in temperatures above 90°C, and can achieve low-temperature refrigeration as per customer requirements.
2. Users can choose between high-temperature and ultra-high-temperature units based on actual needs.
3. Adopted advanced German special air conditioning technology to ensure product sophistication.
4. Utilizing scroll compressors, imported electrical components, and anti-corrosion treatment for finned condensers and evaporators, ensuring stable operation of the unit in harsh environments.
5. Equipped with a user-friendly interface operating system and a synchronous refrigeration mode, operation is more straightforward.
6. Specific features include strong corrosion resistance, high vibration resistance, and high-temperature tolerance of the equipment.
7. Customization is available for this series of products to meet various user requirements, with a range of accessories to choose from.
8. For ease of installation, users can request the installation bracket components to be included with the order prior to purchase.
9. The unit can be equipped with a dehumidifying device, enabling waterless operations.
