Product Specifications

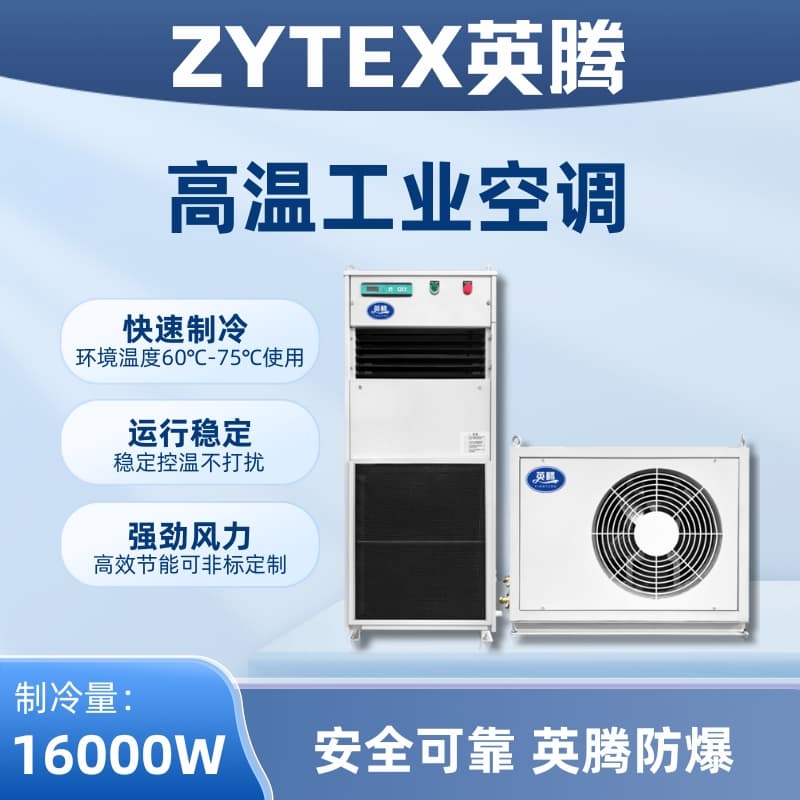

YTB-16-E Split-Cabinet High-Temperature Air Conditioner (Single-Cooling Type)
Model: YTB-16-E
Brand: YingTeng
Cooling Capacity: 16,000W
Rated Refrigerant Current: 17A
Heating Capacity: N/A (--)
Heating Input Power: N/A (--)
Heating Rating Current: N/A (--)
Input Power: AC380V-3PH-50Hz (Three-phase, four-wire system)
Throttling Method: Capillary Throttling
Indoor air recirculation volume: 2900 m³/h
Indoor Fan Power: 350W
Airflow Method: Direct Front Air Emission
Charging Quantity: 2 × 5.0 kg
接管尺寸: Pipe 2 - Φ3/4"×1.0, Liquid Pipe 2 - Φ1/2"×1.0
Unit Weight: Indoor unit 165kg, Outdoor unit 250kg
Dimensions: Indoor unit 860×410×1680mm, Outdoor unit 1800×680×1150mm
Note: Nominal cooling capacity: Ambient dry bulb temperature is 45℃; indoor dry and wet bulb temperatures are 30℃ and 24℃ respectively, suitable for working environment temperatures below 90℃.
Product Features
Special (High-Temperature) Air Conditioners (also known as High-Environmental-Temperature Air Conditioning Units) are designed specifically for cooling and dehumidifying driving compartments and electrical rooms in harsh environments with high environmental temperatures. Their unique design allows the units to operate normally under high temperatures, strong vibrations, and corrosive conditions. They are widely used in the metallurgy industry, steel mills, mobile equipment in outdoor operations, and the four types of vehicles in the coking industry (tapping cars, quenching cars, coal loading cars, and pusher cars) for their driving compartments, electrical rooms, high-voltage rooms, and similar spaces. They are also applied in electrolytic aluminum plants and other high-temperature work environments.
Application Scope
1. Improve working conditions; operates normally in high temperatures up to <90℃ and can achieve low-temperature refrigeration as per customer requirements.
2. Users can choose between high-temperature and ultra-high-temperature units based on actual requirements.
3. Introduce German special air conditioning technology to ensure product advancement.
4. Utilizing spiral compressors, imported electrical components, and anti-corrosion treatment for finned condensers and evaporators, ensuring stable operation of the unit in harsh environments.
5. User-friendly interface operating system, with synchronous cooling mode for easier operation.
6. Specific features of the unit include strong corrosion resistance, high vibration resistance, and high-temperature tolerance.
7. The series can be customized to meet various user requirements, with a range of accessories available for selection to accommodate different user needs.
8. For easy installation, customers can request the installation bracket components to be included with their order prior to purchase.
9. The unit can be equipped with a de-watering device, enabling waterless operation.
