Product Specifications

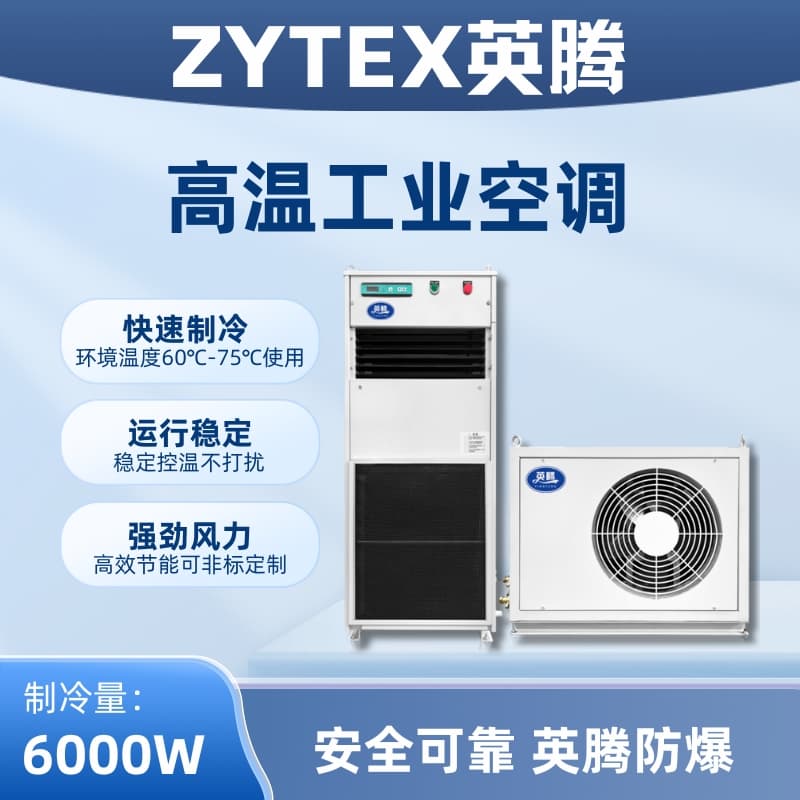

YTB-6R-M (AC220V Model) Split-Cabinet High-Temperature Air Conditioner (Heating & Cooling Type)
Model: YTB-6R-M (AC220V Version)
Brand: YingTeng
Cooling Capacity: 6000W
Cooling Input Power: 2590W
Heating Capacity: 3000W
Heating Input Power: 3290W
Input Voltage: AC220V-1PH-50Hz (Single Phase Three-Wire System)
Throttling Method: Capillary
Indoor air recirculation volume: 1000 m³/h
Airflow Method: Direct Front Air Emission
Charging Quantity: 2.4 kg
接管尺寸: Pipe Φ3/4"×1.0, Liquid Pipe Φ1/2"×1.0
Overall Weight: Indoor unit 80kg, Outdoor unit 105kg
Dimensions: Indoor unit 550×320×1250mm, Outdoor unit 900×480×770mm
Note: Nominal cooling capacity: ambient dry bulb temperature is 45℃; indoor dry and wet bulb temperatures are 30℃ and 24℃ respectively, suitable for working environment temperatures below 75℃.
Product Features
Special (High-Temperature) Air Conditioners (also known as High-Environment Temperature Air Conditioning Units) are designed specifically for cooling and dehumidifying driving compartments and electrical rooms in harsh environments with high ambient temperatures. Their unique design allows the units to operate normally under high temperatures, strong vibrations, and corrosive conditions. They are widely used in the metallurgy industry, steel mills, mobile equipment in outdoor operations, and the four types of vehicles in the coking industry (taphole car, coke quenching car, coal charging car, coke pushing car) for their driving compartments, electrical rooms, high-voltage rooms, and similar spaces. They are also applied in electrolytic aluminum plants and other high-temperature work environments.
Application Scope
1. Improve working conditions, capable of normal operation in high temperatures up to <90°C, and can achieve low-temperature refrigeration as per customer requirements.
2. Users can choose between high-temperature and ultra-high-temperature units based on actual requirements.
3. Introduce advanced German special air conditioning technology to ensure product sophistication.
4. Utilizing scroll compressors, imported electrical components, and anti-corrosion treatment for finned condensers and evaporators, ensuring stable operation of the unit in harsh environments.
5. Equipped with a user-friendly interface operating system and a synchronous refrigeration mode, operation is even more straightforward.
6. Specific features of the unit include strong corrosion resistance, high vibration resistance, and high-temperature tolerance.
7. Customize this series according to different user requirements, with a variety of accessories available to meet the diverse needs of customers:
8. For ease of installation, customers may request the inclusion of the unit mounting bracket components prior to ordering.
9. The unit can be equipped with a dehumidifying device, achieving waterless operation.
