Product Specifications

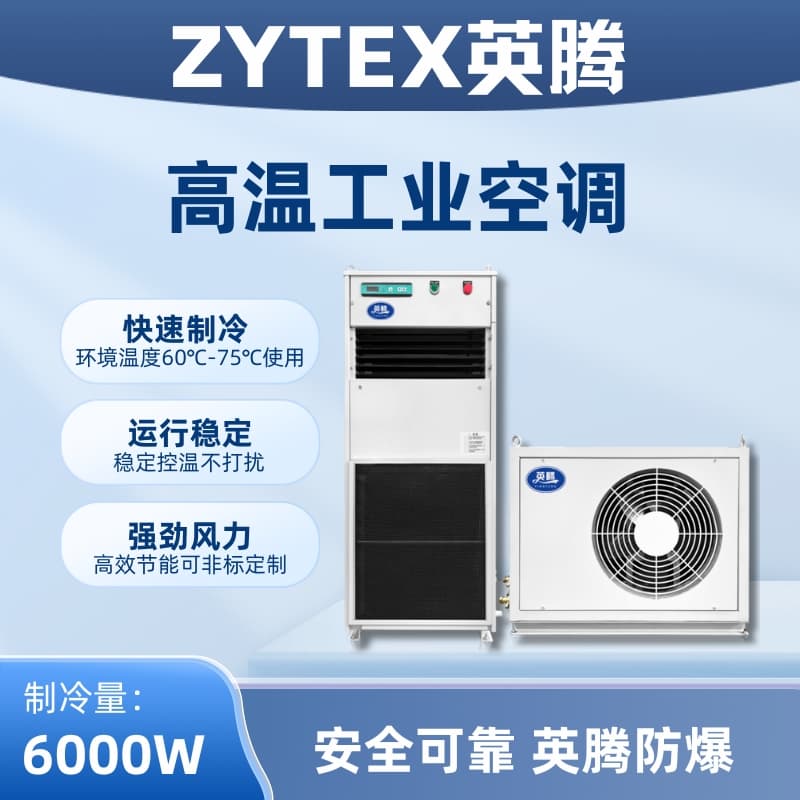

YTB-6-M (AC380V version) Split-cabinet High-Temperature Air Conditioner (Single Cooling Type)
Model: YTB-6-M (AC380V Version)
Brand: Yingten
Cooling Capacity: 6000W
Cooling Input Power: 2620W
Heating Capacity: N/A (--)
Heating Input Power: N/A (--)
Input Power: AC380V-3PH-50Hz (3-phase 4-wire system)
Throttling Method: Capillary
Indoor air circulation volume: 1000 m³/h
Airflow Method: Direct frontal exhaust
Fill Volume: 2.4 kg
接管 Size: Gas Pipe Φ3/4"×1.0, Liquid Pipe Φ1/2"×1.0
Overall Weight: Indoor unit 75kg, Outdoor unit 105kg
Dimensions: Indoor unit 550×320×1250mm, Outdoor unit 900×480×770mm
Note: Cooling capacity at nominal conditions: ambient dry bulb temperature is 45℃; indoor dry and wet bulb temperatures are 30℃ and 24℃ respectively, suitable for working environment temperatures below 75℃.
Product Features
Special (High-Temperature) Air Conditioners (also known as High-Environment Temperature Air Conditioning Units) are designed specifically for cooling and dehumidifying driving compartments and electrical rooms in harsh environments with high ambient temperatures. Their unique design allows the units to operate normally under high temperatures, strong vibrations, and corrosive conditions. Widely used in the metallurgy industry, steel mills, mobile equipment in outdoor operations, and the four vehicles in the coking industry (tapping car, quenching car, coal car, push car) for driving compartments, electrical rooms, high-voltage rooms, and the like. Also applicable in electrolytic aluminum plants, outdoor operations, and other high-temperature work environments.
Application Range
1. Improve working conditions, capable of normal operation in high temperatures up to <90°C, and can achieve low-temperature refrigeration as per customer requirements.
2. Users can choose between high-temperature and ultra-high-temperature units based on actual needs.
3. Introduce German special air conditioning technology to ensure product advancement.
4. Utilizes a scroll compressor, imported electrical components, and corrosion-resistant treatment for the fin condenser and evaporator, ensuring stable operation of the unit under harsh environmental conditions.
5. Features a user-friendly interface operating system and a synchronous cooling mode for easier operation.
6. Specific features include strong corrosion resistance, high vibration resistance, and high-temperature tolerance of the engine assembly.
7. Customization is available for this series according to various user needs, with a range of accessories to choose from, catering to diverse user requirements.
8. For easy installation, users can request the set of installation bracket components to be included with the order prior to purchase.
9. The equipment can be fitted with a de-watering unit, enabling waterless operation.
