Product Specifications

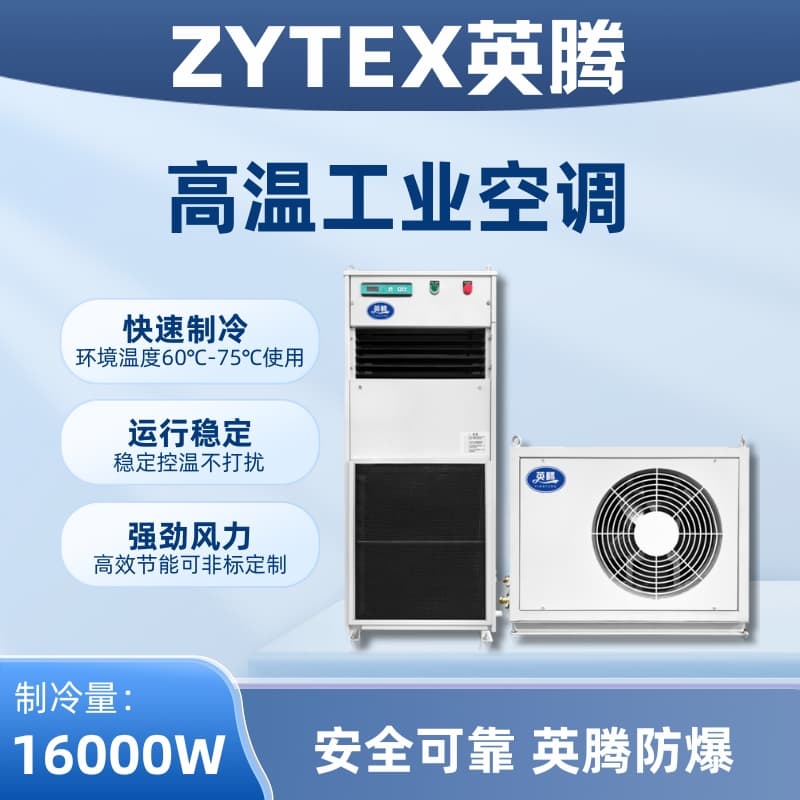

YTB-16R-E Split Type High-Temperature Air Conditioner (Cooling and Heating)
Model: YTB-16R-E
Brand: YingTeng
Cooling Capacity: 16,000W
Rated Cooling Current: 17A
Heating Capacity: 10,000W
Heating Input Power: 10880W
Heating rated current: 21A
Input Power: AC380V-3PH-50Hz (Three-phase four-wire system)
Throttling Method: Capillary Throttling
Indoor Air Circulation Volume: 2900 m³/h
Indoor Fan Power: 350W
Airflow Method: Direct Front Air Emission
Charging Quantity: 2 x 5.0 kg
接管尺寸：Gas Pipe 2 - Φ3/4" × 1.0, Liquid Pipe 2 - Φ1/2" × 1.0
Unit Weight: Indoor unit 180kg, Outdoor unit 250kg
Dimensions: Indoor unit 860×410×1680mm, Outdoor unit 1800×680×1150mm
Note: Cooling capacity at rated conditions: ambient dry bulb temperature is 45°C; indoor dry and wet bulb temperatures are 30°C and 24°C, respectively, suitable for working environment temperatures below 90°C.
Product Features
Special (High-Temperature) Air Conditioning (also known as High-Environment Temperature Air Conditioning Units) is designed for cooling and dehumidifying driving cabins and electrical rooms in harsh environments with high ambient temperatures. Its unique design allows the unit to operate normally under high temperatures, strong vibrations, and corrosive conditions. Widely used in the metallurgy industry, steel mills, mobile equipment in outdoor operations, and the four types of vehicles in the coking industry (tapping car, quenching car, coal car, push car) for their cabins. Also applicable to electrical rooms, high-voltage rooms, and other high-temperature work environments such as aluminum electrolysis plants and outdoor operations.
Application Scope
1. Improve working conditions, capable of normal operation in high temperatures up to <90°C, and can achieve low-temperature refrigeration as per customer requirements.
2. Users can choose between high-temperature and ultra-high-temperature units based on actual requirements.
3. Introduce German special air conditioning technology to ensure product advancement.
4. Equipped with scroll compressors and imported electrical components, the fin condenser and evaporator are treated for corrosion resistance, ensuring the stability of the unit's operation in harsh environments.
5. Equipped with a user-friendly interface operating system and a synchronous cooling mode for simplified operation.
6. Specific features of the unit include strong corrosion resistance, high vibration resistance, and high-temperature tolerance.
7. Tailor-made options are available in this series for various user needs, with a range of accessories to choose from for added customization.
8. For ease of installation, users may request installation bracket components to be included with the order prior to purchase.
9. The unit can be equipped with a de-watering device to achieve waterless operation.
