Product Specifications

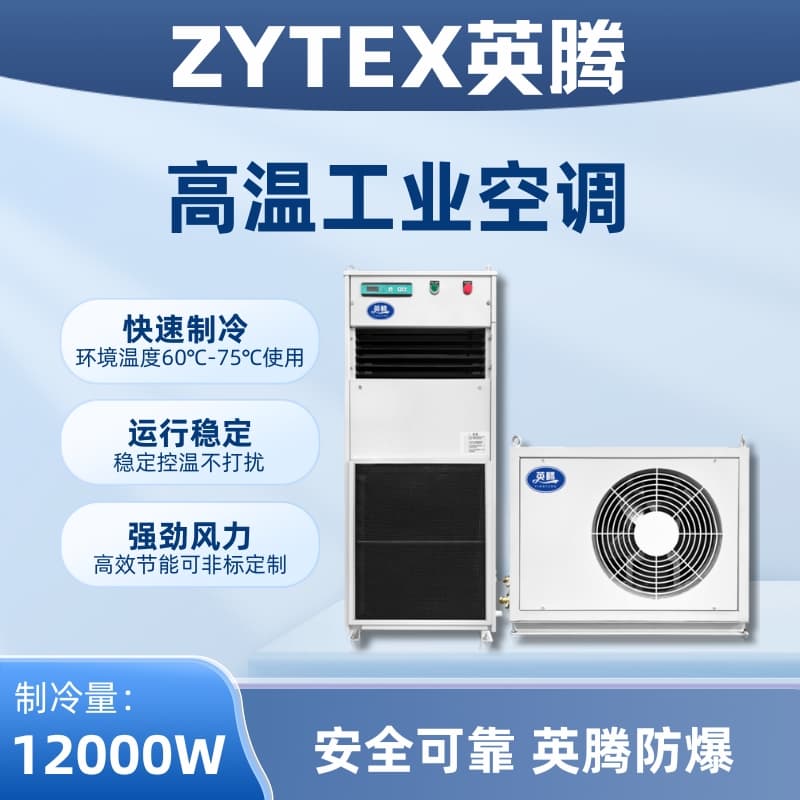

YTB-12R-M Split-Cabinet High-Temperature Air Conditioner (Heating and Cooling Type)
Model: YTB-12R-M
Brand: YingTeng
Cooling Capacity: 12,000W
Cooling Input Power: 5200W
Heating Capacity: 7000W
Heating Input Power: 7620W
Input Power: AC380V-3PH-50Hz (3-phase 4-wire system)
Throttling Method: Capillary
Indoor air circulation volume: 2000 m³/h
Airflow Method: Direct Front Air Emission
Charging Quantity: 2 x 2.4kg
接管尺寸: Gas Pipe - 2-Φ3/4"×1.0, Liquid Pipe - 2-Φ3/4"×1.0
Unit Weight: Indoor unit 135kg, Outdoor unit 205kg
Dimensions: Indoor unit 710×390×1440mm, Outdoor unit 1300×600×950mm
Note: Nominal cooling capacity: ambient dry bulb temperature is 45℃; indoor dry and wet bulb temperatures are 30℃ and 24℃ respectively, suitable for working environment temperatures below 75℃.
Product Features
Special (High-Temperature) Air Conditioners (also known as High-Environment Temperature Air Conditioning Units) are designed specifically for cooling and dehumidifying driving cabins and electrical rooms in harsh environments with high ambient temperatures. Their unique design allows the units to operate normally under high temperatures, strong vibrations, and corrosive conditions. They are widely used in the metallurgy industry, steel mills, field operation vehicles, and the four types of vehicles in the coking industry ( coke handling car, coke quenching car, coal charging car, coke pushing car) for their cabins. Also used in electrical rooms, high-pressure rooms, and other high-temperature work environments such as electrolytic aluminum plants and field operations.
Application Scope
1. Improve working environment; operates normally in high temperatures up to <90℃ and can achieve low-temperature refrigeration upon customer request.
2. Users can choose between high-temperature and ultra-high-temperature units based on actual requirements.
3. Introduce advanced German special air conditioning technology, ensuring product innovation.
4. Utilizing a scroll compressor, imported electrical components, and anti-corrosion treatment for the fin condenser and evaporator, ensuring the unit's stability in harsh environmental conditions.
5. Equipped with a user-friendly interface operating system and a synchronous cooling mode, operation is even more straightforward.
6. Specific features of the unit's high corrosion resistance, vibration resistance, and high-temperature tolerance.
7. Customization is available for this series according to different user requirements, with a variety of accessories to choose from, ensuring satisfaction for diverse user needs.
8. For ease of installation, users can request the inclusion of the unit mounting bracket components prior to ordering.
9. The equipment can be equipped with a dehumidification unit, enabling water-free operations.
