Product Specifications

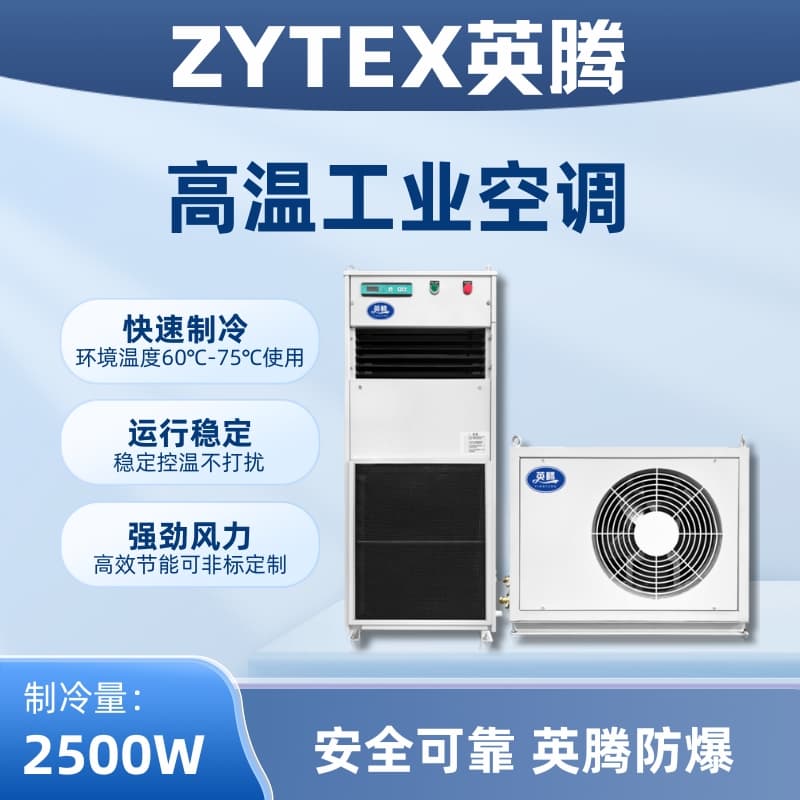

YTB-2.5R-M Split-Cabinet High-Temperature Air Conditioner (Heating and Cooling Type)
Model: YTB-2.5R-M
Brand: YingTeng
Cooling Capacity: 2500W
Cooling Input Power: 1750W
Heating Output: 2200W
Heating Input Power: 2400W
Input Power: AC 220V-1PH-50Hz (Single-phase three-wire system)
Throttling Method: Capillary
Indoor Air Circulation Volume: 1000 m³/h
Airflow Method: Direct Front Air Emission
Fill Volume: 2.2 kg
接管 Size: Gas Pipe Φ3/4"×1.0, Liquid Pipe Φ1/2"×1.0
Total Weight: Indoor Unit 55kg, Outdoor Unit 90kg
Dimensions: Indoor unit 550×320×1250mm, Outdoor unit 900×480×770mm
Note: Refrigerating capacity at nominal operating conditions: Ambient dry bulb temperature: 45℃; Indoor dry and wet bulb temperatures: 30℃ and 24℃; suitable for working environment temperatures below 75℃.
Product Features
Special (High-Temperature) Air Conditioners (also known as High-Environment Temperature Air Conditioning Units) are specifically designed for cooling and dehumidifying driving cabins and electrical rooms in harsh environments with high ambient temperatures. Their unique design allows the units to operate normally under high temperatures, strong vibrations, and corrosive conditions. They are widely used in the metallurgical industry, steel mills, mobile equipment for outdoor operations, and the four types of vehicles in the coking industry (taphole-closing vehicle, coke-putting vehicle, coal-loading vehicle, coke-push vehicle) for their cabins. Also in electrical rooms, high-voltage rooms, and other similar environments. They are also applied in aluminum electrolysis plants, outdoor work sites, and other high-temperature work environments.
Application Scope
1. Improve the working environment, capable of normal operation in high temperatures up to <90°C, and can achieve low-temperature refrigeration according to customer requirements.
2. Users can choose between high-temperature and ultra-high-temperature models based on actual requirements.
3. Introduce advanced German specialty air conditioning technology to ensure product innovation.
4. Equipped with a spiral compressor, imported electrical components, and corrosion-resistant treatment for fin condensers and evaporators, ensuring the unit's stability in harsh environments.
5. Features a user-friendly interface operating system and a synchronous cooling mode for easier operation.
6. Specific features include strong corrosion resistance, high vibration resistance, and high-temperature tolerance for the engine assembly.
7. Customization is available for this series of products to meet various user requirements, with a range of accessories to choose from.
8. For ease of installation, users may request installation bracket components to be included with their order prior to purchase.
9. The unit can be equipped with a de-watering device to achieve waterless operation.
