Product Specifications

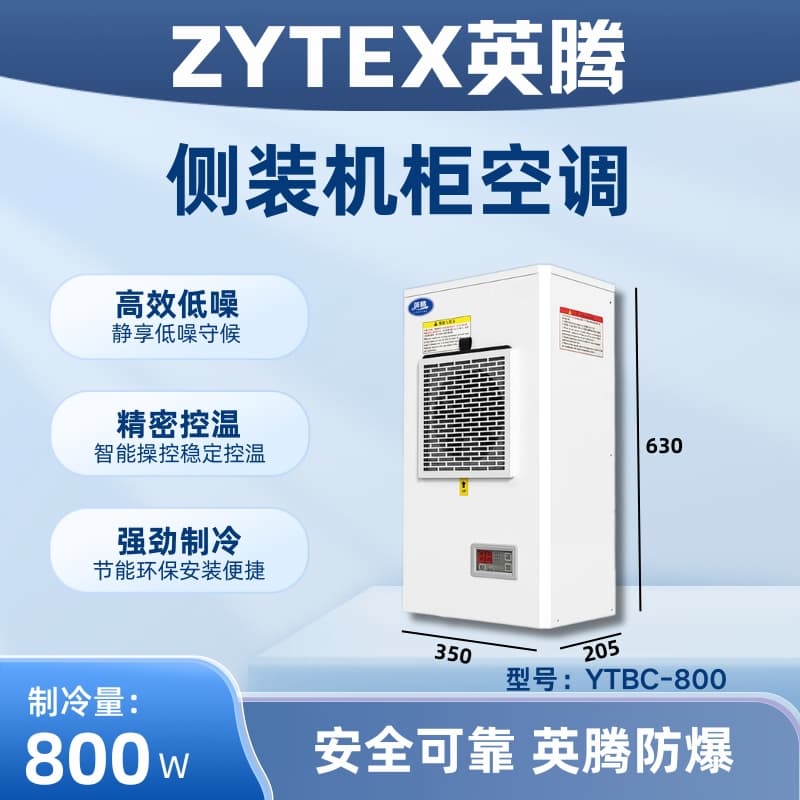

Model: YTBC-800

Brand: YingTeng

Cooling Capacity: 800W

Interior temperature range: 25℃~38℃

Exterior Temperature Range: -5℃ to 45℃

System Pressure Resistance: 26bar

Power: 220V/50Hz

Operating Current: 2.4A

Input Power: 450W

Cabinet air circulation volume: 230 m³/h

Outdoor cabinet air circulation volume: 290 m³/h

Internal Protection Rating: IP54

External Protection Rating: IP34

Noise: 60 dB(A)

Weight: 27 kg

Dimensions (width x height x depth): 350*630*205mm

Description:

Test conditions are 35°C dry bulb temperature and 26°C wet bulb temperature inside the electrical cabinet, and 35°C dry bulb temperature outside the electrical cabinet.

2. The above product specifications are for standard models. For larger cooling capacity or customized products, please call our company for detailed inquiries.

Product Features

Equipped with temperature regulation and dehumidification functions, ensuring ideal temperature and humidity requirements are met within the electrical control cabinet.

Utilizing a high-efficiency vortex-type rotor compressor, offering high reliability, low energy consumption, and stable quality.

The air inside the cabinet does not exchange heat with the ambient air, ensuring the cleanliness of the internal air within the electrical cabinet.

Choose high airflow, high static pressure centrifugal fans for better air recirculation and heat exchange efficiency.

Proper inflow and return air design, avoiding short-circuiting in the cabinet's air circulation.

The full touch screen controller can feature alarm functionality, dehumidification capabilities, and real-time monitoring of the air conditioner's operating status.

Compact, lightweight, and extremely easy to install, use, and maintain.

Application Scope

Now widely applied in machine tools, data processing, communication, finance, metallurgy, petrochemicals, building materials, and automotive industries, some large-scale data processing centers and CNC machining centers in China are also extensively in use. The exceptional efficiency and excellent performance of the electrical cabinet air conditioners are gradually gaining recognition and adoption from an increasing number of high-end customers both domestically and internationally.

Selection Examples

The control cabinet surface area is 8㎡ (A=8㎡), with an ambient temperature of 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain an internal cabinet temperature of 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:

△T=T0-Ti=35-28=7°C

Qr=5.5xAx△T=5.5x8x7=308W

Qt=1.2x（Qr+Qi）=1.2x（150+308）=458W

Choose the air conditioner model YTBC-600.
