Product Specifications

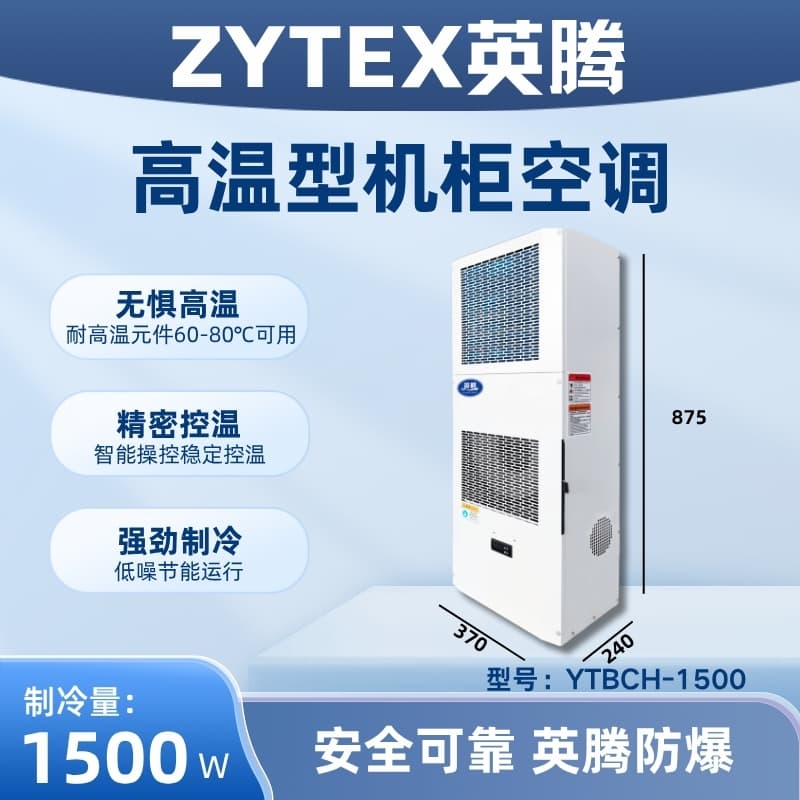

Model: YTBCH-1500
Brand: YingTeng
Cooling Capacity: 1500W
Interior temperature range: 25℃~38℃
External cabinet temperature range: -5℃ to 55℃
System Pressure Resistance: 26bar
Power: 220V/50Hz
Operating Current: 3.3A
Input Power: 750W
Cabinet air circulation volume: 270 m³/h
Outdoor circulation air volume: 860 m³/h
Internal Protection Rating: IP54
External Protection Rating: IP34
Noise: 65 dB(A)
Weight: 38 kg
Dimensions (Width x Height x Depth): 370*875*240mm
Description:
Test conditions are 35°C dry bulb temperature and 26°C wet bulb temperature inside the electrical cabinet, and 35°C dry bulb temperature outside the electrical cabinet.
2. The above product specifications are for standard models. For larger cooling capacity or customized products, please call our company for details.
Product Features
Equipped with temperature control and dehumidification functions to ensure ideal temperature and humidity requirements inside the electrical control cabinet:
Utilizing high-efficiency scroll-type compressor, featuring high reliability, low energy consumption, and stable quality.
No air heat exchange occurs between the interior and exterior air of the cabinet, ensuring the internal air of the electrical cabinet remains clean.
Choose high-volume, high-static-pressure centrifugal fans for better air circulation and heat exchange efficiency.
Reasonable air intake and exhaust structure to avoid short-circuiting of air circulation inside the cabinet.
The full touch screen controller can be equipped with alarm functions, dehumidification capabilities, and real-time monitoring of the air conditioner's operation status.
Compact, lightweight, and extremely easy to install, use, and maintain.
Application Scope
Now widely used in machine tools, data processing, communication, finance, metallurgy, petrochemicals, construction materials, and automotive industries, some large-scale data processing centers and CNC machining centers in China have also been widely adopted. The exceptional efficiency and excellent performance of the electrical cabinet air conditioners are gradually gaining recognition and usage from an increasing number of high-end customers both domestically and internationally.
Selection Examples
The control cabinet surface area is 8㎡ (A=8㎡), and the environmental temperature is 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain the cabinet temperature at 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x（Qr+Qi）=1.2x（150+308）=458W
Choose the air conditioner model YTBC-600.
