Product Specifications

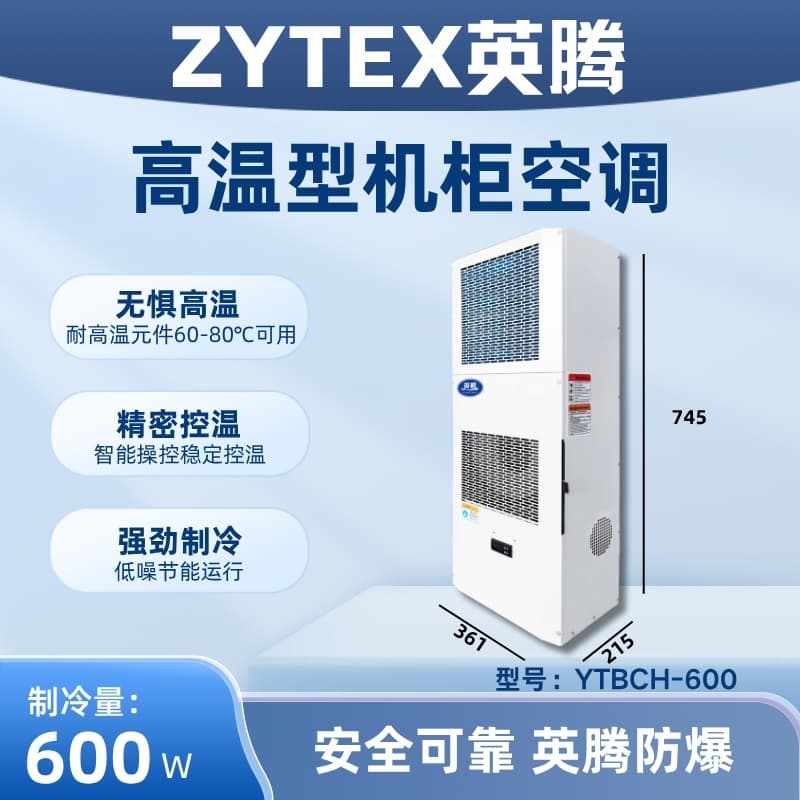

Model: YTBCH-600
Brand: YingTeng
Cooling Capacity: 600W
Cabinet temperature range: 25℃~38℃
External cabinet temperature range: -5℃ to 55℃
System Pressure Resistance: 26bar
Power Supply: 220V/50Hz
Operating Current: 2.1A
Input Power: 420W
Cabinet air circulation volume: 230 m³/h
Outdoor cabinet air volume: 290 m³/h
Internal Protection Rating: IP54
External Protection Rating: IP34
Noise: 60 dB(A)
Weight: 26 kg
Dimensions (Width x Height x Depth): 350*630*205mm
Description:
Test conditions are: dry bulb temperature of 35°C on the inside of the electrical cabinet, wet bulb temperature of 26°C, and dry bulb temperature of 35°C on the outside of the electrical cabinet.
2. The above product specifications are for standard models. For larger cooling capacities or customized products, please call our company for detailed inquiries.
Product Features
Equipped with temperature regulation and dehumidification functions, ensuring ideal temperature and humidity requirements are met within the electrical control cabinet.
Utilizing high-efficiency spiral rotor compressors, offering high reliability, low energy consumption, and stable quality.
No air heat exchange occurs between the cabinet air and the ambient air, ensuring the cleanliness of the internal air within the electrical cabinet.
Choose high-volume, high-static-pressure centrifugal fans for better air circulation and heat exchange efficiency.
Reasonable air intake and exhaust structure, avoiding short-circuiting of air circulation inside the cabinet.
The full touch screen controller can be equipped with alarm functions, dehumidification capabilities, and real-time monitoring of the air conditioner's operating status.
Compact, lightweight, and extremely easy to install, use, and maintain.
Application Range
Extensively applied in machine tools, data processing, communication, finance, metallurgy, petrochemicals, building materials, and automotive industries, large-scale data processing centers and numerical control machining centers in China are also widely utilizing them. The exceptional performance and superior quality of the electrical cabinet air conditioners are gradually gaining recognition and usage from an increasing number of high-end clients both domestically and internationally.
Selection Example
The control cabinet has a surface area of 8㎡ (A=8㎡), with an ambient temperature of 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain an internal cabinet temperature of 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x（Qr+Qi）=1.2x（150+308）=458W
Choose the air conditioner model YTBC-600.
