Product Specifications

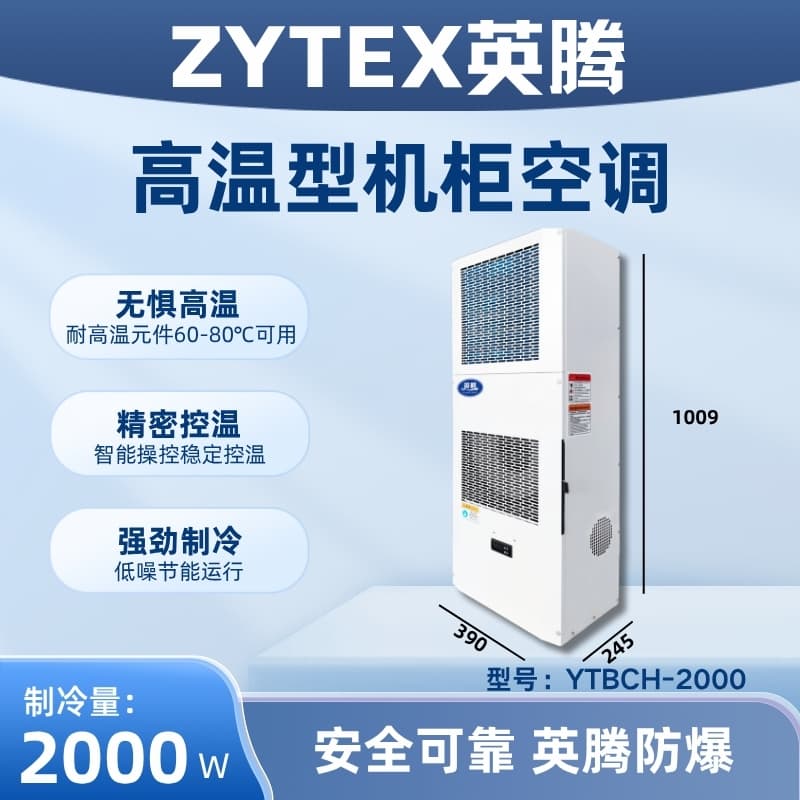

Model: YTBCH-2000
Brand: YingTeng
Cooling capacity: 2000W
Internal cabinet temperature range: 25℃~38℃
External cabinet temperature range: -5℃ to 55℃
System Pressure Resistance: 26bar
Power: 220V/50Hz
Working Current: 4.15A
Input Power: 923W
Cabinet air circulation volume: 320 m³/h
Outdoor cabinet air volume: 1050 m³/h
Internal Protection Rating: IP54
External Protection Rating: IP34
Noise: 65 dB(A)
Weight: 49 kg
Dimensions (Width x Height x Depth): 390*1009*245mm
Description:
Test conditions are: dry bulb temperature of 35°C inside the electrical cabinet, wet bulb temperature of 26°C, and dry bulb temperature of 35°C outside the electrical cabinet.
2. The above product specifications are for standard models. For larger cooling capacity or customized products, please call our company for detailed inquiries.
Product Features
Equipped with temperature control and dehumidification functions, ensuring ideal temperature and humidity requirements within the electrical control cabinet.
Utilizing high-efficiency scroll-type compressor, offering high reliability, low energy consumption, and stable quality.
No air heat exchange occurs between the cabinet air and the ambient air, ensuring the interior air of the electrical cabinet remains clean.
Choose high-volume, high-static-pressure centrifugal fans for better air circulation and heat exchange efficiency.
Proper inflow and exhaust air design, preventing short-circuiting of air circulation within the cabinet.
The full touch screen controller can be equipped with alarm and dehumidification functions, and can monitor the operational status of the air conditioner in real time.
Compact, lightweight, with easy installation, operation, and maintenance.
Application Scope
Extensively applied in fields such as machine tools, data processing, communication, finance, metallurgy, petrochemicals, building materials, and automotive industries, some large domestic data processing centers and CNC machining centers are also widely utilizing them. The superior effectiveness and excellent performance of the electrical cabinet air conditioners are gradually gaining recognition and adoption by an increasing number of high-end domestic and international clients.
Selection Example
The control cabinet surface area is 8㎡ (A=8㎡), and the environmental temperature is 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain an internal cabinet temperature of 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x（Qr+Qi）=1.2x（150+308）=458W
Choose the air conditioner model YTBC-600.
