Product Specifications

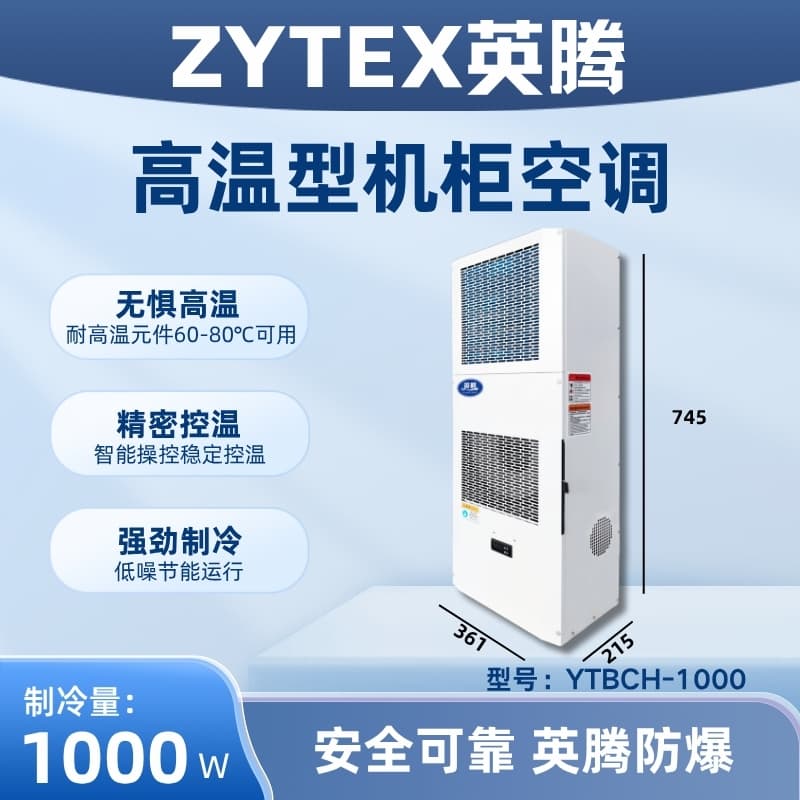

Model: YTBCH-1000
Brand: YingTeng
Cooling Capacity: 1000W
Internal temperature range: 25℃~38℃
External cabinet temperature range: -5℃ to 55℃
System Pressure Resistance: 26bar
Power: 220V/50Hz
Operating Current: 2.85A
Input Power: 610W
Cabinet air circulation volume: 250 m³/h
Outdoor cabinet air circulation volume: 640 m³/h
Internal Protection Rating: IP54
External Protection Rating: IP34
Noise: 65 dB(A)
Weight: 36 kg
Dimensions (width x height x depth): 361*745*215mm
Description:
The test condition is 35°C dry bulb temperature and 26°C wet bulb temperature inside the electrical cabinet, with a dry bulb temperature of 35°C outside the electrical cabinet.
2. The above product specifications are for standard models. For larger cooling capacity or customized products, please call our company for detailed inquiries.
Product Features
Equipped with temperature regulation and dehumidification features to ensure ideal temperature and humidity requirements within the electrical control cabinet.
Utilizing a high-efficiency screw compressor, offering high reliability, low energy consumption, and stable quality.
No air heat exchange occurs between the cabinet air and the ambient air, ensuring the internal air of the electrical cabinet remains clean.
Choose high-volume, high-static-pressure centrifugal fans for better air circulation and heat exchange efficiency.
Reasonable air intake and exhaust design to prevent short-circuiting of air circulation within the cabinet.
The full-touch screen controller can be equipped with alarm and dehumidification functions, and can monitor the operating status of the air conditioner in real-time.
Compact, lightweight, and extremely easy to install, use, and maintain.
Application Scope
Now widely applied in machine tools, data processing, communication, finance, metallurgy, petrochemicals, construction materials, and automotive industries, some large-scale data processing centers and CNC machining centers in China are also widely used. The exceptional efficiency and superior performance of the electrical cabinet air conditioners are gradually gaining recognition and adoption from an increasing number of high-end customers both domestically and internationally.
Selection Examples
The control cabinet surface area is 8㎡ (A=8㎡), with an ambient temperature of 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain the cabinet temperature at 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x（Qr+Qi）=1.2x（150+308）=458W
Choose the air conditioner model YTBC-600.
