Product Specifications

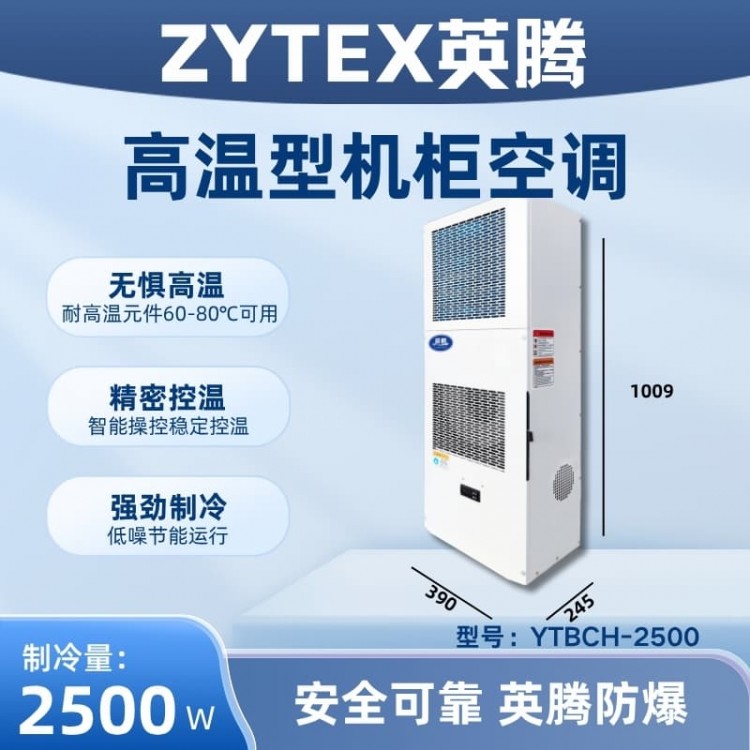

Model: YTBCH-2500
Brand: YingTeng
Cooling Capacity: 2500W
Interior temperature range: 25℃~38℃
External cabinet temperature range: -5℃ to 55℃
System Pressure Resistance: 26bar
Power: 220V/50Hz
Operating Current: 5.9A
Input Power: 1110W
Cabinet Airflow: 610 m³/h
Outdoor Airflow Volume: 1100 m³/h
Internal Protection Rating: IP54
External Protection Rating: IP34
Noise: 65 dB(A)
Weight: 51 kg
Dimensions (width x height x depth): 390*1009*245mm
Description:
Test conditions are: dry bulb humidity of 35°C inside the electrical cabinet, wet bulb temperature of 26°C, and dry bulb temperature of 35°C outside the electrical cabinet.
2. The above product specifications are for standard models. For larger cooling capacity or customized products, please call our company for detailed inquiries.
Product Features
Equipped with temperature control and dehumidification features to ensure ideal temperature and humidity conditions within the electrical control cabinet.
Utilizing high-efficiency scroll-type compressor rotors, offering high reliability, low energy consumption, and stable quality.
There is no air heat exchange between the cabinet air and the ambient air, ensuring the cleanliness of the air inside the electrical cabinet.
Choose high-volume, high-static-pressure centrifugal fans for better air circulation and heat exchange efficiency.
Proper air intake and exhaust design, preventing short-circuiting of air circulation inside the cabinet.
The full-touch screen controller can be equipped with alarm and dehumidification functions, and can monitor the operation status of the air conditioner in real time.
Small in size, lightweight, and extremely easy to install, use, and maintain.
Application Scope
Now widely applied in machine tools, data processing, communication, finance, metallurgy, petrochemical, building materials, and automotive industries, some large-scale data processing centers and CNC machining centers within the country are also widely used. The outstanding effectiveness and excellent performance of the electrical cabinet air conditioner are gradually gaining recognition and adoption by an increasing number of high-end domestic and international clients.
Selection Examples
The control cabinet has a surface area of 8㎡ (A=8㎡), and the ambient temperature is 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain the cabinet temperature at 28°C, the following calculation method for the electrical cabinet air conditioner selection is provided:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x（Qr+Qi）=1.2x（150+308）=458W
Choose the air conditioner model YTBC-600.
