Product Specifications

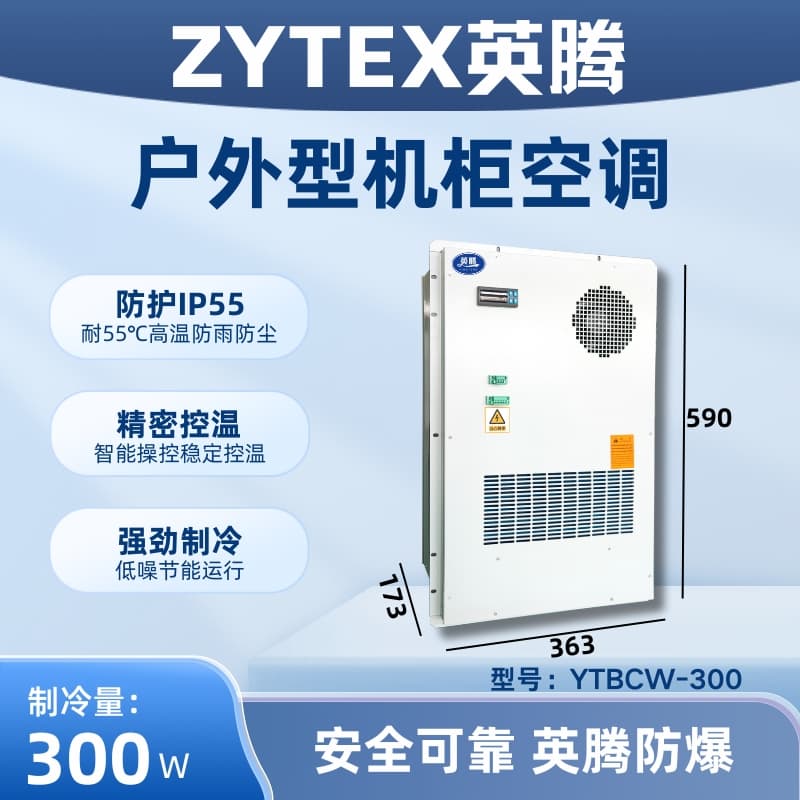

Model: YTBCW-300
Brand: Yingten
Cooling Capacity: 300W
Interior temperature range: 25℃~38℃
External cabinet temperature range: -40℃ to 55℃
System Pressure Resistance: 26 bar
Power: 220V/50Hz
Operating Current: 1.25A
Input Power: 220W
Cabinet air circulation volume: 160 m³/h
Outdoor cabinet air circulation volume: 280 m³/h
Internal Protection Rating: IP54
External Protection Rating: IP55
Noise: 55 dB(A)
Weight: 16 kg
Dimensions (Width x Height x Depth): 353*583*165mm
Description:
Test conditions are 35°C dry bulb temperature and 26°C wet bulb temperature inside the electrical cabinet, and 35°C dry bulb temperature outside the electrical cabinet.
2. The above product specifications are for standard models. For larger cooling capacity or customized products, please call our company for details.
Product Features
Equipped with temperature regulation and dehumidification functions to ensure ideal temperature and humidity requirements within the electrical control cabinet.
Utilizing high-efficiency vortex rotor compressors, offering high reliability, low energy consumption, and stable quality.
There is no air heat exchange between the cabinet air and the ambient air, ensuring the interior air of the electrical cabinet remains clean.
Choose high airflow and high static pressure centrifugal fans for better air circulation and heat exchange efficiency.
Proper air intake and exhaust design, preventing short-circuiting in the cabinet's air circulation.
The full-touch screen controller can be equipped with alarm and dehumidification functions, and can monitor the operating status of the air conditioner in real-time.
Compact, lightweight, and extremely easy to install, use, and maintain.
Application Scope
Extensively applied in fields such as machine tools, data processing, communication, finance, metallurgy, petrochemicals, building materials, and automotive, the domestic large-scale data processing centers and CNC machining centers are also widely utilizing them. The exceptional efficiency and superior performance of the electrical cabinet air conditioners are gradually gaining recognition and adoption by an increasing number of high-end customers both domestically and internationally.
Selection Examples
The control cabinet has a surface area of 8㎡ (A=8㎡), with an ambient temperature of 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain an internal cabinet temperature of 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x（Qr+Qi）=1.2x（150+308）=458W
Choose the air conditioner model YTBC-600.
