Product Specifications

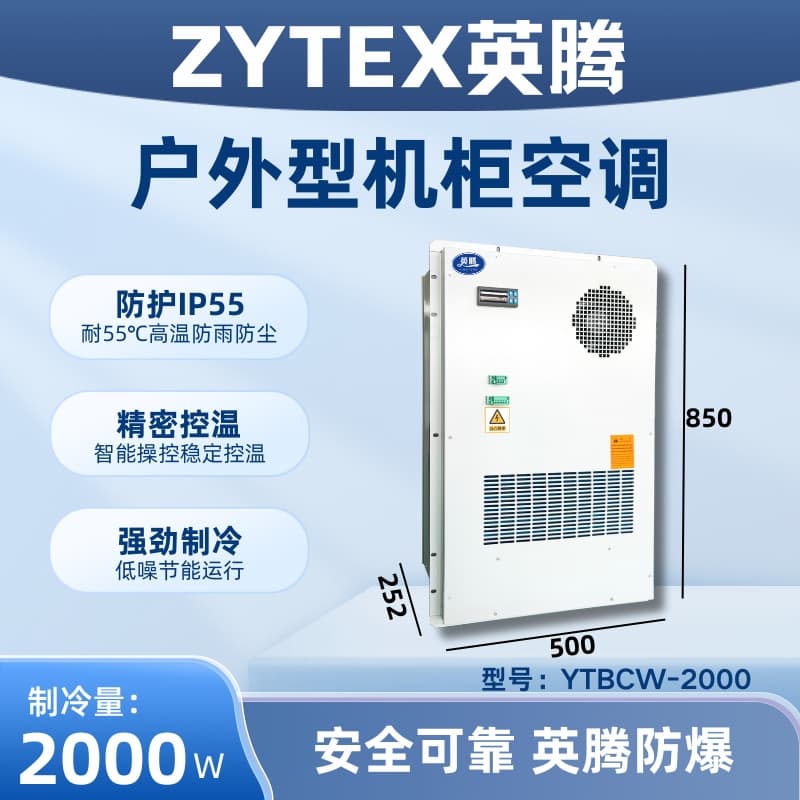

Model: YTBCW-2000
Brand: YingTeng
Cooling Capacity: 2000W
Interior temperature range: 25℃~38℃
External cabinet temperature range: -40℃ to 55℃
System Pressure Resistance: 26bar
Power Supply: 220V/50Hz
Operating Current: 3.38A
Input Power: 745W
Cabinet air circulation volume: 560 m³/h
Cabinet external air volume: 950 m³/h
Internal Protection Rating: IP54
External Protection Rating: IP55
Noise: 68 dB(A)
Weight: 45 kg
Dimensions (Width x Height x Depth): 460*1087*188mm
Description:
Test conditions are 35°C dry bulb temperature and 26°C wet bulb temperature inside the electrical cabinet, and 35°C dry bulb temperature outside the electrical cabinet.
2. The above product specifications are for standard models. For larger cooling capacity or customized products, please call our company for detailed inquiries.
Product Features
Equipped with temperature regulation and dehumidification functions to ensure ideal temperature and humidity requirements within the electrical control cabinet.
Utilizing a high-efficiency scroll-type compressor, offering high reliability, low energy consumption, and stable quality.
No air heat exchange occurs between the cabinet air and the ambient air, ensuring the internal air of the electrical cabinet remains clean.
Choose high airflow, high static pressure centrifugal fans for better air circulation and heat exchange efficiency.
Reasonable air intake and exhaust structure to avoid short-circuiting of air circulation inside the cabinet.
The full touch screen controller can be equipped with alarm function, dehumidification feature, and real-time monitoring of the air conditioner's operating status.
Compact, lightweight, and extremely easy to install, use, and maintain.
Application Scope
Now widely applied in machine tools, data processing, communication, finance, metallurgy, petrochemicals, building materials, and automotive industries, some large-scale data processing centers and CNC machining centers in China are also widely used. The exceptional efficiency and excellent performance of the electrical cabinet air conditioners are gradually gaining recognition and usage from an increasing number of high-end customers both domestically and internationally.
Selection Example
The control cabinet surface area is 8㎡ (A=8㎡), and the ambient temperature is 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain an internal cabinet temperature of 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x（Qr+Qi）=1.2x（150+308）=458W
Choose the air conditioner model YTBC-600.
