Product Specifications

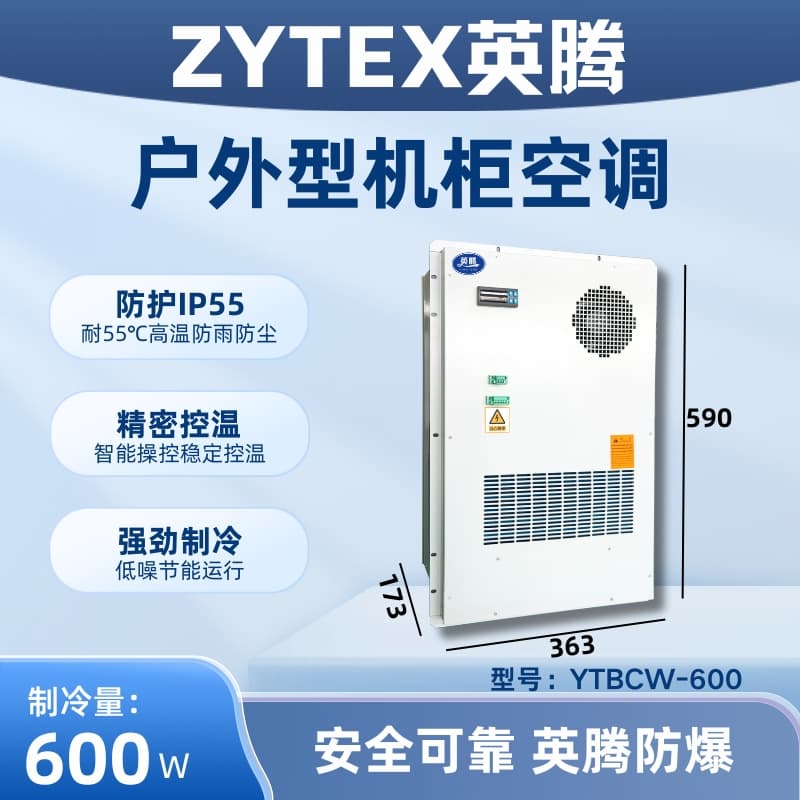

Model: YTBCW-600
Brand: YingTeng
Cooling Capacity: 600W
Internal cabinet temperature range: 25℃~38℃
External cabinet temperature range: -40℃ to 55℃
System Pressure Resistance: 26bar
Power: 220V/50Hz
Working Current: 1.63A
Input Power: 360W
Cabinet air circulation volume: 200 m³/h
Cabinet external air volume: 450 m³/h
Internal Protection Rating: IP54
External Protection Rating: IP55
Noise: 56 dB(A)
Weight: 23 kg
Dimensions (width x height x depth): 455*692*155mm
Description:
Test conditions are 35°C dry bulb temperature and 26°C wet bulb temperature inside the electrical cabinet, and 35°C dry bulb temperature outside the electrical cabinet.
2. The above product specifications are for the standard model. For larger cooling capacity or customized products, please call our company for more details.
Product Features
Equipped with temperature control and dehumidification features, ensuring ideal temperature and humidity requirements within the electrical control cabinet.
Utilizing high-efficiency spiral rotor compressors, offering high reliability, low energy consumption, and stable quality.
The cabinet air and ambient air do not exchange air heat, ensuring the internal air of the electrical cabinet remains clean.
Select high airflow, high static pressure centrifugal fans for efficient heat exchange and large circulation air volume.
Reasonable intake and exhaust air design, avoiding short-circuiting of air circulation inside the cabinet.
The full touch screen controller can feature an alarm function, dehumidification capabilities, and real-time monitoring of the air conditioner's operating status.
Compact, lightweight, and extremely easy to install, use, and maintain.
Application Scope
Extensively applied in fields such as machine tools, data processing, communication, finance, metallurgy, petrochemicals, building materials, and automotive, the large-scale data processing centers and CNC machining centers in China are now widely utilizing them. The exceptional efficiency and superior performance of the electrical cabinet air conditioners are gradually gaining recognition and adoption from an increasing number of high-end domestic and international clients.
Selection Examples
The control cabinet has a surface area of 8㎡ (A=8㎡), with an ambient temperature of 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain an internal cabinet temperature of 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x（Qr+Qi）=1.2x（150+308）=458W
Select the air conditioner model YTBC-600.
