Product Specifications

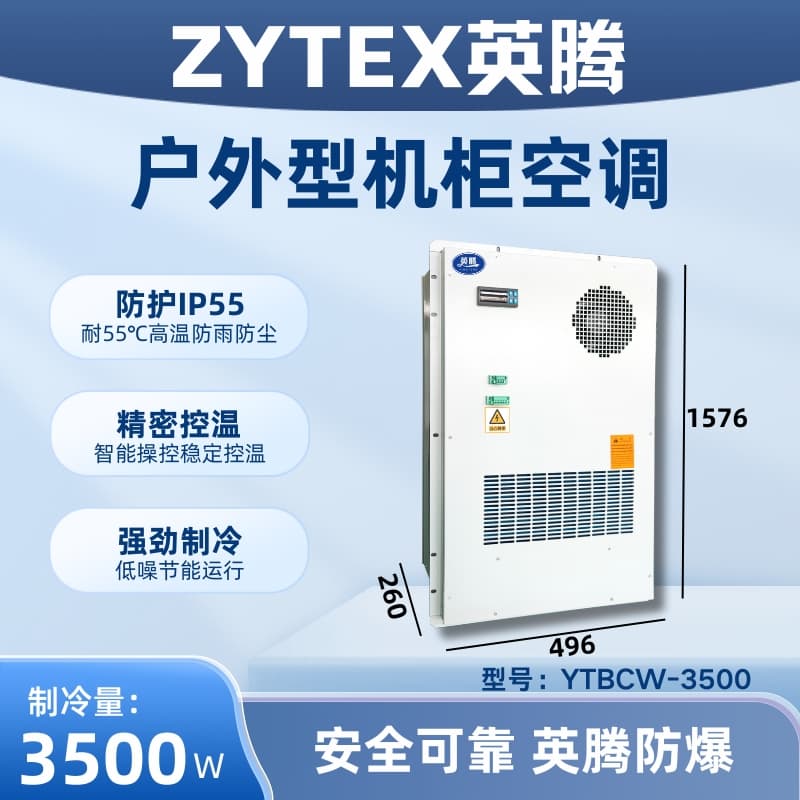

Model: YTBCW-3500
Brand: YingTeng
Cooling Capacity: 3500W
Interior cabinet temperature range: 25℃~38℃
Exterior Temperature Range: -40℃ to 55℃
System Pressure Resistance: 26bar
Power: 220V/50Hz
Operating Current: 6.18A
Input Power: 1360W
Cabinet air circulation volume: 830 m³/h
Outdoor Airflow: 1420 m³/h
Internal Protection Rating: IP54
External Protection Rating: IP55
Noise: 72 dB(A)
Weight: 60 kg
Dimensions (width x height x depth): 550*1208*220mm
Description:
Test conditions are: dry bulb humidity inside the electrical cabinet at 35°C, wet bulb temperature at 26°C, and dry bulb temperature outside the electrical cabinet at 35°C.
2. The above product specifications are for standard models. For larger cooling capacity or customized products, please call our company for details.
Product Features
Equipped with temperature control and dehumidification functions, ensuring ideal temperature and humidity requirements are met within the electrical control cabinet.
Utilizing high-efficiency scroll-type compressor rotors, offering high reliability, low energy consumption, and stable quality.
The cabinet air and ambient air do not exchange air heat, ensuring the cleanliness of the internal air within the electrical cabinet.
Choose high airflow, high static pressure centrifugal fans, with large recirculating air volume and excellent heat exchange effect.
Proper intake and exhaust air structures to prevent short-circuiting of air circulation within the cabinet.
The full-touch screen controller can be equipped with alarm and dehumidification functions, as well as real-time monitoring of the air conditioner's operating status.
Compact, lightweight, and extremely easy to install, use, and maintain.
Application Scope
Extensively applied in various fields such as machine tools, data processing, communication, finance, metallurgy, petrochemicals, building materials, and automotive, the large-scale data processing centers and CNC machining centers in China are now widely using them. The outstanding effectiveness and excellent performance of the electrical cabinet air conditioners are gradually gaining recognition and usage among an increasing number of high-end domestic and international clients.
Selection Examples
The control cabinet surface area is 8㎡ (A=8㎡), with an ambient temperature of 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain an internal cabinet temperature of 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x（Qr+Qi）=1.2x（150+308）=458W
Choose the air conditioner model YTBC-600.
