Product Specifications

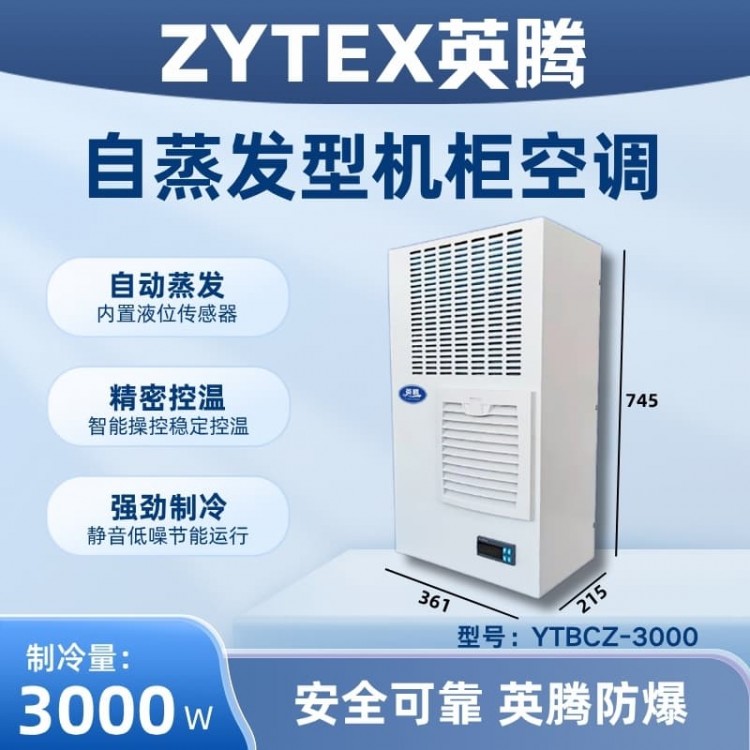

Model: YTBCZ-3000

Brand: YingTeng

Cooling Capacity: 3000W

Interior temperature range: 25℃~38℃

External cabinet temperature range: -5℃ to 45℃

System Pressure Rating: 26 bar

Power: 220V/50Hz

Operating Current: 9.2A

Input Power: 2050W

Cabinet air circulation volume: 610 m³/h

Outdoor cabinet air circulation volume: 1150 m³/h

Internal Protection Rating: IP54

External Protection Rating: IP34

Noise: 70 dB(A)

Weight: 54 kg

Dimensions (Width x Height x Depth): 435*1115*280mm

Description:

Test conditions are: dry bulb humidity inside the electrical cabinet at 35°C, wet bulb temperature at 26°C, and dry bulb temperature outside the electrical cabinet at 35°C.

2. The above product specifications are for standard models. For larger cooling capacity or customized products, please call our company for detailed inquiries.

Product Features

Equipped with temperature regulation and dehumidification features, ensuring ideal temperature and humidity requirements within the electrical control cabinet.

Utilizing high-efficiency scroll-type rotor compressors, offering high reliability, low energy consumption, and stable quality.

The cabinet air has no heat exchange with the ambient air, ensuring the cleanliness of the internal air in the electrical cabinet.

Choose high-volume, high-static-pressure centrifugal fans for better air recirculation and heat exchange efficiency.

Reasonable air intake and exhaust structure to avoid short-circuiting of air circulation inside the cabinet.

The full touch screen controller can feature an alarm function, a dehumidifying function, and real-time monitoring of the air conditioner's operation.

Compact, lightweight, and extremely easy to install, use, and maintain.

Application Scope

Now widely applied in machine tools, data processing, communication, finance, metallurgy, petrochemicals, construction materials, and automotive industries, some large domestic data processing centers and CNC machining centers have also widely adopted them. The superior performance and excellent qualities of the electrical cabinet air conditioners are increasingly being recognized and used by more and more high-end clients both domestically and internationally.

Selection Example

The control cabinet surface area is 8㎡ (A=8㎡), with an ambient temperature of 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain the cabinet temperature at 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:

△T=T0-Ti=35-28=7°C

Qr=5.5xAx△T=5.5x8x7=308W

Qt=1.2x（Qr+Qi）=1.2x（150+308）=458W

Choose the air conditioner model YTBC-600.
