Product Specifications

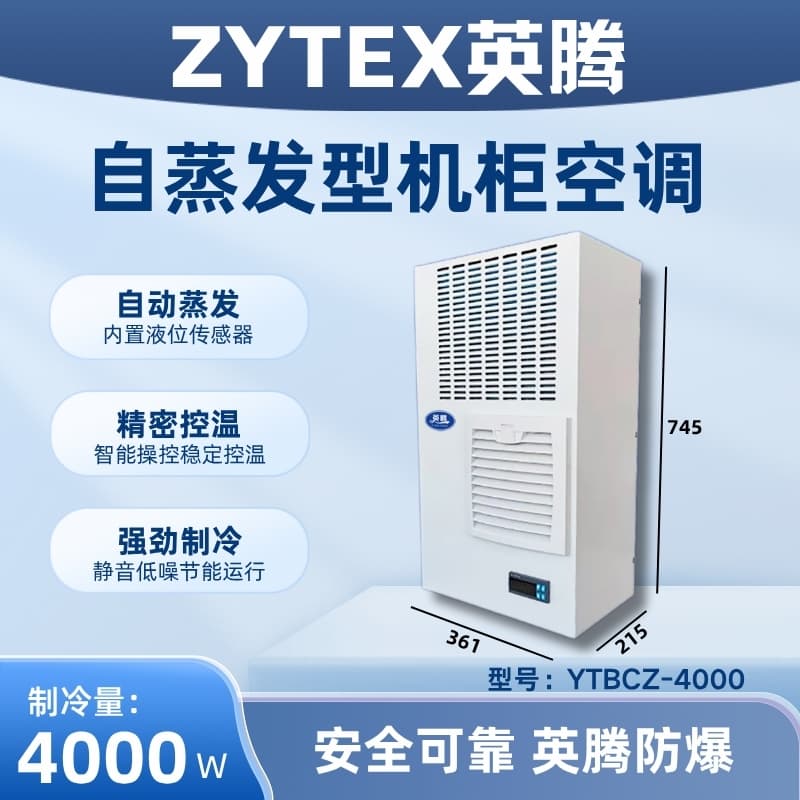

Model: YTBCZ-4000
Brand: YingTeng
Cooling capacity: 4000W
Interior temperature range: 25℃~38℃
External cabinet temperature range: -5℃ to 45℃
System Pressure Rating: 26 bar
Power: 220V/50Hz
Operating Current: 10.5A
Input Power: 2300W
Cabinet air circulation volume: 650 m³/h
Outdoor cabinet air circulation volume: 1160 m³/h
Internal Protection Rating: IP54
External Protection Rating: IP34
Noise: 70 dB(A)
Weight: 72 kg
Dimensions (Width x Height x Depth): 435*1115*280mm
Description:
Test conditions are: dry bulb temperature of 35°C inside the electrical cabinet, wet bulb temperature of 26°C, and dry bulb temperature of 35°C outside the electrical cabinet.
2. The above product specifications are for standard models. For larger cooling capacity or customized products, please call our company for detailed inquiries.
Product Features
Equipped with temperature regulation and dehumidification features, ensuring ideal temperature and humidity requirements within the electrical control cabinet.
Utilizing high-efficiency spiral rotor compressors, offering high reliability, low energy consumption, and stable quality.
No air heat exchange occurs between the cabinet air and the ambient air, ensuring the cleanliness of the internal air within the electrical cabinet.
Choose high airflow, high static pressure centrifugal fans, featuring large recirculating air volume and excellent heat exchange effect.
Proper intake and exhaust air design to prevent short-circuiting of air circulation within the cabinet.
The full-touch screen controller can be equipped with alarm and dehumidification functions, and can monitor the operating status of the air conditioner in real-time.
Compact, lightweight, and extremely easy to install, use, and maintain.
Application Scope
Now widely used in machine tools, data processing, communication, finance, metallurgy, petrochemical, building materials, and automotive industries, some large-scale data processing centers and CNC machining centers in China are also widely utilized. The exceptional efficiency and superior performance of the electrical cabinet air conditioners are gradually gaining recognition and usage from an increasing number of high-end customers both domestically and internationally.
Selection Examples
The control cabinet surface area is 8㎡ (A=8㎡), and the ambient temperature is 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain the cabinet temperature at 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x（Qr+Qi）=1.2x（150+308）=458W
Choose the air conditioner model YTBC-600.
