Product Specifications

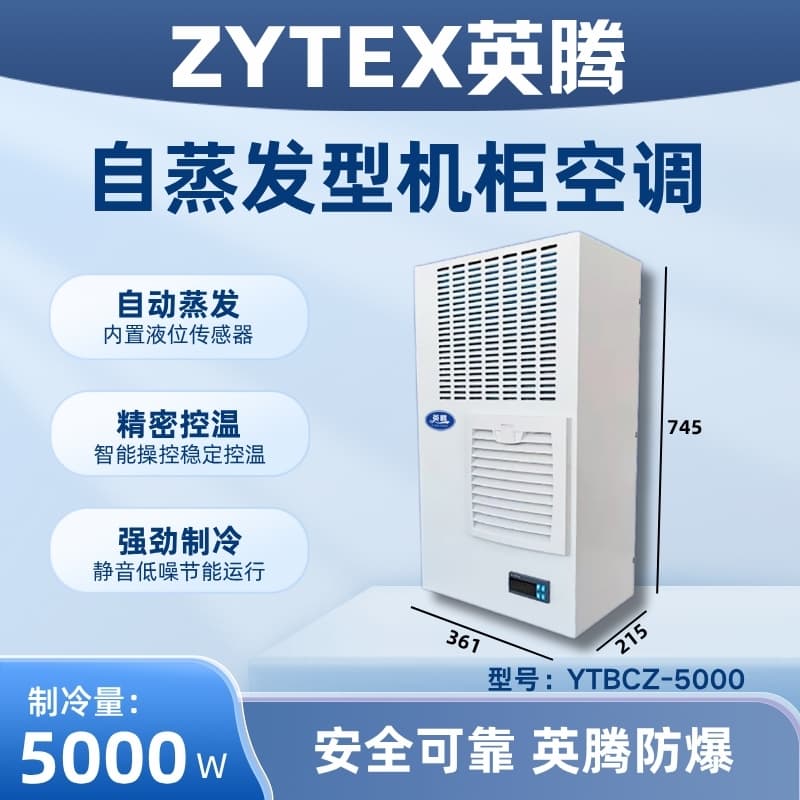

Model: YTBCZ-5000
Brand: YingTeng
Cooling Capacity: 5000W
Interior temperature range: 25℃~38℃
External cabinet temperature range: -5℃ to 45℃
System Pressure Resistance: 26bar
Power: 220V/50Hz
Operating Current: 13A
Input Power: 2650W
Cabinet air circulation volume: 900 m³/h
Outdoor cabinet air circulation volume: 2300 m³/h
Internal Protection Rating: IP54
External Protection Rating: IP34
Noise: 70 dB(A)
Weight: 82 kg
Dimensions (Width x Height x Depth): 475*1300*370mm
Description:
Test conditions are 35°C dry bulb temperature and 26°C wet bulb temperature inside the electrical cabinet, and 35°C dry bulb temperature outside the electrical cabinet.
2. The above product specifications are for standard models. For larger cooling capacity or customized products, please call our company for details.
Product Features
Equipped with temperature control and dehumidification features to ensure ideal temperature and humidity requirements within the electrical control cabinet.
Utilizing a high-efficiency screw-type compressor, featuring high reliability, low energy consumption, and stable quality.
There is no air heat exchange between the cabinet air and the ambient air, ensuring the internal air of the electrical cabinet remains clean.
Choose high airflow, high static pressure centrifugal fans, which offer large recirculating air volume and excellent heat exchange performance.
Reasonable air intake and exhaust structure to avoid short-circuiting of air circulation inside the cabinet.
The full touch screen controller can feature alarm functions, dehumidification capabilities, and real-time monitoring of the air conditioner's operation.
Compact, lightweight, and extremely easy to install, use, and maintain.
Application Scope
Extensively applied in various fields such as machine tools, data processing, communication, finance, metallurgy, petrochemicals, building materials, and automotive, the domestic large-scale data processing centers and CNC machining centers are also widely utilized. The exceptional efficiency and excellent performance of the electrical cabinet air conditioners are gradually gaining recognition and usage from an increasing number of high-end customers both domestically and internationally.
Selection Examples
The control cabinet has a surface area of 8㎡ (A=8㎡) and operates at an environmental temperature of 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain the cabinet temperature at 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x(Qr+Qi)=1.2x(150+308)=458W
Select the air conditioner model YTBC-600.
