Product Specifications

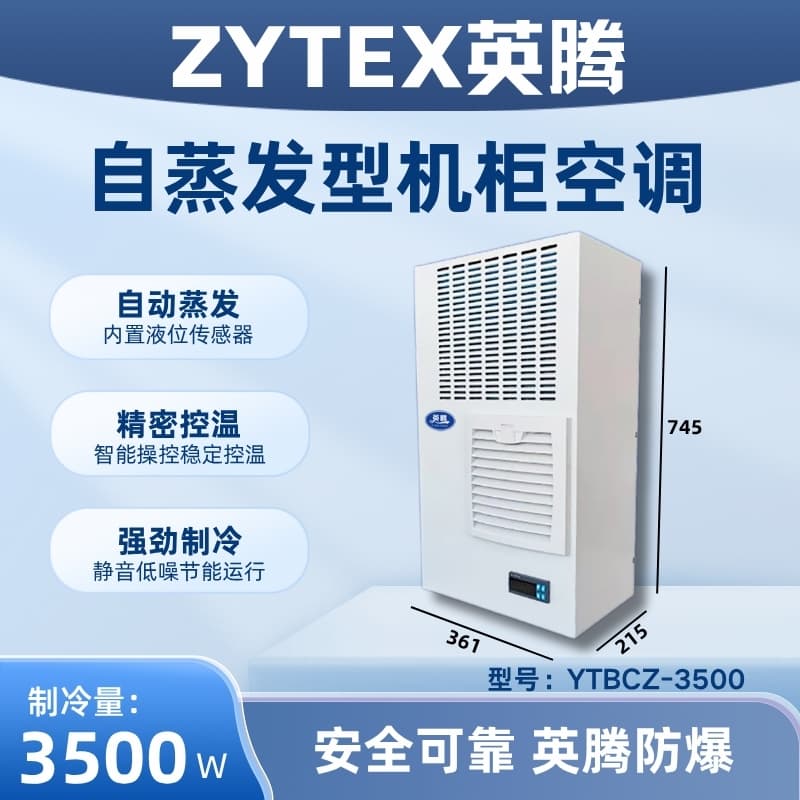

Model: YTBCZ-3500
Brand: YingTeng
Cooling Capacity: 3500W
Interior temperature range: 25℃~38℃
Exterior Temperature Range: -5℃ to 45℃
System Pressure Rating: 26 bar
Power: 220V/50Hz
Operating Current: 9.6A
Input Power: 2100W
Cabinet Air Circulation Volume: 650 m³/h
Outdoor cabinet air volume: 1160 m³/h
Internal Protection Rating: IP54
External Protection Rating: IP34
Noise: 70 dB(A)
Weight: 70 kg
Dimensions (Width x Height x Depth): 435*1115*280mm
Description:
The test operating conditions are: dry bulb temperature of 35°C inside the electrical cabinet, wet bulb temperature of 26°C inside the electrical cabinet, and dry bulb temperature of 35°C outside the electrical cabinet.
2. The above product specifications are for standard models. For larger cooling capacity or customized products, please call our company for detailed inquiries.
Product Features
Equipped with temperature control and dehumidification functions, ensuring ideal temperature and humidity requirements are met within the electrical control cabinet.
Utilizing high-efficiency spiral rotor compressors, offering high reliability, low energy consumption, and stable quality.
The interior air of the cabinet does not exchange heat with the ambient air, ensuring the cleanliness of the internal air within the electrical cabinet.
Choose high-volume, high-static-pressure centrifugal fans for better air circulation and heat exchange efficiency.
Reasonable intake and exhaust air structures prevent short-circuiting in the cabinet air circulation.
The full-touch screen controller can feature an alarm function, dehumidification capability, and real-time monitoring of the air conditioner's operation.
Compact, lightweight, and extremely easy to install, use, and maintain.
Application Scope
Extensively applied in machine tools, data processing, communication, finance, metallurgy, petrochemicals, building materials, and automotive industries, large-scale data processing centers and CNC machining centers in China are also widely utilized. The exceptional efficiency and superior performance of the electrical cabinet air conditioners are gradually gaining recognition and adoption by an increasing number of high-end customers both domestically and internationally.
Selection Example
The control cabinet surface area is 8㎡ (A=8㎡), and the ambient temperature is 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain an internal cabinet temperature of 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x(Qr+Qi)=1.2x(150+308)=458W
Choose the air conditioner model YTBC-600.
