Product Specifications

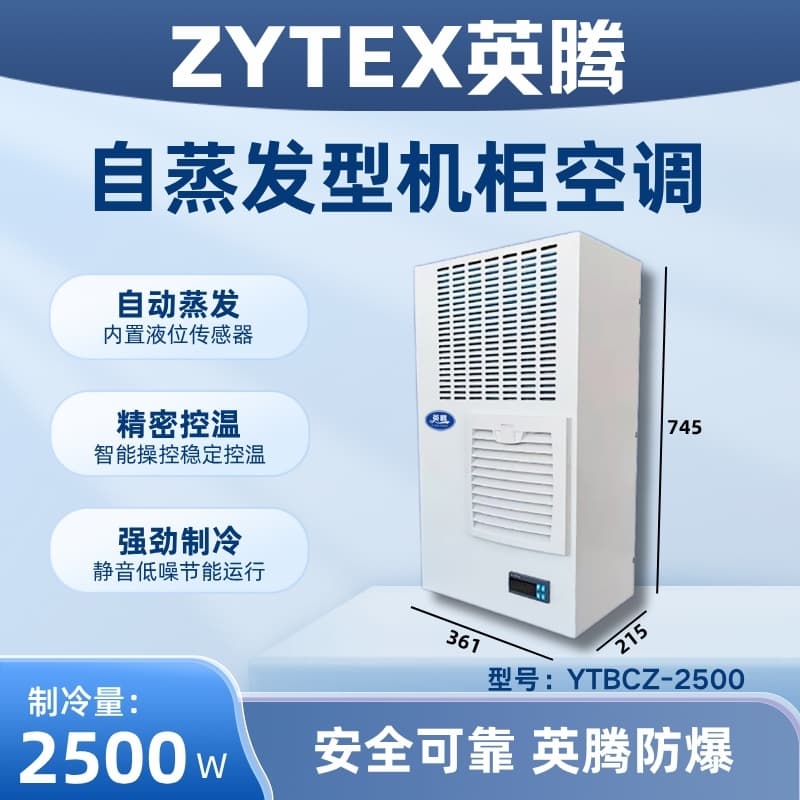

Model: YTBCZ-2500
Brand: YingTeng
Cooling Capacity: 2500W
Internal temperature range: 25℃~38℃
Exterior Temperature Range: -5℃ to 45℃
System Pressure Resistance: 26bar
Power: 220V/50Hz
Operating Current: 7.2A
Input Power: 1560W
Cabinet air circulation volume: 320 m³/h
Outdoor cabinet air volume: 810 m³/h
Ingress Protection Rating: IP54
External Protection Rating: IP34
Noise: 70 dB(A)
Weight: 54 kg
Dimensions (Width x Height x Depth): 390*1009*245mm
Description:
Test conditions are: dry bulb humidity inside the electrical cabinet at 35°C, wet bulb temperature at 26°C, and dry bulb temperature outside the electrical cabinet at 35°C.
2. The above product specifications are for standard models. For larger cooling capacity or customized products, please call our company for detailed inquiries.
Product Features
Equipped with temperature control and dehumidification functions, ensuring ideal temperature and humidity requirements are met within the electrical control cabinet.
Utilizing high-efficiency screw-type compressor, offering high reliability, low energy consumption, and stable quality.
There is no air heat exchange between the cabinet air and the ambient air, ensuring the cleanliness of the internal air in the electrical cabinet.
Select high airflow, high static pressure centrifugal fans for efficient heat exchange and large circulation air volume.
Proper intake and exhaust air design to prevent short-circuiting of air circulation inside the cabinet.
The full-touch screen controller can be equipped with alarm and dehumidification functions, as well as real-time monitoring of the air conditioner's operating status.
Compact, lightweight, and extremely easy to install, use, and maintain.
Application Scope
Extensively applied in machine tools, data processing, communications, finance, metallurgy, petrochemicals, building materials, and automotive industries, some large-scale domestic data processing centers and CNC machining centers are also widely using them. The superior efficiency and excellent performance of the electrical cabinet air conditioners are gradually gaining recognition and usage from an increasing number of high-end clients both domestically and internationally.
Selection Example
The control cabinet has a surface area of 8㎡ (A=8㎡), with an ambient temperature of 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain an internal cabinet temperature of 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x（Qr+Qi）=1.2x（150+308）=458W
Choose the air conditioner model YTBC-600.
