Product Specifications

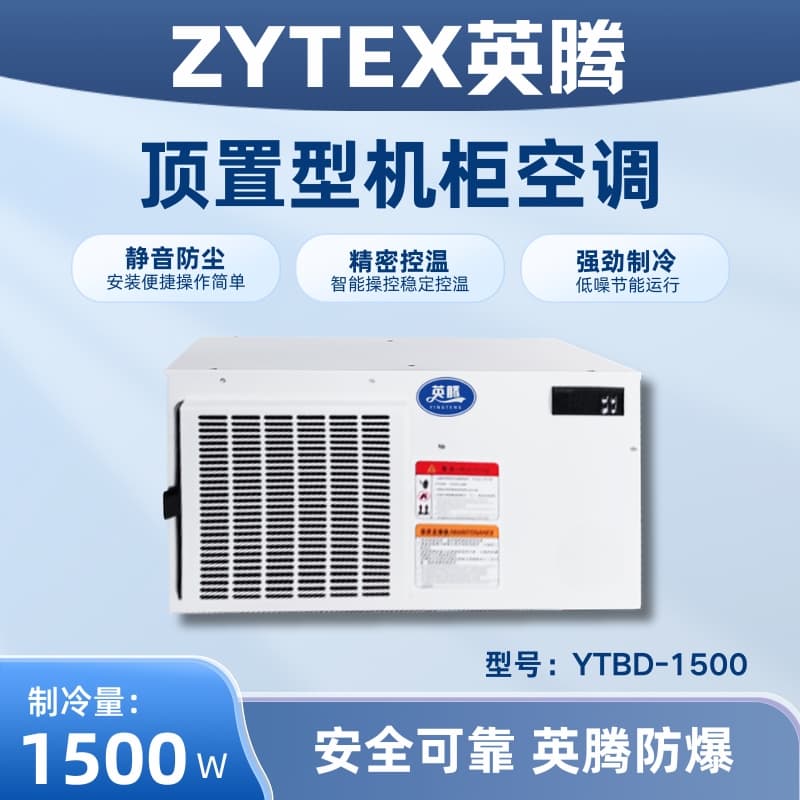

Model: YTBD-1500
Brand: YingTeng
Cooling Capacity: 1500W
Internal temperature range: 25℃~38℃
External cabinet temperature range: -5℃ to 45℃
System Pressure Resistance: 26bar
Power Supply: 220V/50Hz
Operating Current: 4.1A
Input Power: 850W
Cabinet air circulation volume: 380 m³/h
Cabinet External Airflow: 780 m³/h
Ingress Protection Rating: IP54
External Protection Rating: IP34
Noise: 65 dB(A)
Weight: 50 kg
Dimensions (Width x Height x Depth): 600*430*390mm
Description:
Test conditions are: dry bulb humidity inside the electrical cabinet at 35°C, wet bulb temperature at 26°C, and dry bulb temperature outside the electrical cabinet at 35°C.
2. The above product specifications are for the standard model. For larger cooling capacity or customized products, please call our company for detailed inquiries.
Product Features
Equipped with temperature control and dehumidification features, ensuring ideal temperature and humidity requirements for the internal electrical control cabinet.
Utilizing high-efficiency spiral rotor compressors, offering high reliability, low energy consumption, and stable quality.
The air inside the cabinet does not exchange heat with the ambient air, ensuring the cleanliness of the internal air within the electrical cabinet.
Choose high-volume, high-static-pressure centrifugal fans for better air circulation and heat exchange efficiency.
Proper intake and exhaust air design to avoid short-circuiting of air circulation inside the cabinet.
The full touch screen controller can feature an alarm function, a dehumidification function, and real-time monitoring of the air conditioner's operating status.
Compact, lightweight, and extremely easy to install, use, and maintain.
Application Scope
Now widely used in machine tools, data processing, communication, finance, metallurgy, petrochemicals, building materials, and automotive industries, some large-scale data processing centers and CNC machining centers in China are also widely utilized. The exceptional efficiency and excellent performance of the electrical cabinet air conditioners are gradually gaining recognition and usage from an increasing number of high-end customers both domestically and internationally.
Selection Examples
The control cabinet surface area is 8㎡ (A=8㎡), with an ambient temperature of 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain the cabinet temperature at 28°C, the following calculation method for the electrical cabinet air conditioner selection is:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x（Qr+Qi）=1.2x（150+308）=458W
Choose the air conditioner model YTBC-600.
