Product Specifications

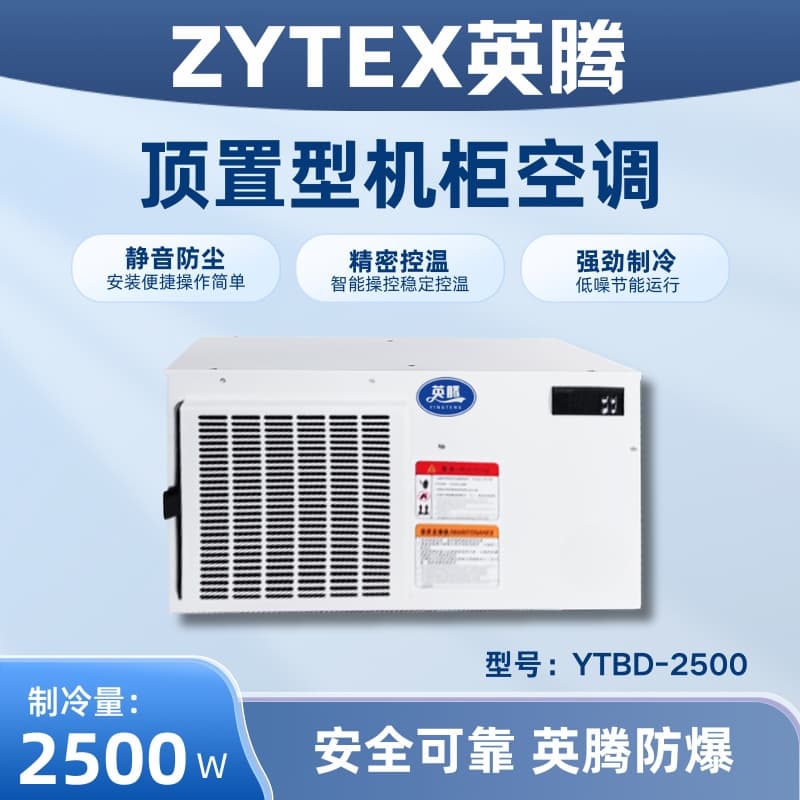

Model: YTBD-2500
Brand: YingTeng
Cooling Capacity: 2500W
Interior temperature range: 25℃~38℃
External cabinet temperature range: -5℃ to 45℃
System Pressure Resistance: 26bar
Power Supply: 220V/50Hz
Operating Current: 6.35A
Input Power: 1320W
Cabinet air circulation volume: 580 m³/h
Exterior cabinet air circulation volume: 950 m³/h
Internal Protection Rating: IP54
External Protection Rating: IP34
Noise: 65 dB(A)
Weight: 62 kg
Dimensions (W x H x D): 650 x 480 x 420 mm
Description:
Test conditions are: dry bulb humidity inside the electrical cabinet at 35°C, wet bulb temperature at 26°C, and dry bulb temperature outside the electrical cabinet at 35°C.
2. The above product specifications are for standard models. For larger cooling capacity or customized products, please call our company for detailed inquiries.
Product Features
Equipped with temperature control and dehumidification features to ensure ideal temperature and humidity requirements within the electrical control cabinet.
Utilizing a high-efficiency screw-type compressor, it boasts high reliability, low energy consumption, and stable quality.
No air heat exchange between the cabinet air and the ambient air, ensuring the internal air of the electrical cabinet remains clean.
Select high-volume, high-static-pressure centrifugal fans for better air circulation and heat exchange efficiency.
Proper intake and exhaust air design, avoiding short-circuiting of air circulation inside the cabinet.
The all-touch screen controller can feature alarm functions, dehumidification capabilities, and real-time monitoring of the air conditioner's operating status.
Compact, lightweight, and extremely easy to install, use, and maintain.
Application Scope
Now widely used in machine tools, data processing, communication, finance, metallurgy, petrochemical, building materials, and automotive industries, some large-scale domestic data processing centers and CNC machining centers have also adopted it extensively. The outstanding effectiveness and excellent performance of the electrical cabinet air conditioner are gradually gaining recognition and usage among an increasing number of high-end domestic and international clients.
Selection Example
The control cabinet has a surface area of 8㎡ (A=8㎡), and the ambient temperature is 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain an internal cabinet temperature of 28°C, the following calculation method for selecting the electrical cabinet air conditioner is recommended:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x（Qr+Qi）=1.2x（150+308）=458W
Choose the air conditioner model YTBC-600.
