Product Specifications

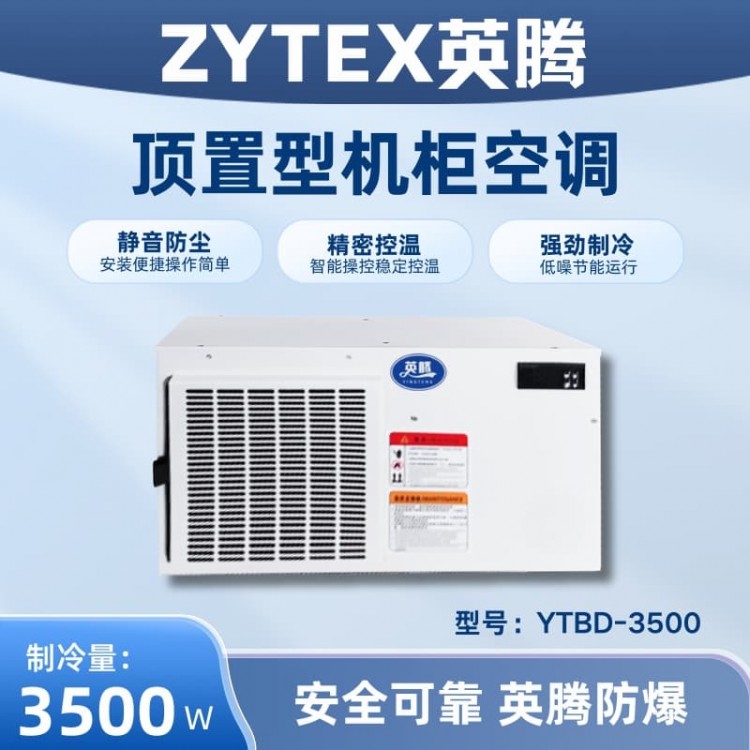

Model: YTBD-3500
Brand: Yingten
Cooling Capacity: 3500W
Internal cabinet temperature range: 25℃~38℃
Exterior Temperature Range: -5℃ to 45℃
System Pressure Rating: 26bar
Power Supply: 220V/50Hz
Operating Current: 8A
Input Power: 1670W
Cabinet air circulation volume: 1000 m³/h
Outdoor cabinet air circulation volume: 1500 m³/h
Internal Protection Rating: IP54
External Protection Rating: IP34
Noise: 70 dB(A)
Weight: 73 kg
Dimensions (Width x Height x Depth): 750*520*500mm
Description:
Test conditions are 35°C dry bulb temperature and 26°C wet bulb temperature inside the electrical cabinet, and 35°C dry bulb temperature outside the electrical cabinet.
2. The above product specifications are for standard models. For larger cooling capacities or customized products, please call our company for detailed inquiries.
Product Features
Equipped with temperature control and dehumidification functions, ensuring ideal temperature and humidity requirements are met within the electrical control cabinet.
Utilizing high-efficiency vortex rotor compressors, offering high reliability, low energy consumption, and stable quality.
No air heat exchange occurs between the interior of the cabinet and the ambient air, ensuring the internal air of the electrical cabinet remains clean.
Choose high-volume, high-static-pressure centrifugal fans for better air circulation and heat exchange efficiency.
Reasonable air intake and return design, avoiding short-circuiting in the cabinet air circulation.
The all-touch screen controller can be equipped with alarm and dehumidification functions, and can monitor the operating status of the air conditioner in real-time.
Compact, lightweight, and extremely easy to install, use, and maintain.
Application Scope
Now widely applied in machine tools, data processing, communication, finance, metallurgy, petrochemicals, building materials, and automotive industries, some large-scale data processing centers and CNC machining centers in China are also widely used. The exceptional efficiency and excellent performance of the electrical cabinet air conditioner are gradually gaining recognition and usage from an increasing number of high-end customers both domestically and internationally.
Selection Example
The control cabinet has a surface area of 8㎡ (A=8㎡), with an ambient temperature of 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain an internal cabinet temperature of 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x（Qr+Qi）=1.2x（150+308）=458W
Choose the air conditioner model YTBC-600.
