Product Specifications

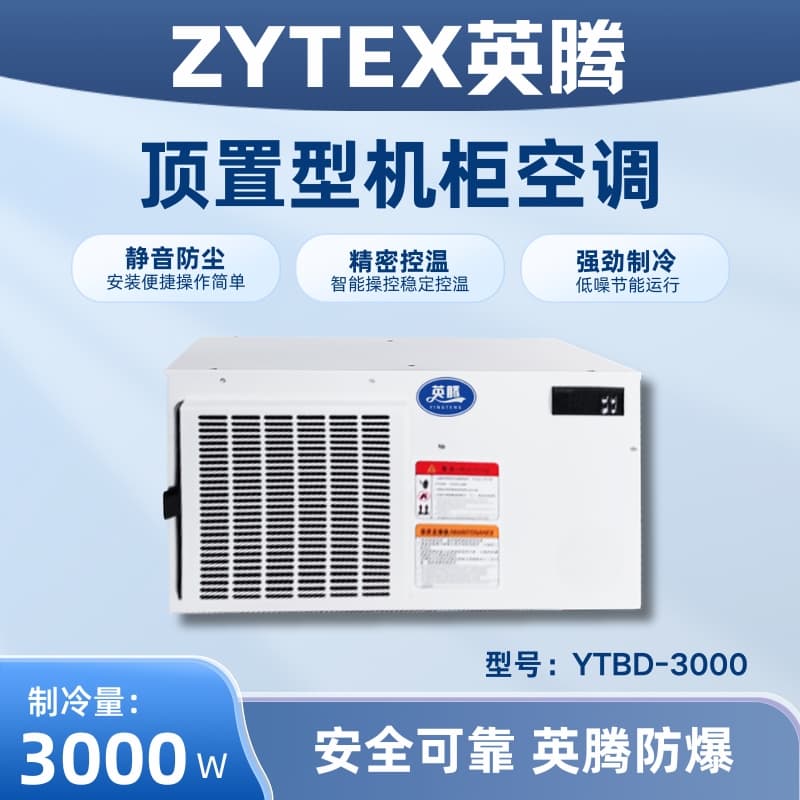

Model: YTBD-3000
Brand: YingTeng
Cooling Capacity: 3000W
Internal cabinet temperature range: 25℃~38℃
External cabinet temperature range: -5℃ to 45℃
System Pressure Resistance: 26bar
Power: 220V/50Hz
Operating Current: 6.8A
Input Power: 1420W
Cabinet air circulation volume: 1000 m³/h
Outdoor air circulation volume: 1500 m³/h
Internal Protection Rating: IP54
External Protection Rating: IP34
Noise: 70 dB(A)
Weight: 70 kg
Dimensions (Width x Height x Depth): 750*520*500mm
Description:
Test conditions are: dry bulb humidity inside the electrical cabinet at 35°C, wet bulb temperature at 26°C, and dry bulb temperature outside the electrical cabinet at 35°C.
2. The above product specifications are for standard models. For larger cooling capacity or customized products, please call our company for details.
Product Features
Equipped with temperature control and dehumidification functions to ensure ideal temperature and humidity requirements inside electrical control cabinets:
Equipped with a high-efficiency vortex-type rotor compressor, offering high reliability, low energy consumption, and stable quality.
The interior air of the cabinet does not exchange heat with the ambient air, ensuring the cleanliness of the air inside the electrical cabinet.
Choose high-volume, high-static-pressure centrifugal fans for better air circulation and heat exchange efficiency.
Proper air intake and exhaust design to prevent short-circuiting within the cabinet due to air circulation.
The full-touch screen controller can be equipped with alarm and dehumidification functions, as well as real-time monitoring of the air conditioner's operating status.
Compact, lightweight, and extremely easy to install, use, and maintain.
Application Scope
Now widely applied in machine tools, data processing, communication, finance, metallurgy, petrochemical, building materials, and automotive industries, some large-scale data processing centers and CNC machining centers in China are also widely utilized. The superior efficacy and excellent performance of the electrical cabinet air conditioners are gradually gaining recognition and adoption by an increasing number of high-end domestic and international clients.
Selection Example
The control cabinet has a surface area of 8㎡ (A=8㎡), with an ambient temperature of 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain an internal cabinet temperature of 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x（Qr+Qi）=1.2x（150+308）=458W
Select the air conditioner model YTBC-600.
