Product Specifications

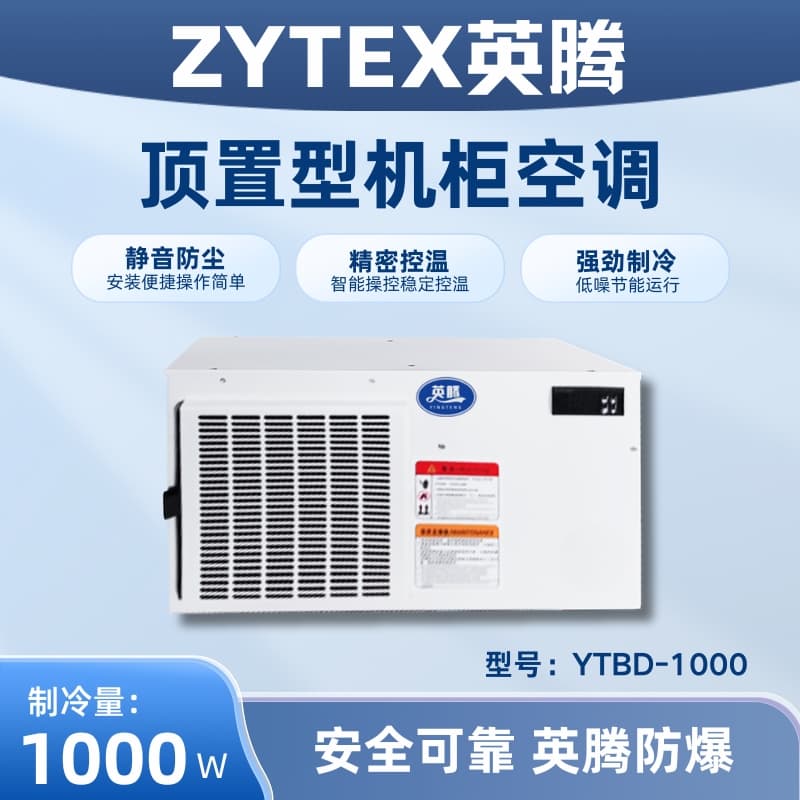

Model: YTBD-1000
Brand: YingTeng
Cooling capacity: 1000W
Interior temperature range: 25℃~38℃
Exterior Temperature Range: -5℃ to 45℃
System Pressure Resistance: 26bar
Power: 220V/50Hz
Operating Current: 3.3A
Input Power: 685W
Cabinet air circulation volume: 380 m³/h
Exterior cabinet air circulation volume: 780 m³/h
Internal Protection Rating: IP54
External Protection Rating: IP34
Noise: 65 dB(A)
Weight: 45 kg
Dimensions (width x height x depth): 600*430*390mm
Description:
Test conditions are as follows: Dry bulb temperature inside the electrical cabinet is 35°C, wet bulb temperature is 26°C, and dry bulb temperature outside the electrical cabinet is 35°C.
2. The above product specifications are for the standard model. For larger cooling capacity or customized products, please call our company for more information.
Product Features
Equipped with temperature control and dehumidification functions, ensuring ideal temperature and humidity requirements within the electrical control cabinet.
Utilizing a high-efficiency screw-type compressor, offering high reliability, low energy consumption, and stable quality.
No air heat exchange occurs between the cabinet air and the ambient air, ensuring the cleanliness of the internal air within the electrical cabinet.
Choose high-volume, high-static-pressure centrifugal fans for better air circulation and heat exchange efficiency.
Reasonable air intake and exhaust structure to prevent short-circuiting of air circulation inside the cabinet.
The full-touch screen controller can be equipped with alarm and dehumidification functions, as well as real-time monitoring of the air conditioner's operating status.
Compact, lightweight, and extremely easy to install, use, and maintain.
Application Scope
Now widely applied in machine tools, data processing, communication, finance, metallurgy, petrochemical, building materials, and automotive industries, some large-scale data processing centers and CNC machining centers in China are also widely used. The exceptional efficiency and superior performance of the electrical cabinet air conditioners are gradually gaining recognition and usage from an increasing number of high-end customers both domestically and internationally.
Selection Example
The control cabinet has a surface area of 8㎡ (A=8㎡), with an ambient temperature of 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain an internal cabinet temperature of 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x（Qr+Qi）=1.2x（150+308）=458W
Choose the air conditioner model YTBC-600.
