Product Details
Product Description

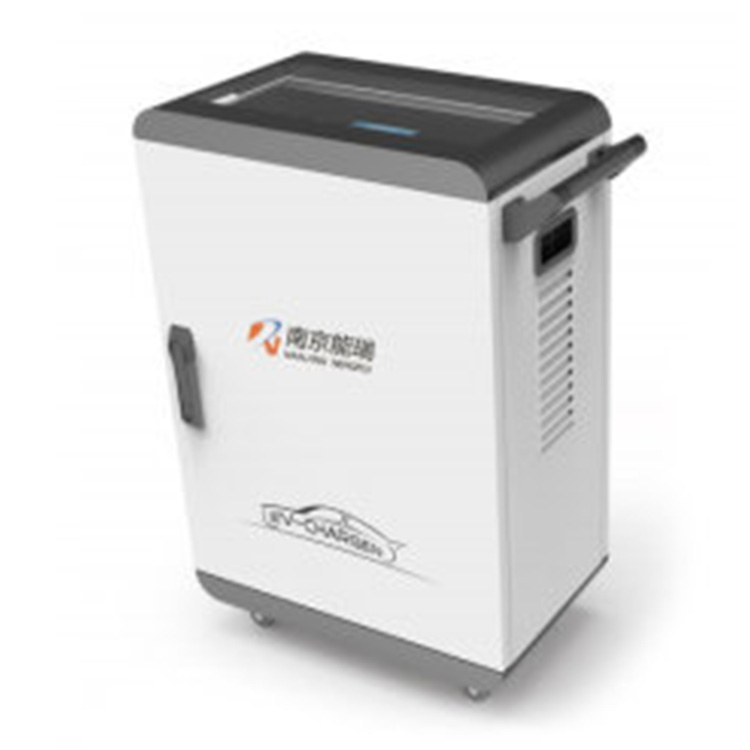

This product is a 6.6kW portable single-gun DC charger, offering reliable, safe, and quick DC charging services to meet the charging needs of electric vehicles. The product features a portable suitcase design, with compact size, ease of carrying, and no installation required—it can be charged with a single-phase power source. This design fully achieves on-demand charging and simplifies the charging process. The product boasts comprehensive protection functions, and the charger is equipped with an emergency stop mechanism. In case of abnormal charging or malfunctions, charging can be manually or automatically stopped to ensure the safety of users and the vehicle during the charging process.
Key Features
· On-the-go Charging: Features a portable suitcase design for easy transport, and can be charged anywhere with single-phase power, achieving on-demand charging.
·Simple and easy to use: With a button to start and stop, the charging process is simplified to the maximum extent, achieving "plug in - button start - charge - button stop - pull out", making it convenient for users.
· Comprehensive Protection Functions: Equipped with features for short circuit, overload, overvoltage, undervoltage, leakage, and plug insertion/extraction protection, offering enhanced safety and reliability.
·Real-time Display Function: Displays real-time charging voltage, current, charged amount, and charging time, enabling users to have more comprehensive charging information.
· Strict Protection Rating: Full-body waterproof and dustproof design, with IP54 protection rating, meeting outdoor operation requirements.
Technical Specifications
Performance Parameters | Item | Parameters |
Appearance structure | Shell Material | Metal |
Product Dimensions | 500*300*710 (Length x Depth x Height, Unit: mm) | |
Screen Size | 4.3 inches | |
Product Quality | 25kg | |
Gunsight Length | 5m (optional) | |
Product Colors | Cream white | |
Electrical Parameters | Rated Power | 6.6kW |
Rated Input Voltage | 220V±20% | |
Rated Output Voltage | 750V | |
Rated Output Current | 9.3A | |
Maximum Output Current | 67A | |
Standby Power Consumption | 5W | |
Impact pressure resistance | 12kV | |
Power frequency withstand voltage | 3.5kV | |
Output Efficiency | ≥94% | |
Output Format | Integrated Single Gun | |
Lightning protection device | / | |
Product Noise | <65dB | |
Environmental Adaptability | Operating Temperature | -25℃-55℃ |
Working Altitude | ≤2000m | |
Protection Level | P54 | |
Cooling Method | Forced air-cooling |
Application Scenarios
Automotive 4S shops, repair shops, and other locations with single-phase power supply.
