Product Details
Product Description

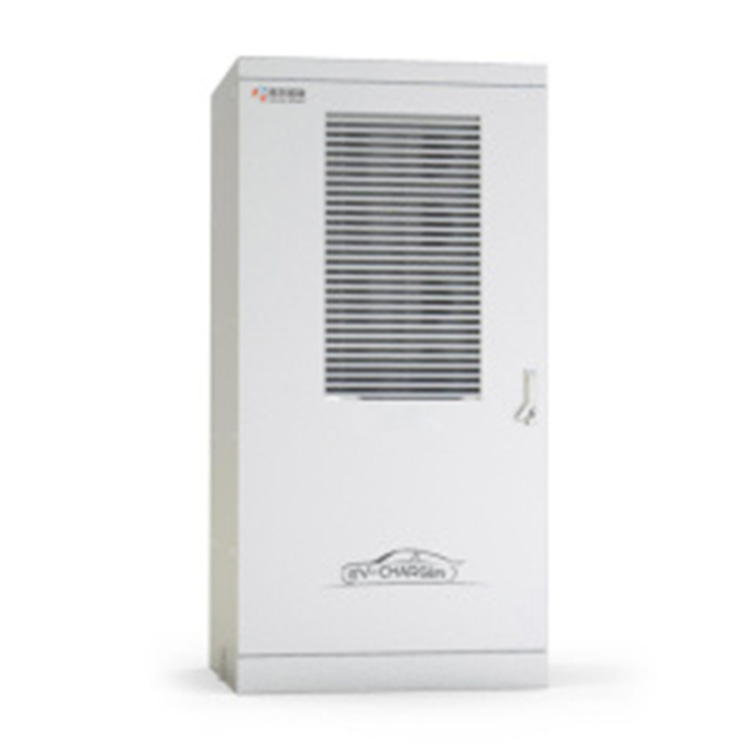

This product is a 300kW charging stack with five single-output interface charging terminals. The cabinet supports a power range of 160-300kW and can be configured with four or five single-output interface charging terminals. With four charging terminals, the maximum power output reaches 240kW, and with five terminals, it reaches 300kW. It features a split structure design, where charging power is centrally configured and multiple charging ports share the power. It has the capability to协同 control multiple charging ports for charging using various strategies.
Key Features
· Fast Charging: With an electric car's 100 km consumption at 14kWh, it takes just 14 minutes to charge 5 vehicles for a 100 km range.
· Dynamic Power Allocation: Adjusts the power output of each charging terminal dynamically according to the user's charging needs, ensuring the user's charging requirements.
· Compact equipment footprint: The charging terminal has a small footprint, suitable for installations with limited space.
· Diverse Charging Modes: Offers four charging options – by time, by battery capacity, by amount, and automatic full charge – to meet various user charging needs; · Flexible Payment Methods: Supports dedicated IC payment, mobile app payment, QR code payment, and account payment for a seamless payment experience.
Technical Specifications
Performance Parameters | Item | Please provide the Chinese content to be translated. Numbers |
Appearance and structure | Shell Material | Metal |
Product Dimensions | 900*800*1800/500*240*1600 (complete unit/complete pile) | |
Screen Size | 7 inches | |
Product Quality | 300kg (Weight Range: 200kg-300kg) | |
Gun line length | 5m (optional) | |
Installation Method | On-site installation | |
Product Color | White, Grey | |
Electrical Parameters | Rated Power | 300kW (Power range supported: 160kW-300kW) |
Rated Input Voltage | 380V±20% | |
Rated Output Voltage | 750V | |
Rated Output Current | 400A (Supports current range: 213A-400A) | |
Maximum single-barrel output current | 250A | |
Standby Power Consumption | 20W | |
Impact Pressure Resistance | 12kV | |
Power frequency withstand voltage | 3.5kV | |
Leakage Current | ≤30mA | |
Output Format | One-to-five (supports one-to-four or one-to-five) | |
Lightning protection device | Grade C | |
Environmental Adaptability | Product Noise | ≤65dB |
Operating Temperature | -25℃-55℃ | |
Working Altitude | ≤2000m | |
Protection Grade | P54 |
Application Scenario
Large charging stations, highway power stations, cargo terminal sites, bus stations, logistics stations, and restricted installation sites.
