Product Details
Product Description

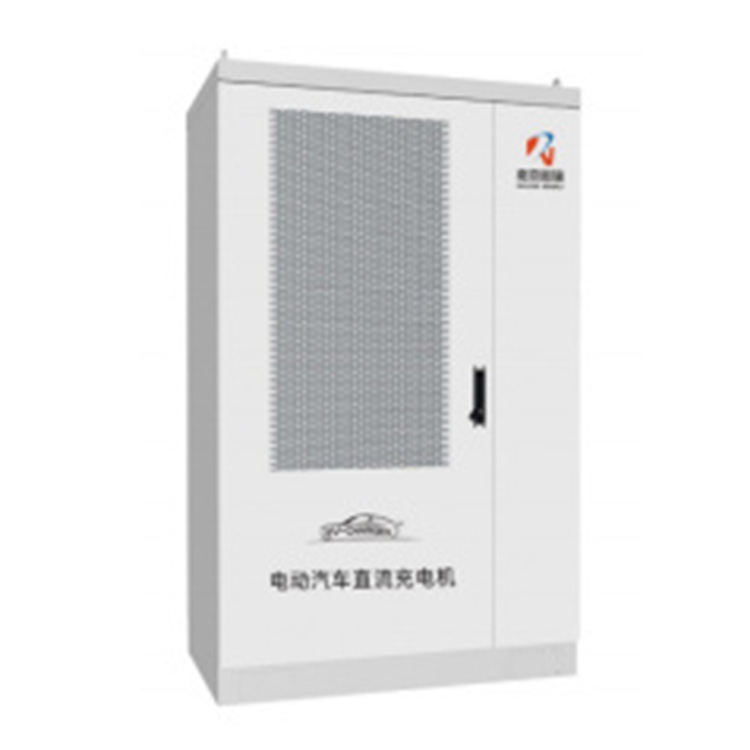

This product is a 480kW charging stack, equipped with eight single-output charging terminals. The cabinet supports a power range of 320-480kW and can be configured with either four dual-output or eight single-output charging terminals, with a maximum power output of 480kW. It features a split-structure design, where charging power is centrally configured and multiple charging ports share the power, enabling collaborative control of multiple charging ports to charge according to various charging strategies.
Key Features
· Fast Charging: At a rate of 14kWh per 100km for electric vehicles, it takes only 14 minutes to charge 8 cars for a 100km range.
· Dynamic Power Allocation: Adjusts the power output of each charging terminal dynamically based on the user's charging needs, ensuring the user's charging requirements are met.
· The equipment occupies a small footprint: The charging terminal has a compact design, suitable for installation in areas with limited space.
· Diverse Charging Modes: Offers four charging modes including time-based, capacity-based, amount-based, and automatic full charge, catering to various user charging needs.
Flexible payment methods: Support dedicated IC payment, mobile app payment, QR code payment, and account payment for seamless payment experience.
Technical Specifications
Performance Parameters | Item | Reference Numbers |
Appearance and structure | Shell Material | Gold |
Product Dimensions | 1200x800x1800/500x240x1600 (complete unit/complete pile) | |
Screen Size | 7 inches | |
Product Quality | 400kg (weight range: 300kg - 400kg) | |
GUN LINE LENGTH | 5m (optional) | |
Installation Method | On-site installation | |
Product Color | White Grey | |
Electrical Parameters | Rated Power | 480kW (Power range supported: 320kW-480kW) |
Rated Input Voltage | 380V±20% | |
Rated Output Voltage | 750V | |
Rated Output Current | 640A (Current Range Supported: 400A-640A) | |
Maximum single gun output current | 250A | |
Standby Power Consumption | 20W | |
Impact Pressure Resistance | 12kV | |
Power frequency voltage withstand | 3.5kV | |
Leakage Current | ≤30mA | |
Output Format | One-to-Eight (supports One-to-Four or One-to-Eight) | |
Lightning protection device | C Grade | |
Environmental Adaptability | Product Noise | ≤65dB |
Operating Temperature | -25℃-55℃ | |
Working Altitude | ≤2000m | |
IP rating | P54 |
Application Scenarios
Large charging stations, highway power stations, cargo terminal stations, bus stations, logistics stations, and installations with restricted site access.
