Product Details
Product Introduction

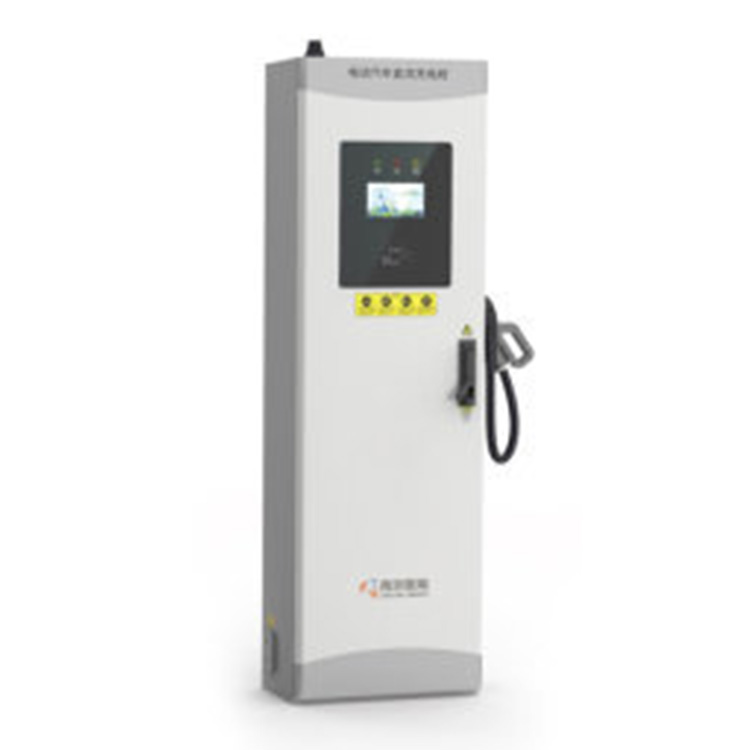

This product is a DC charging terminal with a 250A output current, designed for use with our high-power charging stacks. It provides clients with reliable, safe, and rapid DC charging services, meeting the charging needs of electric vehicles. The product offers multiple communication interfaces for real-time communication with the station-level monitoring center or operations management center, uploading real-time charging information. It features self-checking capabilities and is equipped with an emergency stop button on the charger body. In the event of charging anomalies or malfunctions, charging can be manually or automatically stopped to ensure the safety of both users and vehicles during the charging process.
Key Features
· Accurate Measurement and Billing: Equipped with an intelligent energy meter certified by CMC and the national grid, the measurement accuracy reaches Class I for active power.
Flexible payment methods: Supports four payment options including dedicated IC payment, mobile app payment, QR code payment, and account payment, achieving a seamless payment experience.
· Diverse Charging Modes: Offers four charging modes including time-based, capacity-based, amount-based, and automatic full charge to meet various user charging needs.
· Comprehensive Protection Features: Equipped with multiple protection functions including short circuit, overload, overvoltage, undervoltage, leakage, lightning protection, and plug insertion/extraction, ensuring enhanced safety and reliability.
· Strict protection grade: Whole machine waterproof and dustproof design, protection grade IP55, meeting outdoor operation requirements.
· Real-time display features: charged amount, charging time, current electricity price, charging cost, and operational status.
· Supports online updates: Program updates and upgrades via remote terminal.
Technical Specifications
Performance Parameters | Item | Specs |
Appearance structure | Shell Material | Metal |
Product Dimensions | 500 x 240 x 1600 (Length x Depth x Height, Unit: mm) | |
Screen Size | 7 inches | |
Product Quality | 100kg | |
Gun wire length | 5m (optional) | |
Installation Method | On-site installation | |
Product Color | Off-white | |
Electrical Parameters | Rated Input Voltage | 750V |
Rated Output Voltage | 750V | |
Rated Output Current | 250A | |
Standby Power Consumption | 5W | |
Impact Pressure Resistance | 12kV | |
Power frequency withstand voltage | 3.5kV | |
Power Factor | 0.99 | |
Output Efficiency | ≥94% | |
Output Format | Integrated Single Gun | |
Lightning protection device | Grade C | |
| Environment Adaptability | Operating Temperature | -25℃-55℃ |
Working Altitude | ≤2000m | |
IP rating | P55 |
Application Scenarios
Large charging stations, cargo terminal yards, bus depots, community parking lots, large shopping malls, roadside parking areas, etc.
