Product Details
Product Description
This product is a 3600kW 12-bay pure electric intelligent heavy-duty truck charging station, supporting 4-bay/8-bay/12-bay configurations. It can flexibly be equipped with one to twelve charging sets, providing customers with reliable, safe, and rapid DC charging services to meet the charging needs of electric heavy-duty trucks. The product offers various communication interfaces for real-time communication with the station-level monitoring center or operation management center, uploading real-time charging information. It features an automatic self-check function, which immediately stops charging upon detecting anomalies or faults, ensuring the personal and vehicle safety of users during the battery swapping process.

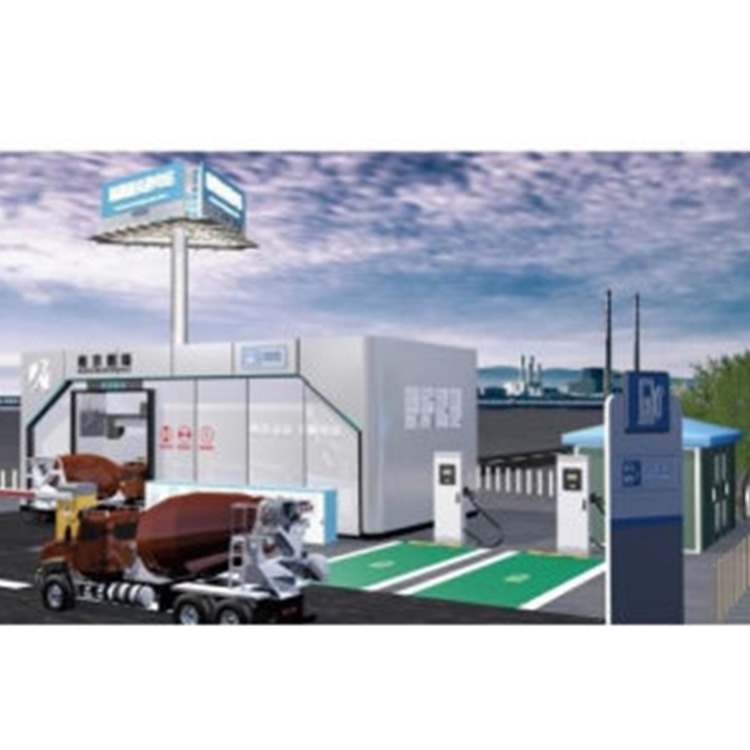

Case Showcase
Technical Specifications
Performance Parameters | Item | Please provide the Chinese content to be translated. Numbers |
Appearance and structure | Shell Material | Metal |
Product Dimensions | 550*240*1454 (Length*Depth*Height, Unit: mm) | |
Screen Size | 7 inches | |
Product Quality | 40kg | |
Gunline Length | 5m (optional) | |
Installation Method | Wall Mount Installation / Pillar Installation | |
Product Color | White Grey | |
Electrical Parameters | Rated Power | 3600kW (Power range supported: 1200-3600kW) |
Rated Input Voltage | 380V±20% | |
Rated Output Voltage | 750V | |
Number of output terminal warehouses | 4/8/12 Warehouses (Standard Station) | |
Maximum single-bay output current | 500A | |
Output Efficiency | ≥94% | |
Rechargeable and Swap Battery Mode | Charge battery box/Charge vehicle | |
Standby Power Consumption | ≤3000W | |
Impact Resistance | 12kV | |
Power frequency withstand voltage | 3.5kV | |
Output Format | Dual Charging in One Warehouse | |
Lightning protection device | Grade C | |
Environmentally adaptable | Product Noise | ≤65dB |
Operating Temperature | -25℃-55℃ | |
Working Altitude | ≤2000m | |
Ingress Protection (IP) rating | P54 |
Application Scenario
City waste soil truck transportation stations, port container heavy-duty truck charging stations, mine ore transportation heavy-duty truck charging stations, etc.
