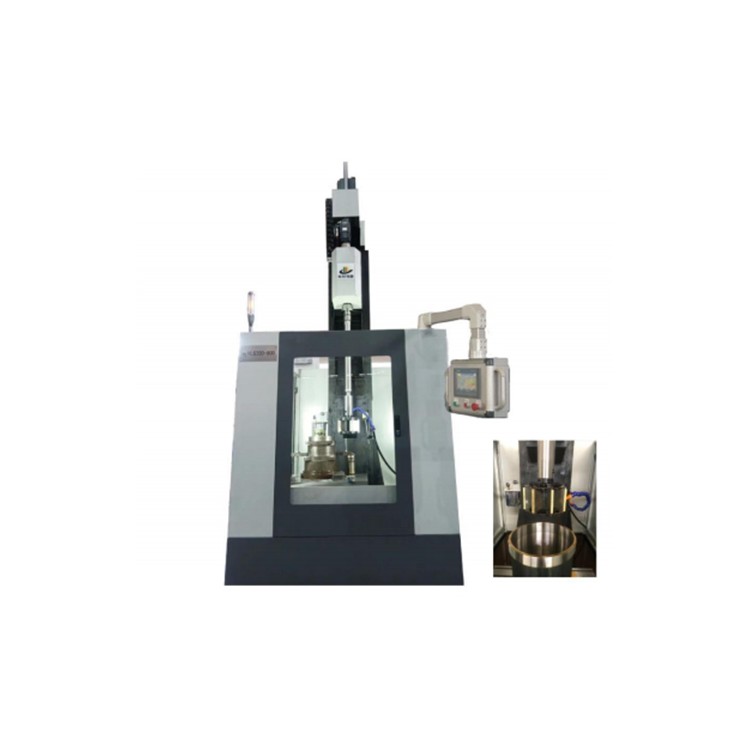

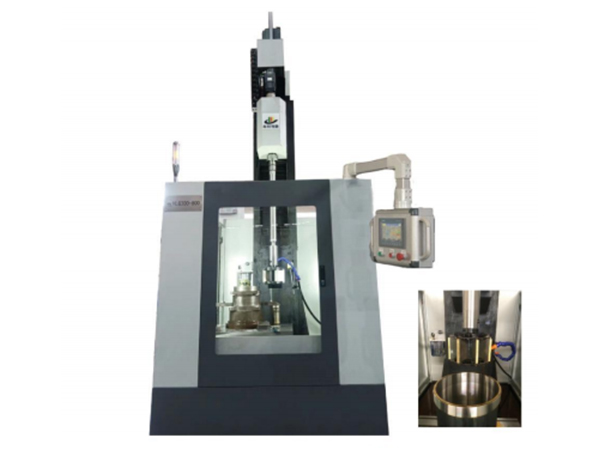

I. Equipment Specifications
| Serial Number | Project | Name | Parameters |
| 1 | Structural Form | Number of shaft ends: | 1 shaft |
| Workstation: | 1 station | ||
| Desk Top Size: | Z-axis 550mm x Y-axis 500mm | ||
| Workbench Load: | 500kg | ||
| 2 | Spindle Mechanism | Control Method: | Variable Frequency Motor + Synchronous Belt |
| Spindle Motor: | 4KW | ||
| Machining Hole Diameter Range: | Φ30 - Φ300mm (Optional for out-of-range sizes) | ||
| Transmission Range: | 50-600 rpm (Continuous variable speed) | ||
| 3 | Cylinder mechanism | Control Method: | Servo Motor + Ball Screw |
| Stroke Speed MAX: | 28m/min | ||
| Stroke Length MAX: | 800mm | ||
| 4 | Feeding Mechanism | Control Method: | Servo Motor + Ball Screw |
| Feeding Type: | Constant Feed Rate | ||
| Feeding Resolution: | 0.1um | ||
| 5 | Other | Equipment Weight: | Approximately 7 tons |
| Equipment dimensions (Length x Width x Height): | 1500x1750x3500 | ||
| Noise Standard: | Under standard factory conditions, less than 75 decibels under continuous peak loading | ||
| Power Supply: | Three-phase AC: 380V 50Hz | ||
| Environmental Conditions: | Temperature -10~+45°C Temperature < 72% |
Section II: Equipment Processing Precision
Circularity: ≤10um/Φ200mm
2. Straightness: ≤15um/300mm
3. Roughness: ≤Ra0.2μm.
Section 3: Key Description of Equipment
All machine tool base components are made of high-quality cast iron with high strength and undergo overall stress relief treatment.
2. Advanced touch screen control panel, simple and convenient to adjust settings, allowing operators to handle machine tools more intuitively.
3. Utilizing the "Siemens" control system, precise control ensures excellent shape accuracy, mesh angle, surface roughness, and dimensional consistency.
4. The machine tool is equipped with a complete cooling and filtering system, primarily composed of "magnetic separator + belt filter + oil cooler," with a filtration accuracy of ≤20um.
5. The machine tool is equipped with a centralized automatic lubrication system, providing a continuous supply of lubricant to all functional components.
