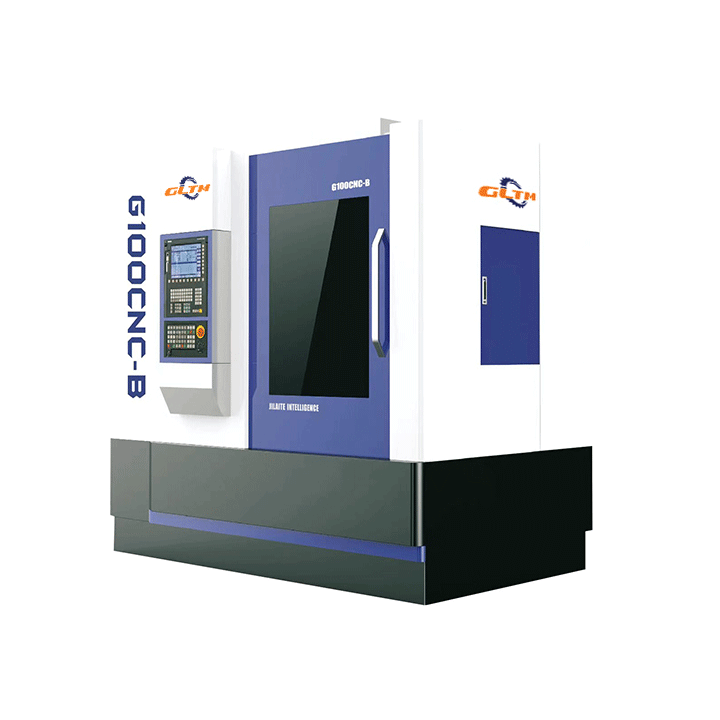

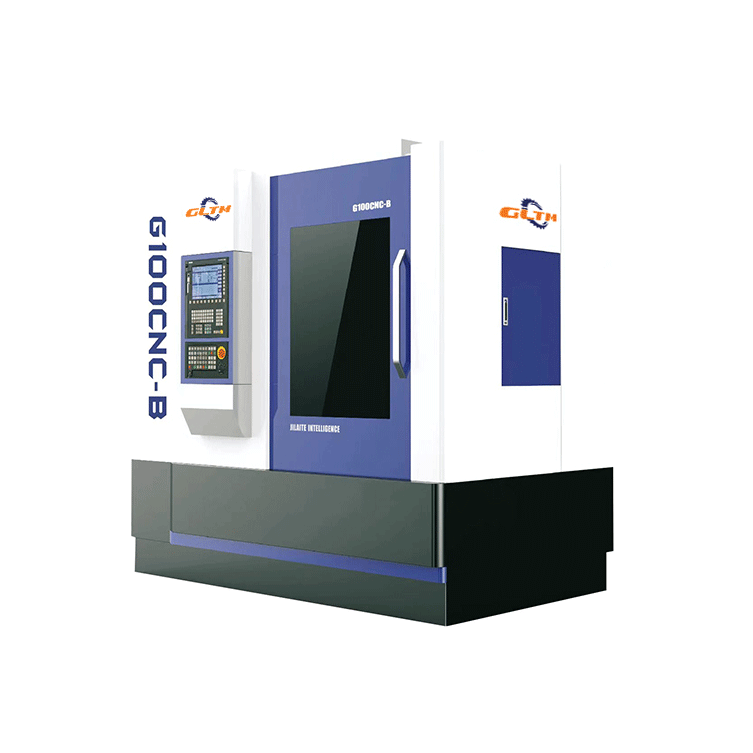

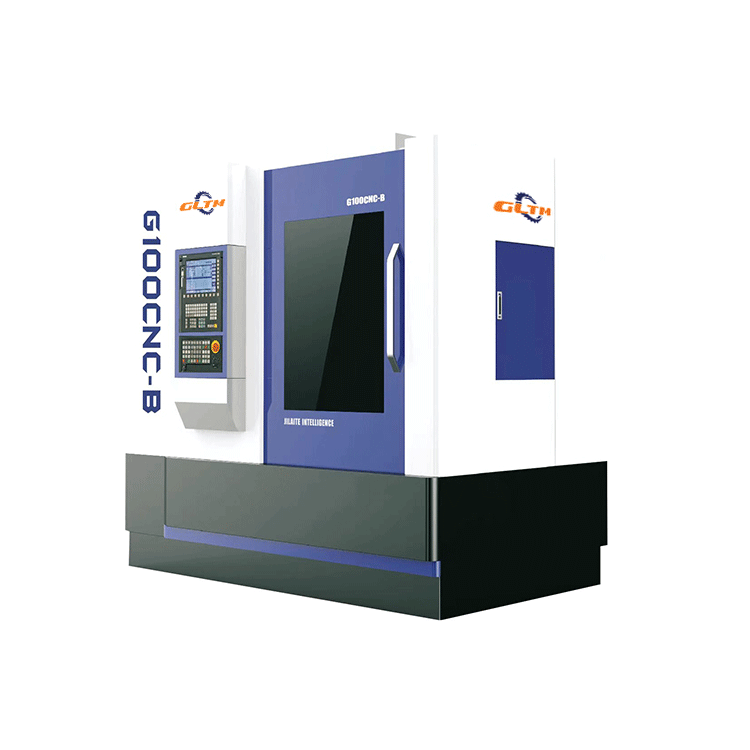

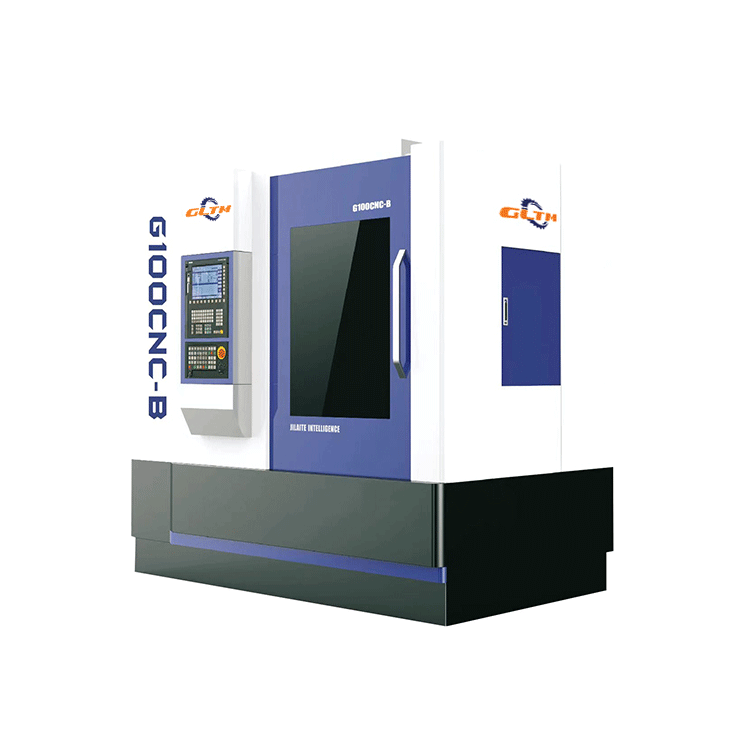

G100CNC-B High-Speed CNC Gear Hobbing Machine

Product Features

This series of high-speed, high-efficiency CNC hobbing machines utilizes the involute method to process cylindrical straight gears, cylindrical helical gears (shaft gears, disc gears), worm gears, small helix angle gears, drum gears, splines, sprockets, synchronous belt pulleys, and other specialized gear types. The machine tools are primarily cast with double-walled, high-flange plate structures, ensuring both overall rigidity and stability through finite element analysis.

• Machining centers are available in three configurations: five-axis, six-axis, and seven-axis.

• The blade shaft features hydraulic automatic tensioning and relaxation, facilitating user tool changes and shortening knife adjustment time.

• The X and Z axes feature a high-rigidity hard rail structure, offering exceptional precision and rigidity.

• The C-axis features a high-precision torque motor direct drive, ensuring the worktable's indexing precision while allowing users to freely select between high-precision or high-efficiency models according to process requirements.

• The Y-axis utilizes a servo motor direct drive, ensuring precise tool deflection and extending the tool life, while also maintaining the overall rigidity of the machine tool.

• Top-grade guideways feature high-precision linear guides, powered by hydraulic cylinders to drive the tool tip movement, ensuring both the accuracy of the guideways and the ease of machine adjustment.

• The processing area is equipped with stainless steel inner protection, completely separating the processing area for easy chip removal.

• Optional precision secondary tool setting device for precise secondary hard scraping of hard gears.

• Equipped with a rotating tip to prevent wear on the central hole when using a fixed tip, and enhances the rotation accuracy of the tip.

• Optional for automatic loading/unloading and chamfering machine automation connection.
