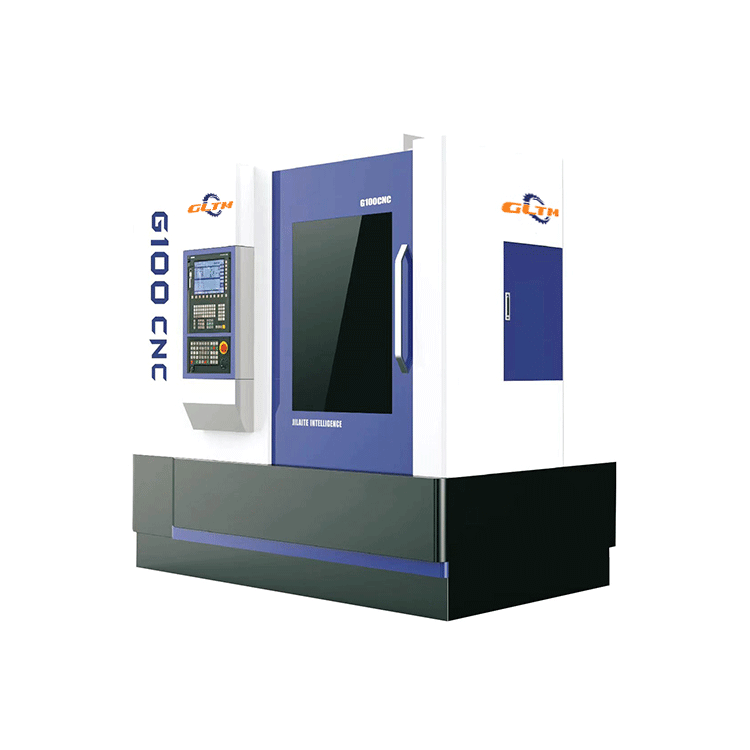

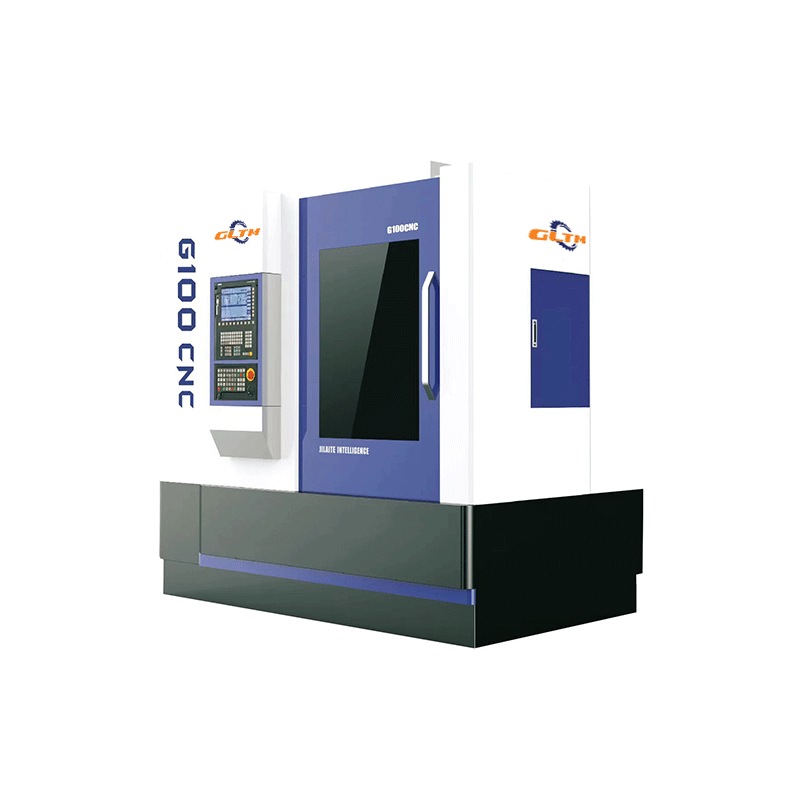

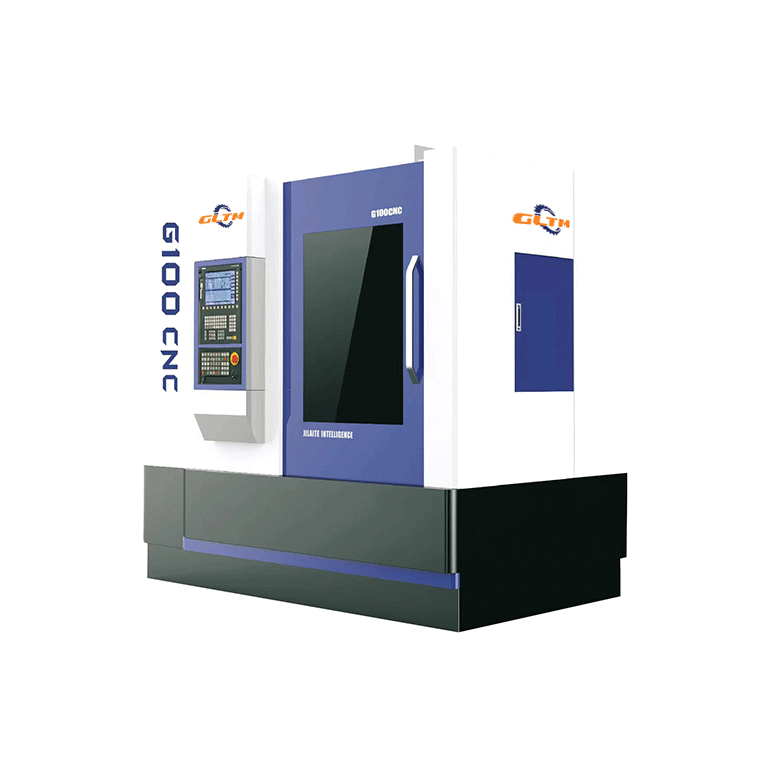

G100 CNC High-Speed Gear Hobbing Machine

Product Features

This series of high-speed, efficient CNC hobbing machines utilizes the involute method to process cylindrical straight gears, cylindrical helical gears (shaft gears, disc gears), worm gears, small helix angle gears, drum gears, spline shafts, sprockets, synchronous belt pulleys, and other specific tooth shapes. The machine tools are primarily cast with double-wall and high ribbed plate structures, ensuring both overall rigidity and stability through finite element analysis.

• Machining centers are available in three configurations: five-axis, six-axis, and seven-axis.

• The tool holder features hydraulic automatic tensioning and relaxation, facilitating user tool changes and reducing knife adjustment time.

• The X and Z axes are equipped with high-rigidity hard rail structures, offering exceptional precision and rigidity.

• The C-axis features a high-precision torque motor with direct drive, ensuring the worktable's indexing accuracy while allowing users to freely select between high-precision models or high-efficiency models based on process and working condition requirements.

• The Y-axis is directly driven by a servo motor, ensuring precise tool positioning and extending the tool life, while also maintaining the overall rigidity of the machine tool.

• The top rail is a high-precision linear rail, powered by an oil cylinder to drive the movement of the cutting tool tip, ensuring both the accuracy of the top rail and the ease of machine adjustment.

• The processing area is equipped with stainless steel internal protection, completely separating the processing area for easy chip removal.

• Optional precision secondary tool setting device for precise secondary hard scraping of hard teeth.

• Equipped with a rotating tip to prevent wear on the center hole when using a fixed tip, and enhances the rotational accuracy of the tip.

• Optional automatic loading/unloading and chamfering machine automation connection.
