Suzhou Plastic Ducting Structure

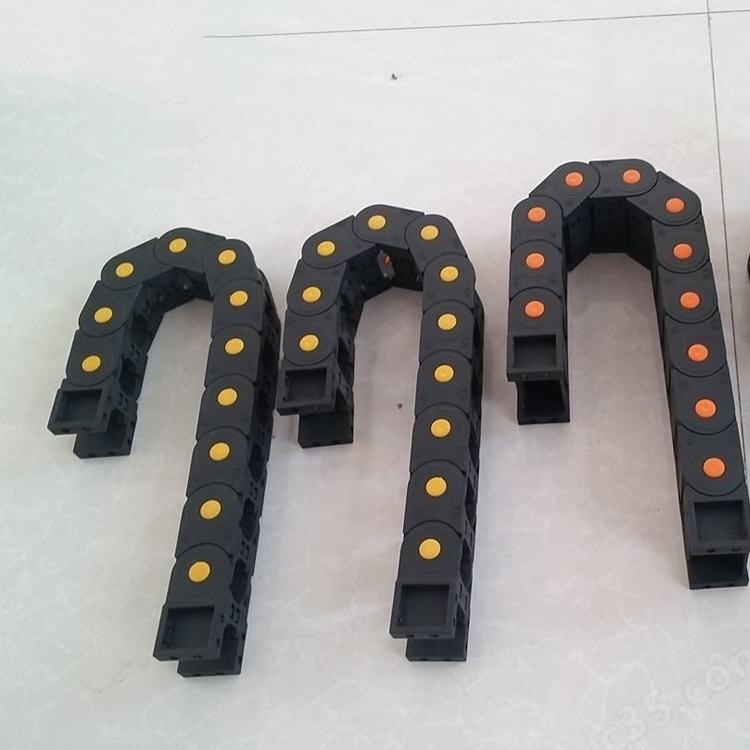

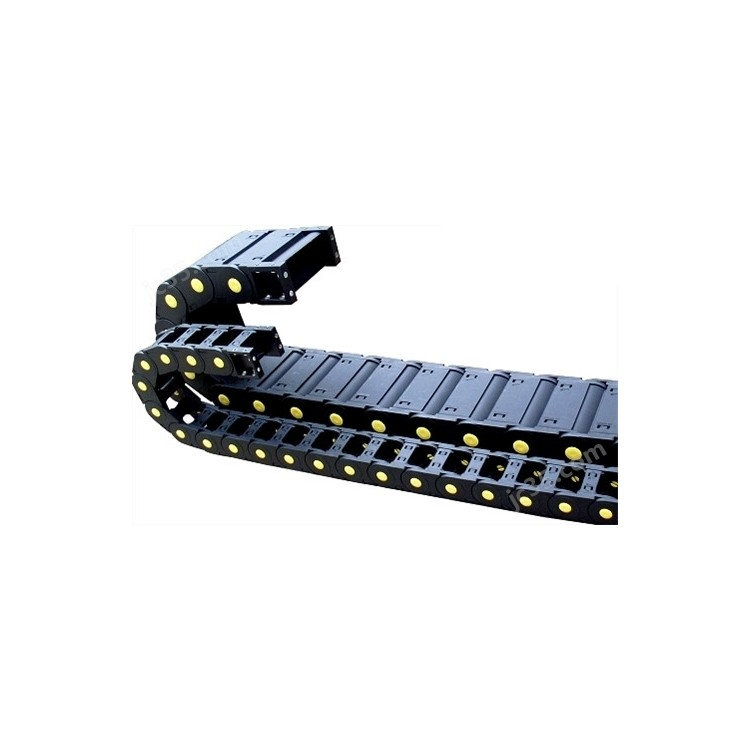

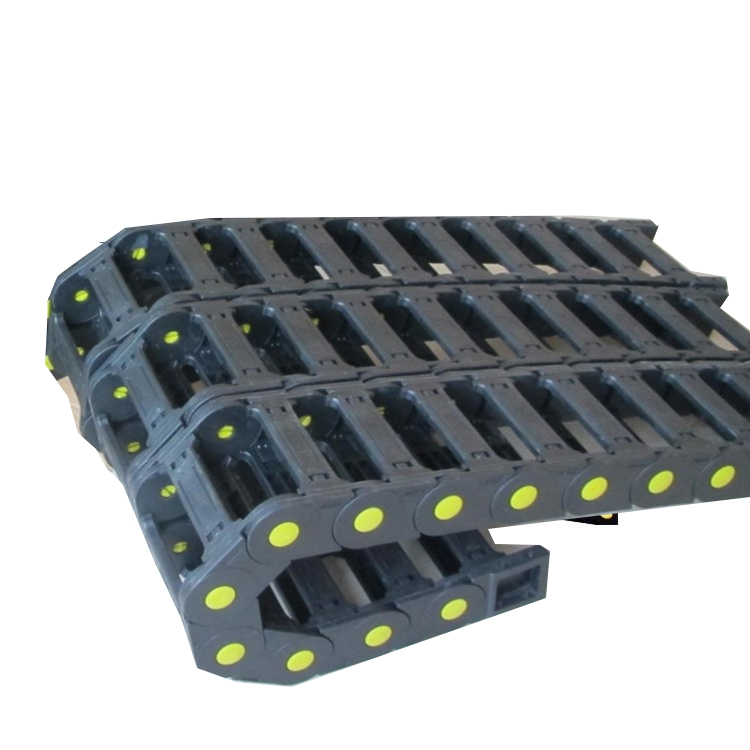

(1) Duct chains resemble chains, composed of numerous individual links that rotate freely between each other.

(2) Chains within the same series have identical inner and outer heights, as well as pitch. The inner width and bend radius R of the chain can be selected from different options.

(3) Each link consists of left and right chain plates, as well as top and bottom covers. Each section of the drag chain can be opened easily for assembly and disassembly, without the need for wiring. After lifting the cover, cables, oil pipes, gas pipes, water pipes, and other items can be placed into the drag chain.

(4) Separation strips are also available to divide the space within the chain as needed.

Wuxi Plastic Ducting Basic Parameters:

Material: Reinforced nylon, featuring high pressure and tensile strength, excellent flexibility, elasticity, wear resistance, flame retardancy, and stable performance at both high and low temperatures, suitable for outdoor use.

The amount of nylon content determines the chain's strength, wear resistance, and the noise level during operation. The nylon content ranges from 5% to 17%, but does not exceed 19%. Generally, it is around 30%.

(2) Resistance: Resistant to oil and salt, with certain resistance to acids and alkalis.

(3) Speed and High Speed: High speed up to 5 meters per second, high acceleration up to 5 meters per second (actual speed and acceleration depend on operational conditions).

(4) Service Life: Up to 5 million reciprocating cycles under normal overhead conditions (specific lifespan depends on operating conditions).
