High-Temperature Screw Jack Protection Cover Technology Classification:
Steel ring supported: Made with various fabrics, supported by steel rings, and constructed with high-frequency heat-sealed sleeves, the outer diameter is fixed. It can operate normally between 110℃ high temperature and -40℃ low temperature.
Effectively dustproof, waterproof, oilproof, emulsifier-proof, and chemical-resistant, with a neat appearance and resistance to deformation, it is robust and can be used for ventilation and dust removal in various machinery.
The required diameter and length can be determined based on the specific customer requirements.
Sewing style: Made of various materials depending on the work environment, first formed into discs through stamping and then stitched together. The two adjacent inner edges and the two outer edges are sewn together.
Good shape stability and firmness in the horizontal direction can be achieved through stitching. According to the installation method, they can be further divided into integral, zipper, hook and loop, snap-button styles, offering greater convenience for installation.
High-temperature screw shaft protector categories:
Divided by manufacturing process into hoop-supported and stitched styles.

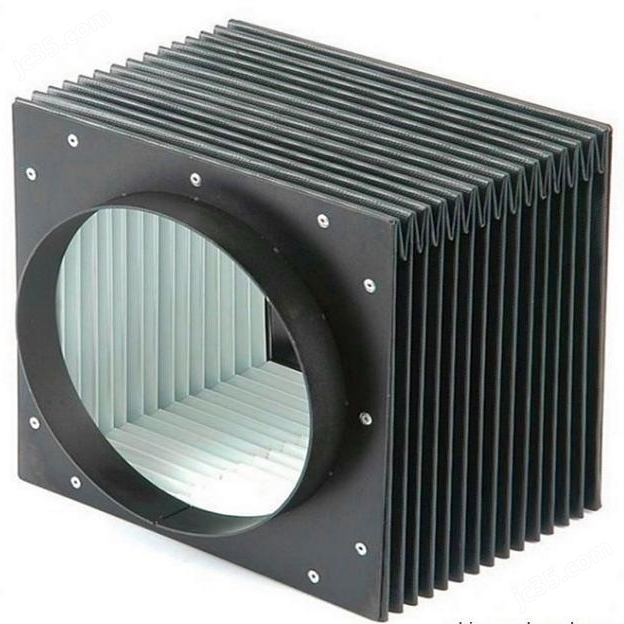

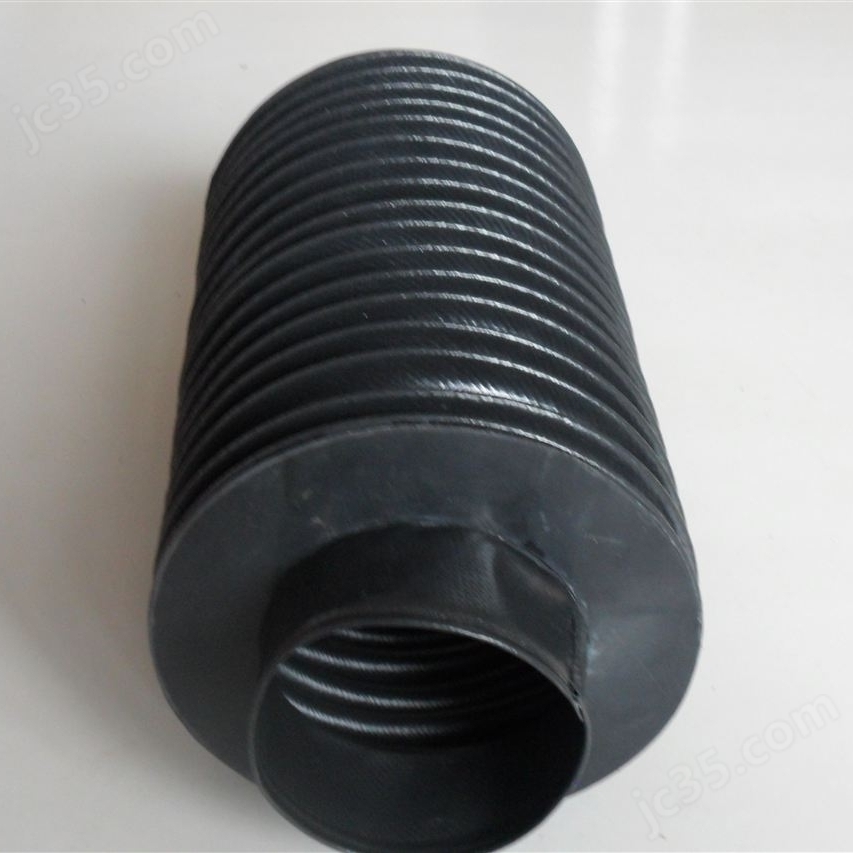

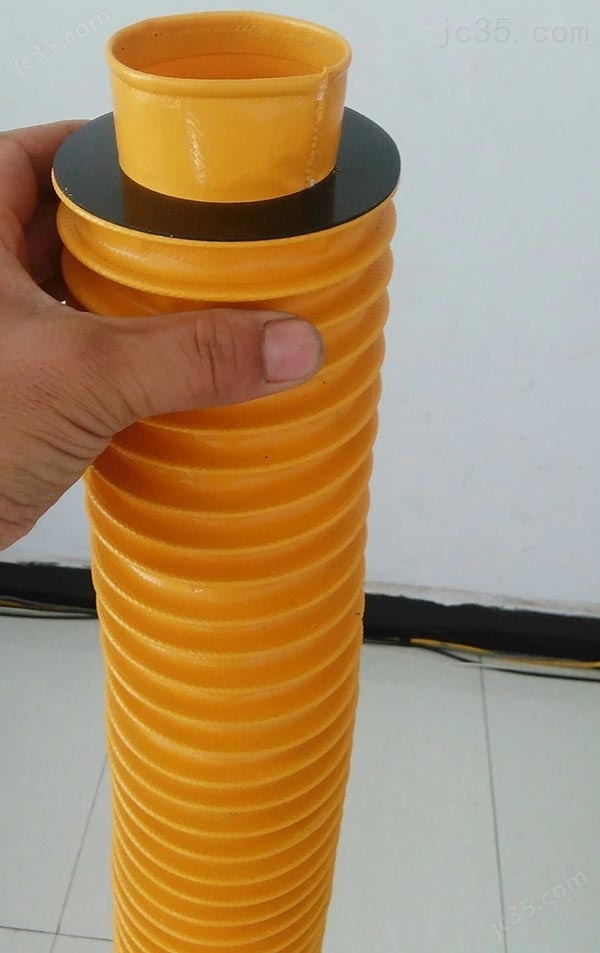

Available in various shapes such as cylindrical, tower, square, rectangular, elliptical, staircase, crescent, semi-circular, and more.
The connections can be further categorized as: (1) Both Ends with Collars (Belt Type), (2) Both Ends with Flanges (Screw Type), and (3) One End with a Flange and the Other with a Collar. Flanges are available in PVC and Metal types.
Work Features: Capable of extending or compressing with parts, suitable for both vertical and horizontal use. When in a horizontal position, use support rings made of plastic or aluminum.
Maintain a uniform distance between the inner cavity of the guard and the screw to extend its service life. When the stretch length is great, add a metal ring at each fold to enhance the stability of the guard.
Metal flanges or clamping bands are available for connections or fixation.
