I. Product Configuration and Features
1.The product integrates three independently operable test box modules, namely, Module 1, Module 2, and Module 3.
2. Refrigeration systems, one original imported refrigeration system per work station, ensuring long-term continuous operation of the equipment.
3. Adjustment Method: Balanced temperature and humidity control with self-developed electric heating steam humidification, ensuring accurate and reliable temperature and humidity with minimal fluctuations.
4. Safety Protection, Independent Temperature Control Protection System.
5. Data processing, with timely data printing and record keeping methods.
6. Continuous operation without defrosting, avoiding fluctuations in internal temperature and humidity during use due to defrosting.

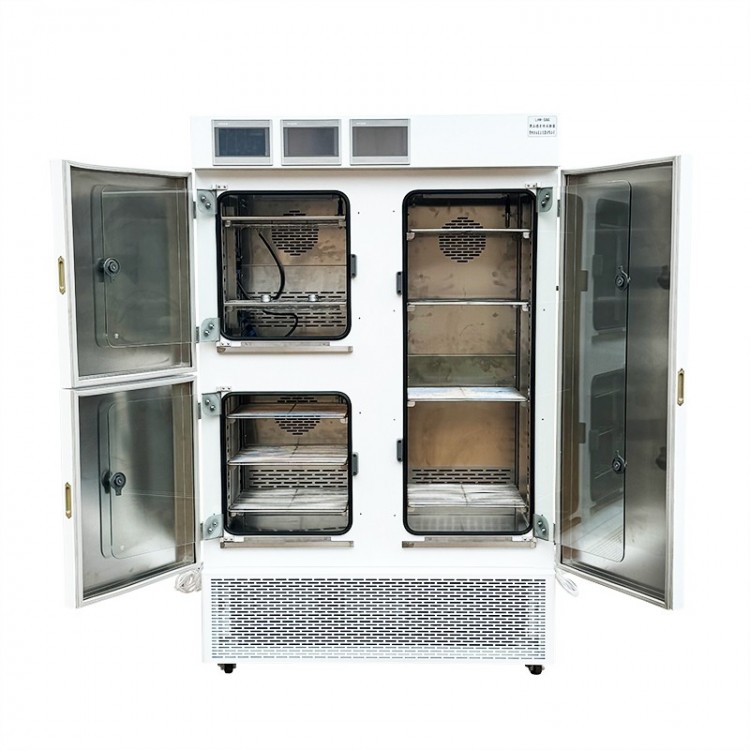

7. Double-door design with a panoramic tempered glass observation panel on the inner door to prevent parameter fluctuations during sample observation.
8. Equipment ConfigurationUSB interface, with printer functionality configured, allowing customers to print real-time data.
9. The equipment features three-tier management access + operational log and alarm record functions, and is equipped with 5 sets of programs, each containing 99 programming segments, capable of cycling up to 99 times.
10. Standard equipment for Warehouse 1 is top lighting.Equipped with UV function and configured with light intensity and UV irradiance sensors.
11. Equipped with a printer that can print real-time data, featuring USB+printer functionality, dual data collection system, ensuring real-time and effective data.
12. Case equipped with a right-side verification hole: φ50mm, convenient for later point verification.
II. Product Technical Specifications
Model | LHH-SSG Set of Three Boxes | ||
Temperature Control Range | Available with light10~60°F, 0-60°F, no light | ||
Temperature fluctuation | ±0.5℃ | ||
Uniformity of temperature | ±2℃ | ||
Humidity Range | 25-95%RH | ||
Humidity Deviation | ±3%RH | ||
Light Intensity/ Tolerance | Visible Light:0-6,000 lx adjustable / ≤±500 lxUltraviolet irradiance greater than1.0W/m2 | ||
Cooling System | Embraco Imported Compressor Units | ||
Controller | Color Touch Screen ControllerSensor readings for temperature, humidity, visible light intensity, and ultraviolet radiation intensity | ||
TemperatureSensor | PT100 Platinum Resistance Temperature Sensor | ||
Power Supply/Input Power | 220V Power Supply/ Total of 3 warehouses: 6,000,000 units | ||
VolumeL | 1 | 2 | 3 |
100L | 100L | 225L | |
Inner lining sizemm | 500*450*450 | 500*450*1000 | |
Dimension and Shapemm | 1200*770*1750 | ||
Luminous intensity | With light | Matte | |
Partition standard accessories | 2 pieces | 2 pieces | 3 pieces |
