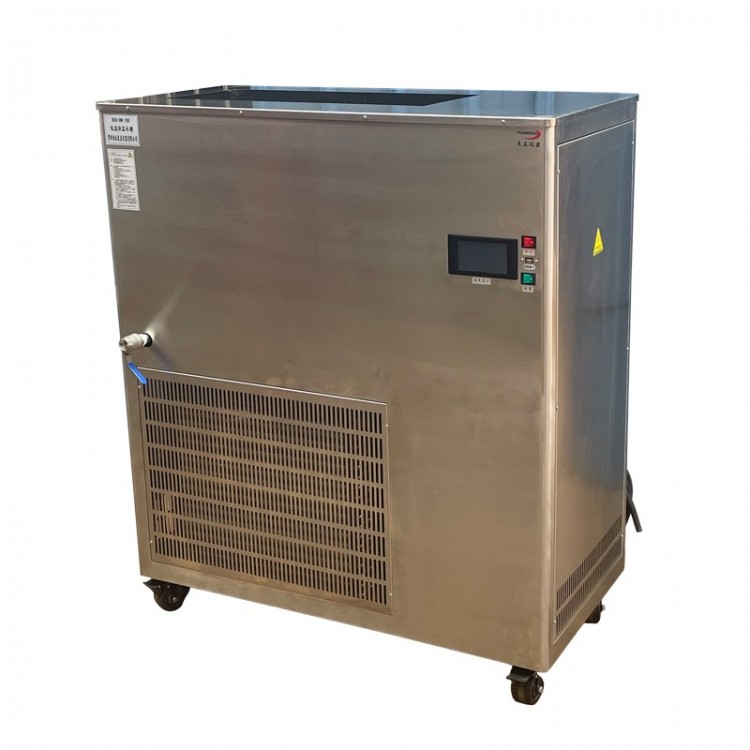

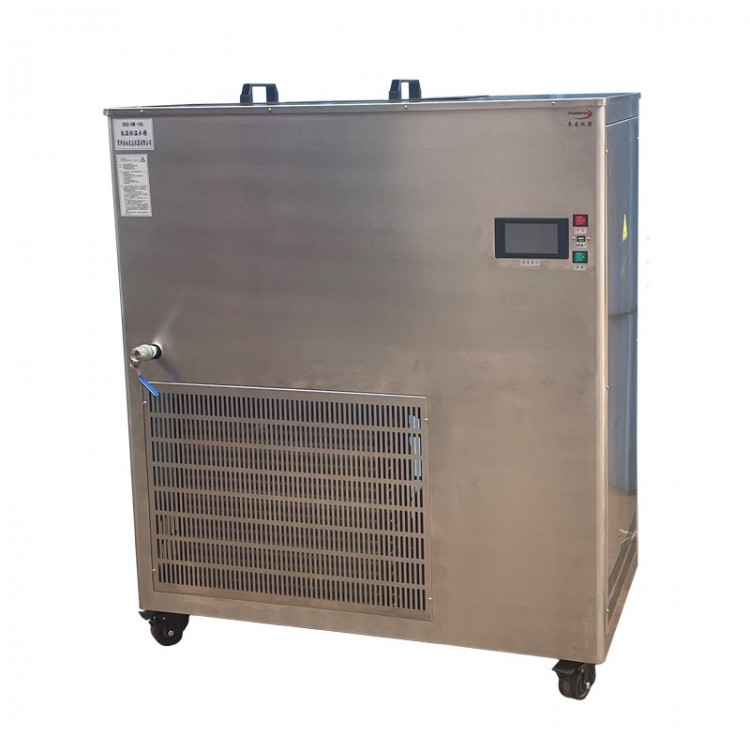

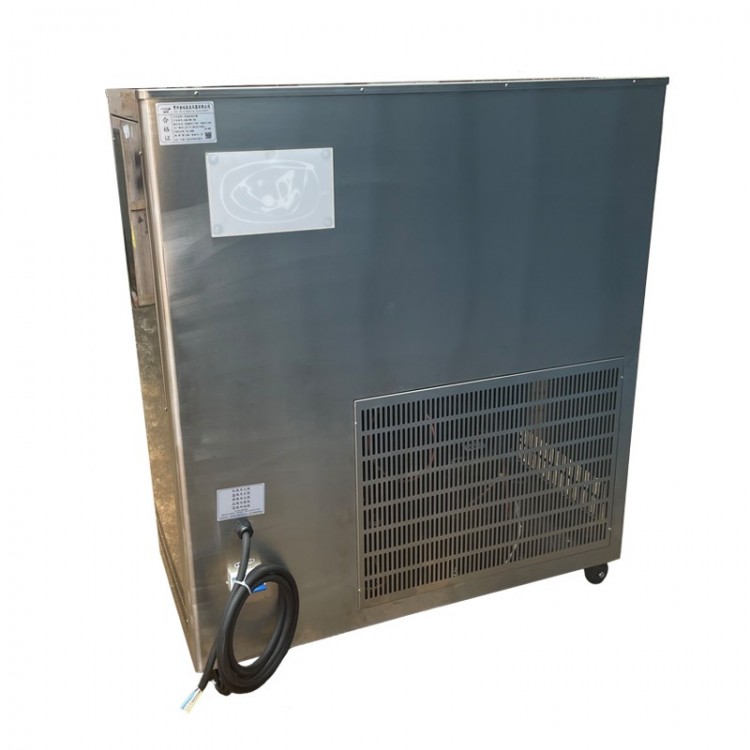

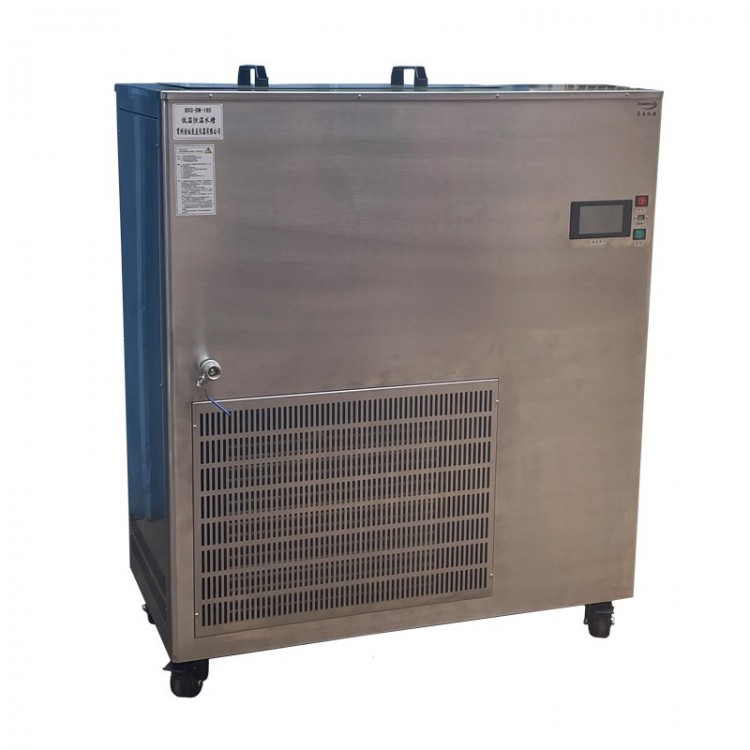

The BXG-DW series low-temperature constant-temperature water bath is a high-precision temperature control source with built-in refrigeration and heating, featuring the functionality of a large-scale chiller. It is widely used in research departments for petroleum, chemical, metallurgical, biochemical, physical properties, testing, and chemical analysis, as well as in universities, factory laboratories, and metrological quality inspection departments.
With varying slot opening sizes,恒温 experiments can be conducted within the bathtub, and it can also be connected to other equipment via hoses for use with a temperature control source. The internal circulation enhances the uniformity of the槽 temperature and reduces temperature fluctuations.
External Loop: Utilizing the pump's circulation capacity, connect the insulated hose to external equipment through the outlet, forming a closed loop that returns to the equipment's inlet. This process externally draws the constant-temperature medium within the tank, establishing an external constant-temperature field.
BXG-DW Series Low Temperature Constant Temperature Bath Features
1. Full-enclosed refrigeration unit with cooling, featuring multiple protections such as overheat and overcurrent.
2. The circulating pump can extract the isothermic liquid from the槽, establishing a second isothermic zone.
3. The internal chilled liquid can be externally accessed, allowing for experimental containers outside the cooling machine, or低温、恒温 experiments can be conducted directly within the tank.
4. Equipped with an XMT simulation digital PID automatic control system, with digital temperature display
5. Inner lining, countertop, and shell are all 1.5mm thick, made of 304 stainless steel, clean and hygienic, and aesthetically pleasing with corrosion resistance.
6. The THD series is vertical, easy to place inside an operation table. Heating power: 8000W, cooling power: 2.2KW.
7. Equipped with ball valve drain function, 304 stainless steel ball valve
8. Dimensions: 1190*540*1400 (including feet and control cabinet height), the overall dimensions must be less than 1200*800mm.
9. The equipment is constructed with 304 stainless steel both inside and out, featuring a 1.5mm thick inner liner焊接 from 304 stainless steel sheets. The housing is made of 1.5mm thick 304 stainless steel. The base of the equipment is reinforced with square tubes, ensuring stability. The round-arched structure of the inner liner facilitates cleaning.
10. The equipment features a high-performance circulating pump with a flow rate of 50 MIN, ensuring uniform and consistent temperature within the tank.
11. Equipped with a 3P imported TaiKang compressor set, high performance, ensuring the stability of the equipment.
12. The cooling coil within the groove is made of 304 stainless steel, which avoids the issue of copper rust that can occur over time with old copper pipes, reducing signs of rust and significantly enhancing the durability of the equipment.
13. Equipped with a USB port, customers can read the temperature data and transfer it to a computer for printing.
14. Install a 3-tier shelf inside the equipment to ensure the customer's samples can be placed vertically.
15. Features low water and power-off protection, automatically shuts off power when water level is below the set point to safeguard equipment; also includes features like power restoration and over-temperature alarm.
16. Equipped with a 5-inch touch screen and three-tier management permissions
17. We need a shelf for vertical placement. The customer's bags are 678*513*69MM, and it can hold 3 at a time.
Technical Specifications
Model and Specifications | Temperature Range(℃) | Temperature fluctuation(℃) | Work Volume (mm3) | Slot depth(mm) | Pump flow rate(L/min) | Opening Size (mm2) |
BXG-DW-185 | 0~100 | ±0.5 | 800×400×580 | 550 | 50 | 700×300 |
