Product Description:

Single-chip microprocessor control and self-tuning for the miniature temperature-controlled low-temperature constant-temperature water bathPID control, platinum resistance (Pt100) temperature measurement, high temperature control accuracy and low fluctuation; full-sealed compressor technology (below -40℃ uses double compressor cascade refrigeration technology and heat exchange system), high refrigeration efficiency and low noise. The instrument operates stably and reliably with easy and safe operation.

Humanized Design:Miniature Low-Temperature Tank SeriesBoth handles facilitate the transport of the instrument. The large-capacity low-temperature constant-temperature bath features heavy-duty casters with self-locking mechanisms for easy movement. The low-temperature constant-temperature bath is made using related integral foaming technology, offering excellent thermal insulation properties and effectively reducing the loss of cold.

Professional reciprocating stirrer design:Ensures the liquid in the槽 maintains a uniformly dispersed and smooth circulation, with stable thermal exchange. Low-temperature constant-temperature槽stirring temperature fluctuation±0.05°C, Display Resolution 0.01°C.

Applicable for interior/External Temperature Control Applications:Samples can be placed directly in an open bathtub with a constant temperature, or an external control unit for a constant-temperature measurement can be connected.

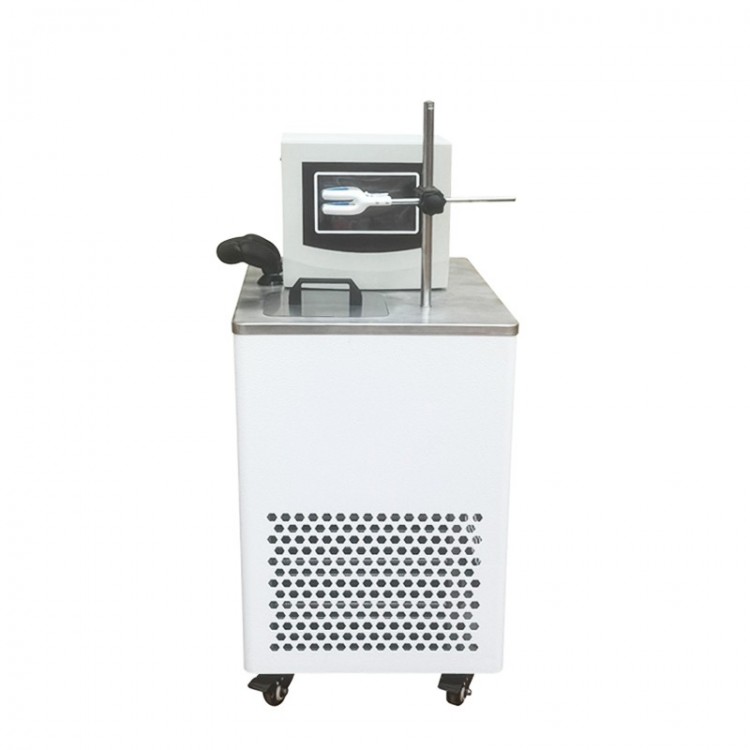

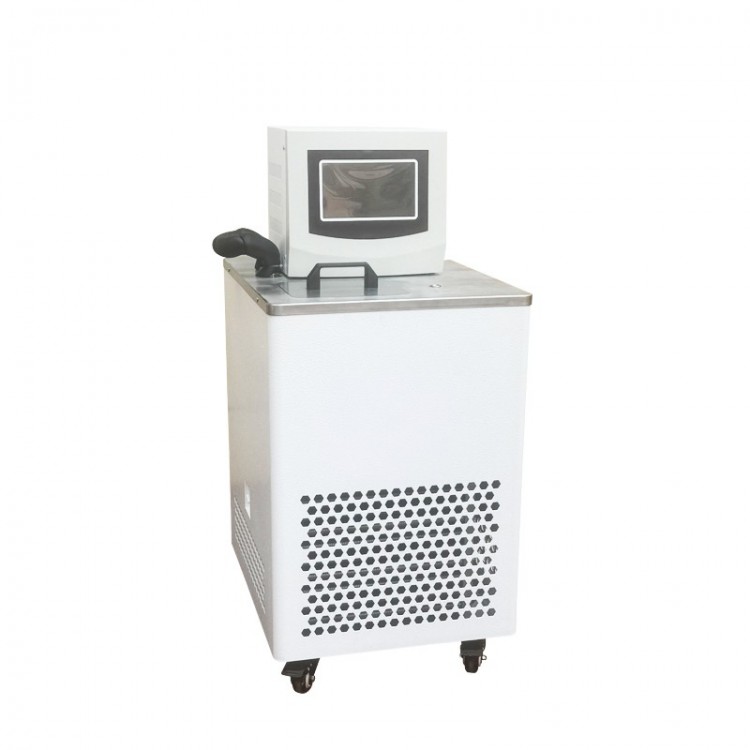

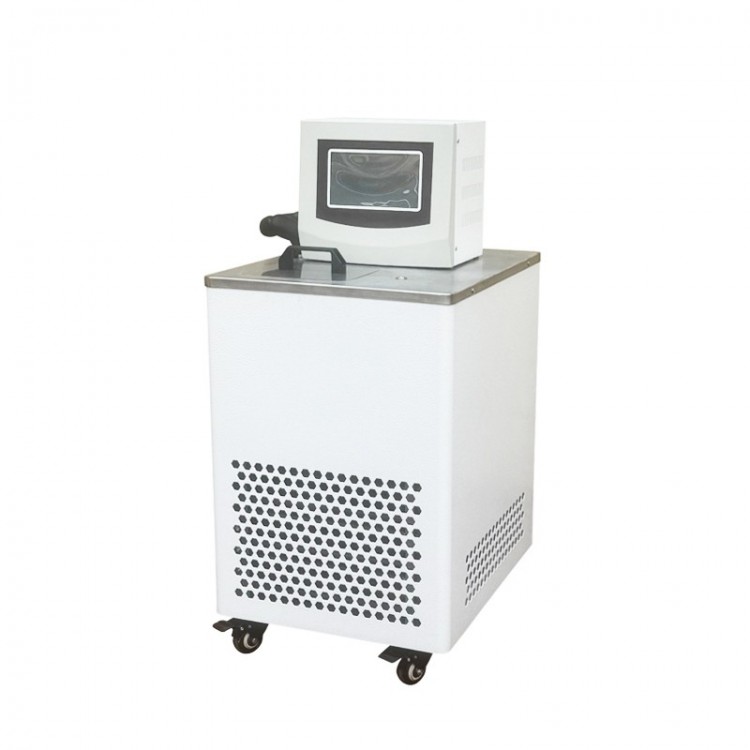

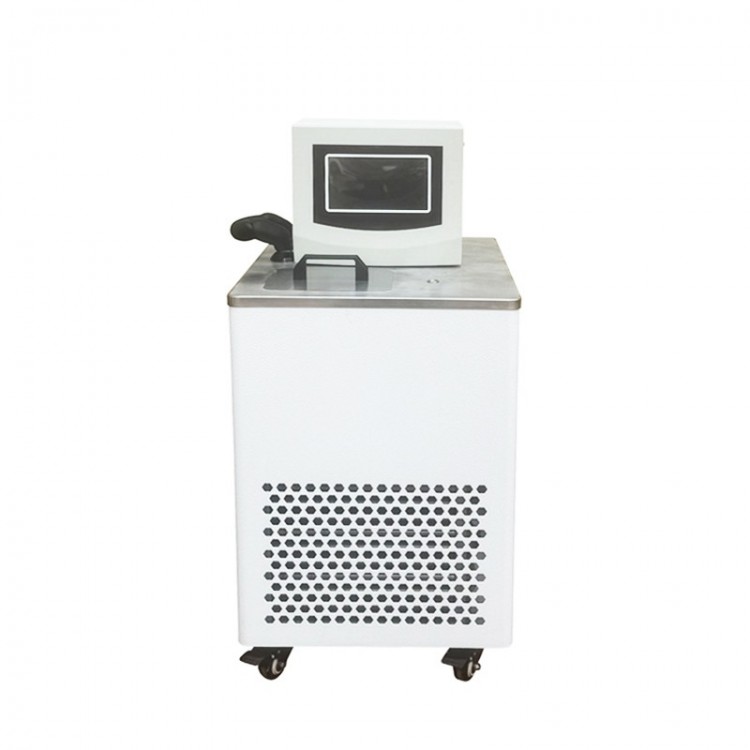

DC-0506 Low Temperature Constant Temperature Bath DC-0506 Low Temperature Constant Temperature Bath DC-0506 Low Temperature Constant Temperature Bath

Product Features:

Utilizes microcomputer temperature control PID regulation and self-tuning control technology, achieving temperature control accuracy of ±0.05℃.

2. Full-sealed environmental-friendly refrigeration system with no CFCs, rapid cooling.

3. Temperature Range: Optional -50 to 100℃ (medium selection based on temperature range, including pure water, ethylene glycol, alcohol, etc.), alsoDesign and manufacture customized products according to customer specifications

4. Capacity Range: 6L, 10L, 15L, 20L, 30L, also availableDesign and produce customized products according to customer specifications。

5. The outer shell of the body is made with anti-aging electrostatic spraying technology, and the inner pan stirrer pump and all other parts are made of SUS304 stainless steel material.

6. Precision-machined front panel and desk surface with ergonomic R-radius design structure, preventing operators from accidentally getting hurt by sharp edges.

7. Communication grating, facilitating condenser ventilation and heat dissipation for refrigeration units

8. Internal Recirculation Function: Utilizes a heat-free centrifugal pump to prevent the traditional pump's self-generated heat from affecting the tank's thermal field.

9. External circulation function: The circulation pump can extract and circulate constant-temperature liquid externally, establishing a second temperature field.

10. Low-temperature Constant Temperature Bath Safety Protection Device

1) Equipped with power failure protection function

2) Features temperature setting with upper and lower limits

3) Temperature Control Loss Protection and Alarm Function

4) Heating unit features low water level protection against dry burning and explosion-proof function (optional)

5) Multiple protection functions for overheating and overcurrent of compressors

6) Features open circuit sensor display function.

7) Optional beaker holder available for secure gripping of round-bottom beakers without tipping

8) The equipment is optional with a magnetic stirring function; place the beaker in the center for magnetic stirring.

9) Optional external circulation pump with adjustable flow rate; the control knob can regulate the pump's flow speed.

Product Application:

The DC series low-temperature constant-temperature water bath is widely used in fields such as bioengineering, food, chemical industry, metallurgy, chemical analysis, and petroleum. It provides users with a controlled, uniformly temperature-controlled constant field source. It is suitable for research institutions, colleges and universities, factory laboratories, and quality inspection departments, offering a controlled liquid environment with uniform and constant temperatures for work. It allows for direct temperature testing or testing of samples or products within the bath, and can be used for direct heating or cooling as a source of auxiliary heating or cooling, such as for reactors, fully automatic synthesis instruments, extraction, and condensation units.

Application Fields:

Constant Temperature Field:Sensor detection, isothermal biochemical reactions, isothermal material aging, etc.
Bioscience field:Rotary Evaporator, Abbe Refractometer, Viscometer, Rheometer, Polarimeter, Atomic AbsorptionICP-MS, ICP, Nuclear Magnetic Resonance, CCD, Bioreactors, Chemical Reactors (Synthesizers), etc.
Material Field:Electron microscopeX-ray diffraction, X-ray fluorescence, vacuum sputter coating, vacuum coating machines, ICP etching, various semiconductor equipment, fatigue testers, chemical deposition systems, atomic deposition systems, etc.
Field:Superconducting Magnetic Resonance, Linear Accelerator,CT scans, low-field nuclear magnetic resonance, X-ray machines, cooling blankets, etc.
Materialization Field:Lasers, magnets, various molecular pumps, diffusion pumps, ion pumps, and materials field.
