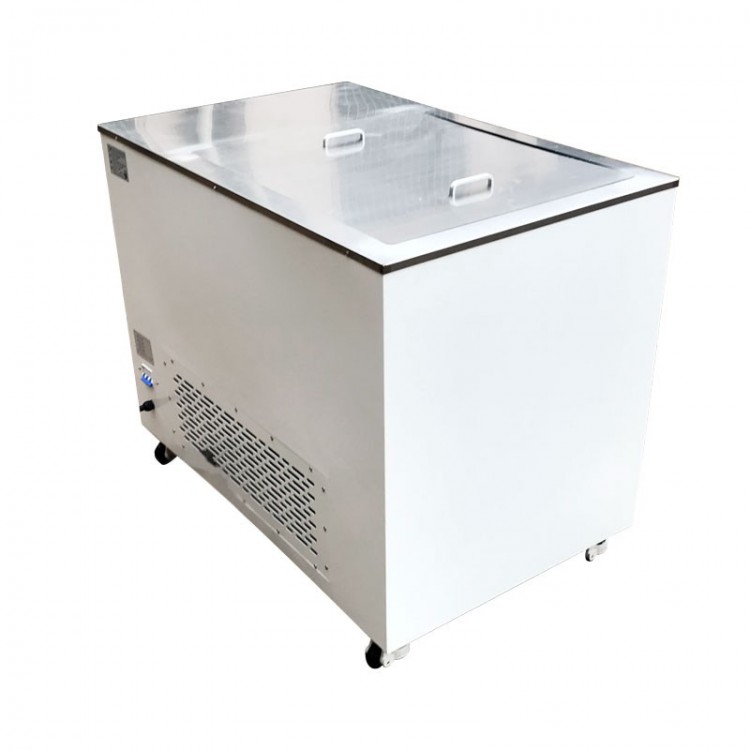

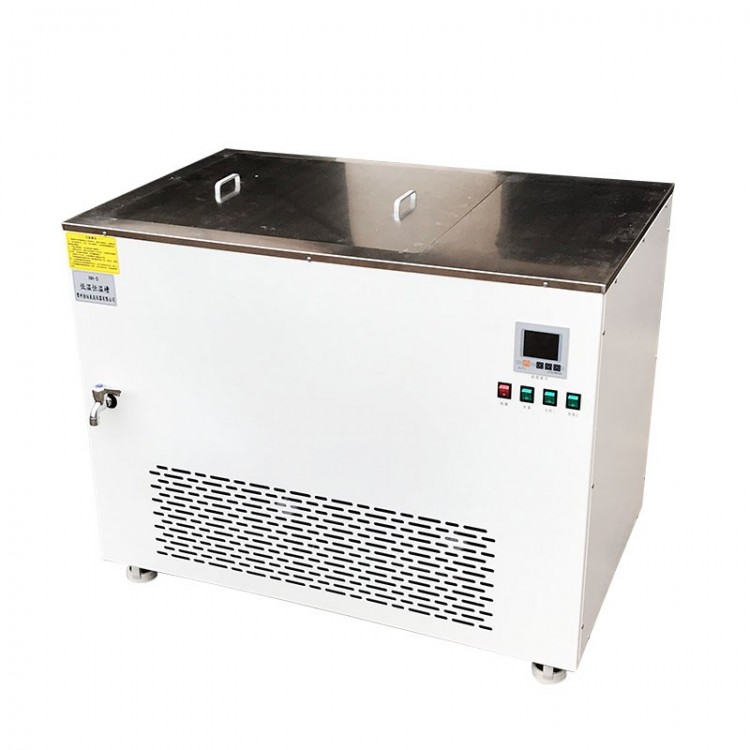

Low-temperature constant-temperature water baths are large-capacity units that combine high-precision temperature control technology with a PID control method, incorporating a refrigeration and compression cooling system. The built-in refrigeration and heating systems cater to various user needs. The stainless steel low-temperature constant-temperature baths feature microcomputer temperature control with high precision, achieving ±0.1℃ accuracy—a standard unattainable by most temperature control systems. The addition of an internal circulation system ensures more uniform liquid temperatures within the chamber, offering stable and reliable performance and ease of operation. The unit also comes with an external circulation interface, allowing customers to output a constant temperature source as needed, establishing a second constant-temperature field. Larger sample containers can be used, and viscosity can be measured directly on a water bath. Widely used in research departments such as petrochemical, engineering, metallurgy, biochemical, physical property testing, and chemical analysis, as well as in universities, factory laboratories, and metrology inspection departments, providing users with a controlled, uniform temperature source for both cold and hot applications.
Key Features of Stainless Steel Low Temperature Constant Temperature Bath:
1. Control Panel: Digital display, simple settings, easy operation, temperature can be calibrated, with alarm signals displayed.
2. Advanced恒温控制器: Equipped with PID temperature control and a microcomputer intelligent temperature controller, featuring dual digital display for set and measured temperatures, as well as PID self-tuning function. Accurate and reliable temperature control with a wide range from 0 to 99℃, allowing for any temperature setting within this range.
3. Recirculation System: Powerful jet pump agitation; the circulation pump allows for external recirculation of a constant-temperature liquid medium (standard with internal recirculation).
4. Enhanced safety features: Temperature失控protection and alarm – if the temperature suddenly exceeds the set point by more than 2°C while maintaining a constant temperature, the alarm will activate, display the alert, and automatically shut off the heating element; Overcurrent protection function – in case of a sudden overcurrent during operation, the fuse in the power outlet will blow, safeguarding the instrument and the user; Overvoltage protection function.
5. Optional External Loop Interface: A functional device that allows for free selection between internal and external loops, better meeting the diverse needs of users.
6. Equipped with a French-imported Tai Kang compressor unit, enhanced equipment stability
Stainless Steel Low Temperature Constant Temperature Bath Technical Specifications:
1. Stainless steel inner tank, workshop (opening) dimensions: 500×800×400mm, inner tank volume: 192L. Inner tank dimensions: 600*800*400MM
2. Temperature Control Range: 0-99°C, microcomputer intelligent temperature control.
3. Constant Temperature Accuracy: ±0.1℃; Temperature Fluctuation: ±0.1℃; Digital Display Resolution: 0.01℃.
4. Heating Power: 9000W, Cooling Power: 1500W.
5. With built-in circulation pump, flow rate: 50L/min.
6. Timing Range: 1-9999 min; Operating Voltage: 380V/50Hz.
7. Equipment Material: The outer shell is made of 1.5MM cold-rolled steel electrostatic powder coating, and the inner lining is made of 304 stainless steel with a thickness of 1.2MM.
