1. Microcomputer control with a European-imported high-torque AC variable-frequency motor drive, ensuring stable operation, low noise, and high rotational speed accuracy.
2. Touchscreen panel, programmable operation; the host's operating parameters can be set according to requirements and automatically saved.

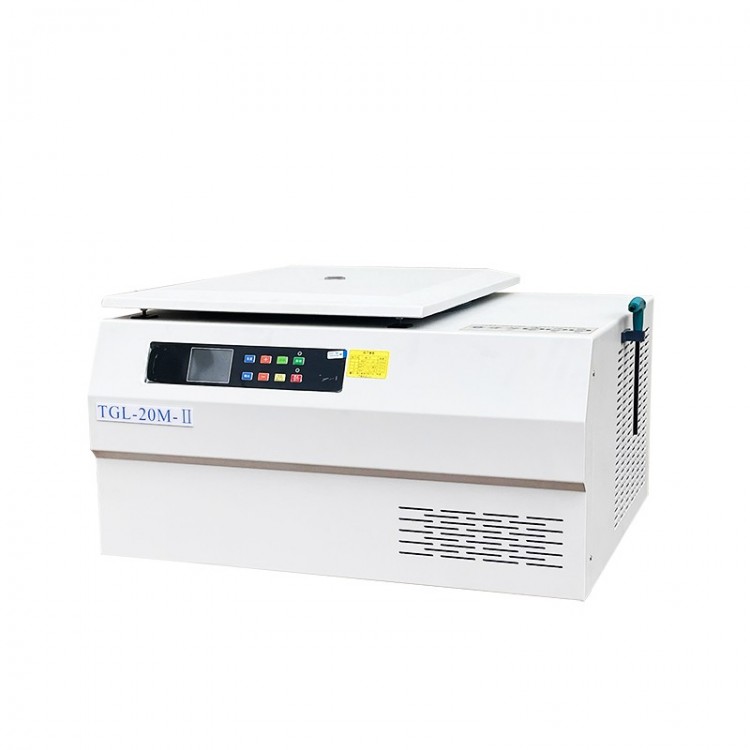

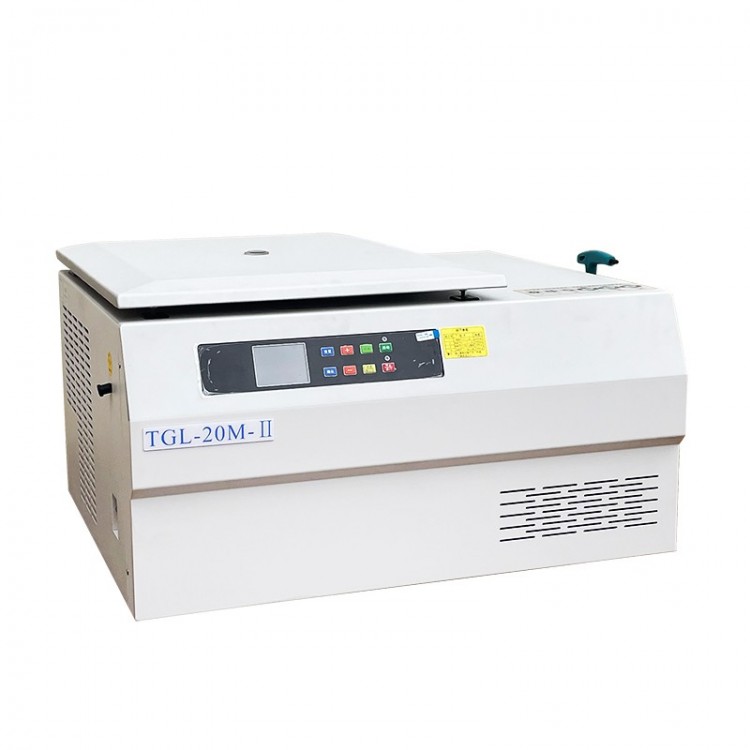

3. The TGL-20M-II features a large-screen LCD display with a user-friendly interface, offering simple and convenient operation.
4. Real-time RPM/RCF reading conversion and setup for convenience and speed.
5. Equipped with electronic door locks and mechanical door locks, featuring automatic door cover locking, overspeed, and over-temperature protection functions; comes with automatic fault alarm for safety and reliability.
6. Utilizes a one-piece food-grade silicone seal, ensuring safety, reliability, and excellent sealing properties.
7. Features a 9-program rise/fall rate curve, with adjustable rise/fall time settings as needed.
8. Equipped with original imported French Tecumseh compressors, ensures long-lasting operation and is environmentally friendly with no refrigerant.

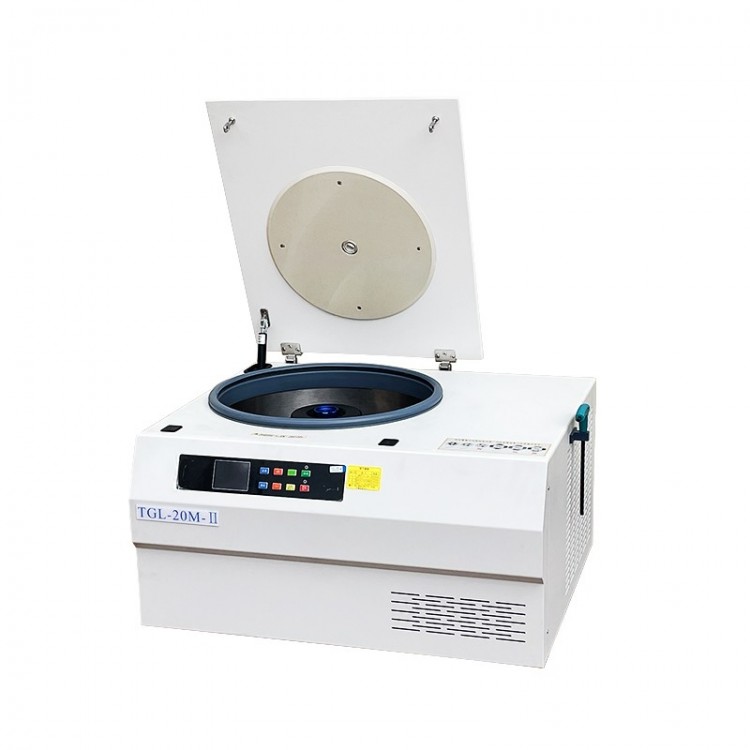

9. The rotor can be sealed with a cover for high safety, is suitable for high-temperature sterilization, and is ideal for university and factory laboratories.
Model:TGL-20M-II | |||
Highest RPM | 22000rpm | Power Support | AC 220±22V 50Hz 15A |
zuiHigh relative centrifugal force | 34700×g | Total Power | 1800W |
zuiHigh capacity | 4×750ml | Overall noise | 62dB（A） |
Time Range | 1min~99h59min59s | Centrifugal cavity diameter | Φ430mm |
RPM Accuracy | ±10r/min | Dimensions | 830×750×420mm |
Temperature Setting Range | -20℃~40℃ | Outer packaging dimensions | 950×857×544mm |
Temperature accuracy | ±1.0℃ | Net Weight | 150kg |
Rotor Parameters:
Rotor Name | Rotor Number | Capacity | zuiHigh RPMr/min) | zuiLarge relative centrifugal force(×g) |
Angular rotor | 1 | 12×1.5/2.0ml | 22000rpm | 34700×g |
2 | 12×5ml | 16000rpm | 17420×g | |
3 | 24×1.5/2.0ml | 16000rpm | 23200×g | |
4 | 12×10ml | 15000rpm | 23120×g | |
5 | 8×50ml | 10000rpm | 9690×g | |
6 | 4×100ml | 10000rpm | 9690×g | |
7 | 6x 50ml Vial/Cone Bottom General Use | 13000rpm | 17380×g | |
8 | 12x15 conical bottom | 13000rpm | 17380×g | |
9 | 8x8x0.2ml PCR tubes | 13000rpm | 16434×g | |
Horizontal rotor | 10 | 4×500/750ml | 4000rpm | 3580×g |
Adapter:28 x 50ml Narrow-Bottom Bottles | 4000rpm | 3580×g | ||
Adapter:56 x 15ml Tip Top | 4000rpm | 3580×g | ||
11 | 4x2x96-well enzyme-linked rotator | 4000rpm | 3580×g | |
Square basket rotor |
