Key Features and Applications of Hydraulic Plate Bending Machines:

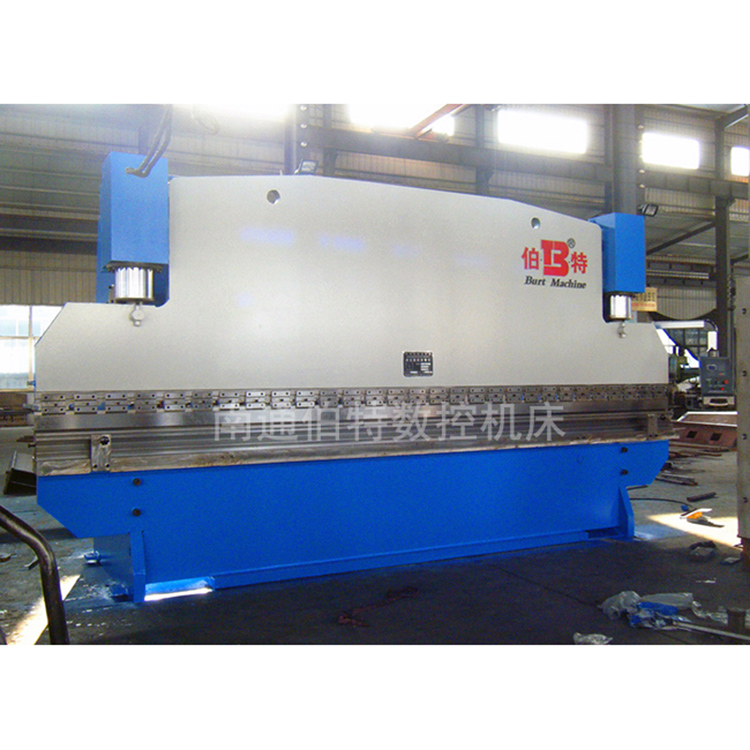

WC67Y hydraulic plate bending machine, featuring steel plate welded structure, vibration aging to relieve stress, the machine tool boasts excellent rigidity and stability. The entire machine frame has good rigidity, operates smoothly, and is easy to handle. Through the coordinated control of the bending machine's digital display and the hydraulic system, it achieves ideal bending results.
Hydraulic Plate Bending Machine Technical Description:
Full steel welded structure, vibration-damping, high mechanical strength, and good rigidity.
Hydraulic drive, smooth and reliable.
Mechanical stopper, shaft synchronization, high precision.
Back material distance and upper slider stroke are electrically adjustable with manual fine-tuning devices and digital display. The upper mold is equipped with a deflection compensation mechanism, while a lower deflection compensation mechanism is used for models over 250 tons and with a length of 4000mm or more.
Main components and structure of machine tools
1. Slider section: Utilizes hydraulic transmission. The slider section consists of sliders, cylinders, and a mechanical stop fine-tuning structure. The left and right cylinders are fixed to the machine frame, and the pistons (shafts) are driven to move the sliders up and down through hydraulic force. The mechanical stops are adjusted according to the counting meter's displayed values.
2. Workbench section: Operated by a button box, the motor drives the material stop架 to move forward and backward, with the distance displayed by a counter, reading as 0.10mm (with limit switches for both forward and backward positions).
3. Synchronous System: The machine is equipped with a mechanical synchronous mechanism consisting of twisted shaft, swing arm, joint bearings, etc. The structure is simple, with stable and reliable performance and high synchronization accuracy. The mechanical stopper is adjusted by the motor, and the counter displays the value.
4. Stopper Mechanism: The stopper is driven by an electric motor, which moves two screw rods synchronously via chain gears, and the counter displays the stopper size.
