Product Specifications

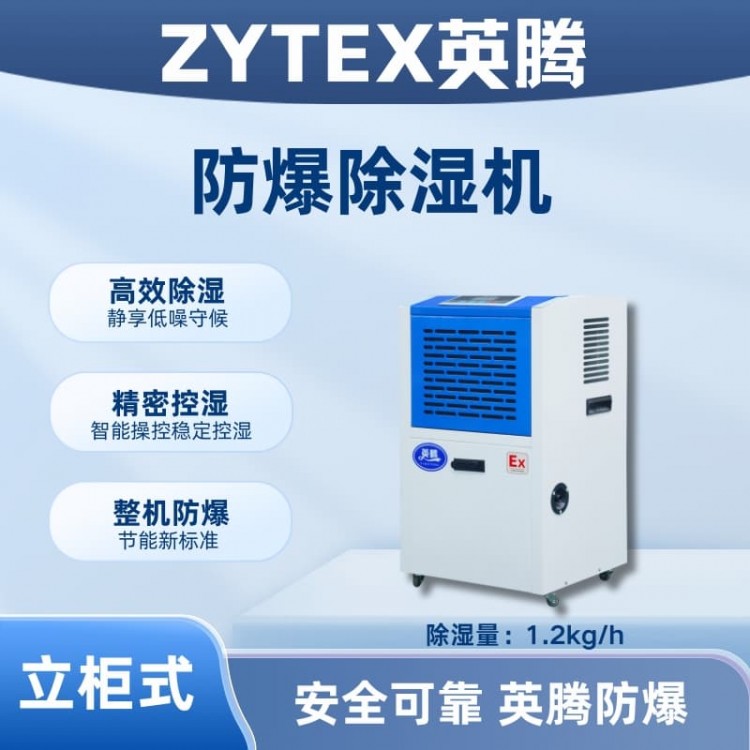

Model: BCF-1.2
Brand: YingTeng
Dehumidification Rate (30℃ RH 80%): 1.2 kg/h
Power: 220V/50Hz
Input Current A: 4.5
Weight: 32 kg
Input Power KW: 1
Recirculating air volume m³/h: 850
Operating Temperature: 5-38℃
Dimensions (Depth x Width x Height) mm: 420x380x610
Ex db ib mb ll BT 4 Gb / Ex db ib mb ll CT 4 Gb
Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.
Note:
1. The above technical specifications are for reference only. Any changes will not be notified in advance, and the physical unit shall prevail!
2. Customizable - with optional R485 remote control interface; available for customization as requested.
Yinteng explosion-proof dehumidifier product series conforms to the following standards:
GB3836.1-2021*1 Part: General Requirements for Electrical Equipment for Explosive Gas Atmospheres
GB3836.2-2021, Part 2: Electrical Equipment for Explosive Gas Atmospheres - Type "d" Intrinsically Safe
GB3836.4-2021, Part 2: Intrinsically Safe "i" Electrical Equipment for Explosive Gas Atmospheres *2
GB3836.9-2021 *9 Part: Encapsulation Type "m" Electrical Equipment for Explosive Gas Atmospheres
GB3836.15-2017 Electrical Equipment for Explosive Gas Atmospheres*Part 15: Electrical Installations in Hazardous Areas (Excluding Mines) JB/T10538-2005 Explosion-Proof Dehumidifiers and Air Conditioners
The Yingteng explosion-proof dehumidifier can operate normally under the following environmental conditions:
a) Altitude not exceeding 2,000m.
b) Suitable for environments with temperatures between 5°C and 38°C, free of corrosive gases.
c) IA, IIB, IIC classifications; explosive hazard areas formed by flammable gases, vapors, and air mixtures in Groups T1 to T4.
The "YingTeng" explosion-proof dehumidifier series has been specially processed with explosion-proof technology, making it suitable for use in flammable and explosive areas in Zones 1 and 2. It is widely applicable in scientific research, oil, chemical, pharmaceutical, and power plant environments where IIA, IIB class T1 to T4 combustible gases, steam, and air mixtures pose explosion hazards. YingTeng explosion-proof dehumidifiers are ideal for temperature-sensitive areas. They have passed inspections by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center and received explosion-proof certification and CCC certification. These dehumidifiers feature an aesthetically pleasing design, reasonable construction, and ease of installation and maintenance. The full series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored by the market. (Customizable options include mobile explosion-proof dehumidifiers, pipeline explosion-proof dehumidifiers, suspended explosion-proof dehumidifiers, temperature control explosion-proof dehumidifiers, cooling explosion-proof dehumidifiers, low-temperature explosion-proof dehumidifiers, high-temperature explosion-proof dehumidifiers, and corrosion-resistant explosion-proof dehumidifiers, etc.).
YingTeng Explosion-proof Dehumidifier Features
LCD Screen: Utilizes a sleek and stylish LCD screen.
Compressors: Utilizing brand-name compressors, low noise, and reliable operation.
Automatic Defrosting: Compressor with 3-minute delay protection, automatic defrost
Safety: Low-voltage control for enhanced safety;
Mobile Method: Equipped with swivel casters at the base for easy movement.
Drainage Method: Continuous drainage through hose
Energy-saving, time-saving, and high-efficiency energy conservation
Control Method: Microcomputer full automatic control, timer on/off.
Humidity can be set as required, automatically shuts off upon meeting requirements, and starts dehumidification if exceeded.
High-efficiency Dehumidification, Essential for Large Storage Facilities, Large Workshops, and Underground Garages.
