Product Specifications

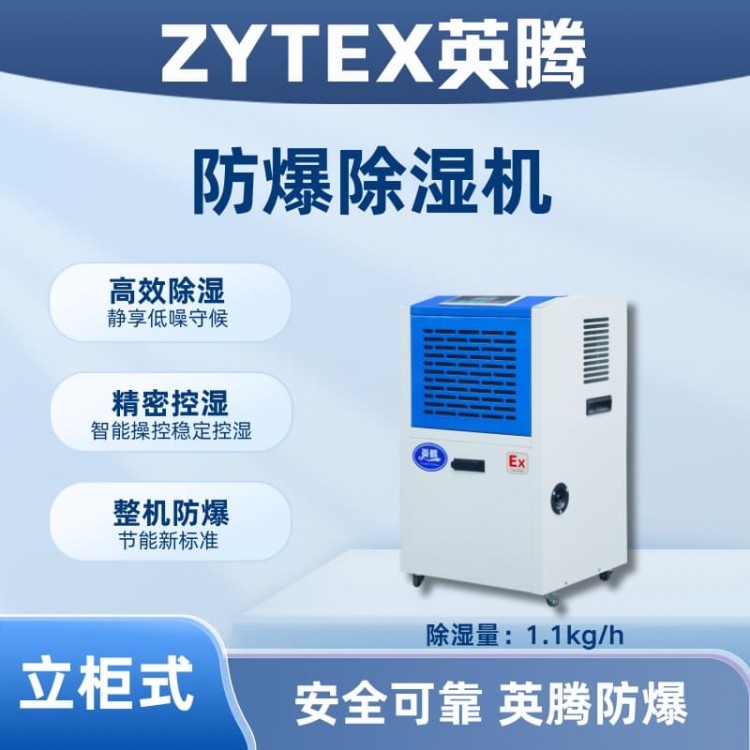

Model: BCF-1.1
Brand: YingTeng
Dehumidification Rate (30℃ RH 80%): 1.1 kg/h
Power: 220V/50Hz
Input Current A: 3.2
Weight: 32 kg
Input Power: 0.8 kW
Re-circulating Airflow: 750 m³/h
Operating Environment Temperature: 5-38℃
Dimensions (Depth x Width x Height) mm: 420x380x610
Ex db IIB T4 Ga/Ex db IIB T4 Ga
Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.
Note:
1. The above technical specifications are for reference only; any changes will not be notified, and the physical unit shall be the criterion!
2. Customizable - Optional R485 remote control interface; customizable upon request.
The YingTeng series explosion-proof dehumidifiers comply with the following standards:
GB3836.1-2021*Electrical Equipment for Explosive Gas Atmospheres*Part 1: General Requirements*1
GB3836.2-2021, Part 2: Electrical Equipment for Explosive Gas Atmospheres - Type "d" Intrinsically Safe Devices *2
GB3836.4-2021 *2nd Part: Intrinsically Safe "i" Electrical Equipment for Explosive Gas Atmospheres
GB3836.9-2021 *9 Part: Encapsulated "m" electrical equipment for explosive gas atmospheres
GB3836.15-2017 Electrical Equipment for Explosive Gas Atmospheres*Part 15: Electrical Installations in Hazardous Areas (Excluding Mines) JB/T10538-2005 Explosion-Proof Dehumidifiers and Air Conditioners
The YingTeng explosion-proof dehumidifier operates normally under the following environmental conditions:
a) Altitude not exceeding 2,000m;
b) Applicable environment: Temperature range of 5°C to 38°C, free of corrosive gases.
c) IA, IIB, IIC classifications; explosive hazardous areas formed by mixtures of flammable gases, vapors, and air in the T1 to T4 groups.
The "YingTeng" explosion-proof dehumidifier series has been specially processed with explosion-proof technology and is widely applicable in flammable and explosive areas of Zones 1 and 2. It is suitable for research, oil, chemical, pharmaceutical, and power plant environments where there may be IIa, Iib Group T1 to T4 combustible gases, steam, and air mixtures forming explosive hazards. YingTeng explosion-proof dehumidifiers are suitable for spaces with temperature requirements and have passed inspections by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products, receiving both explosion-proof certification and explosion-proof CCC certificate. They feature an aesthetically pleasing design, reasonable construction, and ease of installation and maintenance. The entire series uses branded compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and reliable safety. They are highly favored in the market. (Customizable options include portable explosion-proof dehumidifiers, pipeline explosion-proof dehumidifiers, suspended explosion-proof dehumidifiers, temperature-regulating explosion-proof dehumidifiers, cooling explosion-proof dehumidifiers, low-temperature explosion-proof dehumidifiers, high-temperature explosion-proof dehumidifiers, and corrosion-resistant explosion-proof dehumidifiers, etc.).
Yinteng Explosion-proof Dehumidifier Features
LCD Screen: Utilizes a sleek and stylish LCD screen.
Compressors: Utilizing brand-name compressors, low noise, and reliable operation.
Automatic Defrosting: Compressor with 3-minute delay protection, automatic defrosting
Safety: Utilizes low-voltage control for enhanced safety
Mobility: Equipped with swivel casters for easy movement.
Drainage Method: Continuous drainage through hose
Energy-saving, time-saving, and high-efficiency energy conservation
Control Method: Microcomputer full automatic control, timer on/off.
Humidity can be set as required, automatically shuts down upon meeting requirements, and starts dehumidification when exceeding the set limit.
Highly effective dehumidification, essential for large warehouses, workshops, and underground parking garages.
