Product Specifications

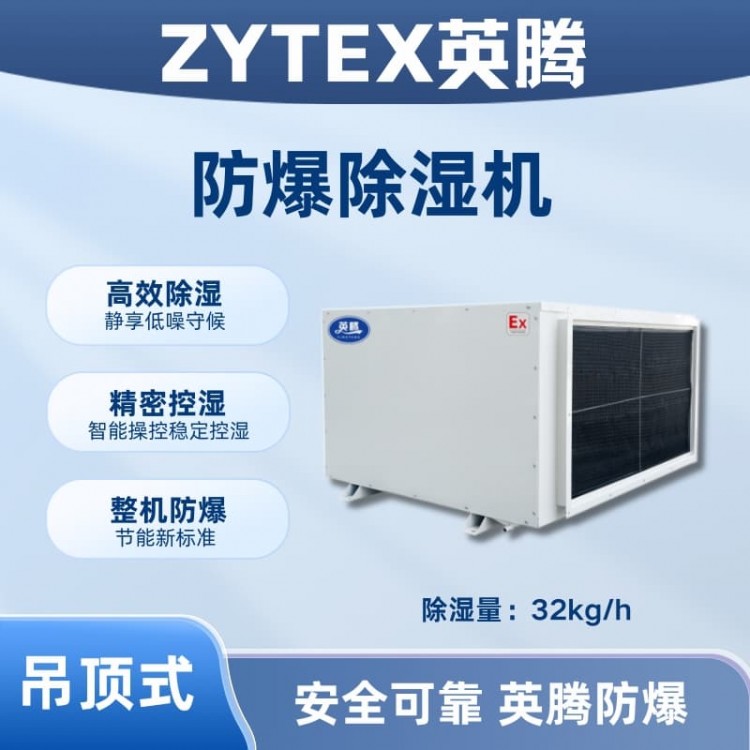

Model: BCF-32D
Brand: YingTeng
Dehumidification Capacity (30℃ RH 90%): 32 kg/h
Power: 380V/50Hz
Input Power: 13,500W
Defrosting Method: Automatic Defrost
Re-circulating Airflow: 7200 m³/h
Drainage Method: Hose Drainage
Airflow Method: Front Supply, Rear Intake
Operating Temperature: 5-38℃
Weight: 290 kg
Dimensions: Length 1600mm, Width 1500mm, Height 780mm
Ex db ib mb ll BT 4 Gb / Ex db ib mb ll CT 4 Gb
Manufacturer: Henan Tongteng Explosion-proof Electrical Equipment Co., Ltd.
Note:
1. The above technical specifications are for reference only; please note that no prior notice will be given for any changes, and the physical unit shall prevail!
2. Customizable - with optional R485 remote control interface; customizable upon request.
The Yinteng explosion-proof dehumidifier product series complies with the following standards:
GB3836.1-2021 Part 1: General Requirements for Electrical Equipment for Explosive Gas Atmospheres*1
GB3836.2-2021 *2nd Part: Explosion-proof Electrical Equipment for Explosive Gas Atmospheres - Type "d"
GB3836.4-2021, Part 2: Intrinsically Safe "i" electrical equipment for explosive gas atmospheres *2
GB3836.9-2021 Electrical Equipment for Explosive Gas Atmospheres *Part 9: Encapsulation Type "m"
GB 3836.15-2017 Electrical Equipment for Explosive Gas Atmospheres*Part 15: Electrical Installations in Hazardous Areas (Excluding Mines) JB/T 10538-2005 Explosion-Proof Dehumidifiers and Air Conditioners
The YingTeng explosion-proof dehumidifier operates normally under the following environmental conditions:
a) Altitude not exceeding 2,000m.
b) Suitable for environments with temperatures ranging from 5°C to 38°C, free of corrosive gases.
c) IA, IIB, IIC classifications; explosive hazardous areas formed by mixtures of flammable gases, vapors, and air from groups T1 to T4.
The "Yingteng" explosion-proof dehumidifier series has been processed with special explosion-proof technology, making it suitable for use in Class 1 and 2 flammable and explosive environments. It is widely applicable in research, oil, chemical, pharmaceutical, power plant, and other locations where there may be or could be II A, II B groups T1 to T4 combustible gases, steam-air mixtures, and explosive hazards. Yingteng explosion-proof dehumidifiers are suitable for areas with temperature requirements. They have passed inspections by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center and been issued with explosion-proof certification and explosion-proof CCC certificate. They feature an attractive appearance, reasonable design, and ease of installation and maintenance. The entire series employs brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. These dehumidifiers are highly favored by the market. (Customizable options include mobile explosion-proof dehumidifiers, pipeline explosion-proof dehumidifiers, suspended explosion-proof dehumidifiers, temperature control explosion-proof dehumidifiers, cooling explosion-proof dehumidifiers, low-temperature explosion-proof dehumidifiers, high-temperature explosion-proof dehumidifiers, and anti-corrosion explosion-proof dehumidifiers, etc.)
YingTeng Explosion-proof Dehumidifier Features
LCD Display: Utilizes a sleek and stylish LCD display.
Compressors: Utilizing brand-name compressors, low noise, and reliable operation.
Automatic Defrost: Compressor delay protection for 3 minutes, automatic defrost
Safety: Low-voltage control for enhanced safety usage
Mobility: Equipped with swivel casters at the base for easy movement.
Drainage Method: Continuous drainage via hose.
Energy-saving, time-saving, and high-efficiency energy conservation
Control Method: Microcomputer full automatic control, timer on/off.
Humidity can be set as required, automatically shuts down upon meeting requirements, and starts dehumidification when exceeding the limit.
Powerful dehumidification, essential for large warehouses, workshops, and underground parking garages.
