Product Specifications

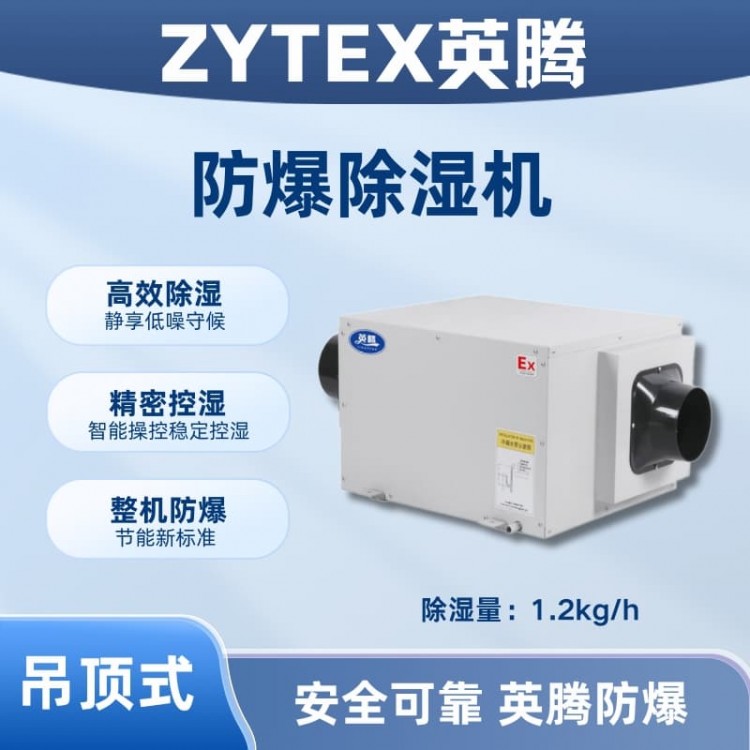

Model: BCF-1.2D
Brand: YingTeng
Dehumidification Rate (30℃ RH 80%): 1.2 kg/h
Power: 220V/50Hz
Input Power: 675W
Defrosting Method: Auto Defrost
Recirculating Airflow: 365 m³/h
Drainage Method: Hose Drain
Airflow Direction: Front Delivery, Rear Intake
Operating Temperature: 5-38℃
Weight: 25 kg
Dimensions: Length 855mm, Width 600mm, Height 350mm
Explosion-Proof Mark: Ex db ib mb ll BT4Gb / Ex db ib mb ll CT4Gb
Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.
Note:
1. The above technical specifications are for reference only. Any changes will not be notified in advance, and the physical unit shall prevail!
2. Customizable - Optional R485 remote control interface; customizable as per request.
The Yingteng Explosion-proof Dehumidifier product series complies with the following standards:
GB3836.1-2021 Part 1: General Requirements for Electrical Equipment for Explosive Gas Atmospheres *1
GB3836.2-2021, Part 2: Intrinsically Safe "d" Type Electrical Equipment for Explosive Gas Atmospheres *2
GB3836.4-2021 Electrical Equipment for Explosive Gas Atmospheres*Part 2: Intrinsically Safe "i"
GB3836.9-2021 *9 Part: Encapsulation Type "m" Electrical Equipment for Explosive Gas Atmospheres
GB 3836.15-2017 *15th Part: Electrical Equipment for Explosive Gas Atmospheres – Electrical Installations (Excluding Mines) *JB/T 10538-2005 Explosion-Proof Dehumidifiers and Air Conditioners
The YingTeng explosion-proof dehumidifier operates normally under the following environmental conditions:
a) Altitude not exceeding 2,000m.
b) Suitable for environments with temperatures ranging from 5°C to 38°C, free of corrosive gases.
c) IA, IIB, IIC classifications; explosive hazard areas formed by mixtures of flammable gases, vapors, and air from groups T1 to T4.
The "YingTeng" explosion-proof dehumidifier series has been specially processed with explosion-proof technology, suitable for use in flammable and explosive areas in Zones 1 and 2. It is widely applicable in scientific research, oil, chemical, pharmaceutical, and power plant environments where there is or may be a risk of II A, II B, T1-T4 group combustible gases and steam-air mixtures. YingTeng explosion-proof dehumidifiers are ideal for locations with temperature requirements. These dehumidifiers have passed inspection by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products and have received explosion-proof certification and CCC certification. They feature an attractive design, reasonable construction, and easy installation and maintenance. The entire series uses branded compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored by the market. (Customizable options include mobile explosion-proof dehumidifiers, pipeline explosion-proof dehumidifiers, hoistable explosion-proof dehumidifiers, temperature-control explosion-proof dehumidifiers, cooling-type explosion-proof dehumidifiers, low-temperature explosion-proof dehumidifiers, high-temperature explosion-proof dehumidifiers, and anti-corrosion explosion-proof dehumidifiers, etc.).
Yinteng Explosion-proof Dehumidifier Features
LCD Display: Equipped with a sleek and stylish LCD display.
Compressors: Utilize branded compressors, low noise, reliable operation.
Automatic Defrosting: Compressor delay protection for 3 minutes, automatic defrosting
Safety: Low-voltage control for enhanced safety;
Mobility: Equipped with swivel casters for easy movement.
Drainage Method: Continuous drainage via hose.
Energy-saving, time-saving, and high-efficiency energy conservation
Control Method: Microcomputer full automatic control, timer on/off.
Humidity can be set as required, automatically shuts down upon meeting requirements, and starts dehumidification if exceeded.
Strong dehumidification, essential for large warehouses, large workshops, underground garages, and similar locations.
