Product Specifications
Model: BCF-25D
Brand: YingTeng
Dehumidification Rate (30℃ RH 90%): 25 kg/h
Power: 380V/50Hz
Input Power: 9800W
Defrosting Method: Auto Defrost
Re-circulating Airflow: 6500 m³/h
Drainage Method: Hose Drainage
Airflow Direction: Front Delivery, Rear Intake
Operating Temperature: 5-38℃
Weight: 250 kg
Dimensions: Length 1200mm, Width 1100mm, Height 700mm
Ex db ib mb ll BT 4 Gb / Ex db ib mb ll CT 4 Gb
Manufacturer: Henan Tongteng Explosion-proof Electrical Appliances Co., Ltd.
Note:
1. The above technical specifications are for reference only; any changes are not subject to prior notice, and the physical unit shall prevail!
2. Customizable - with optional R485 remote control interface; available for customization as required.

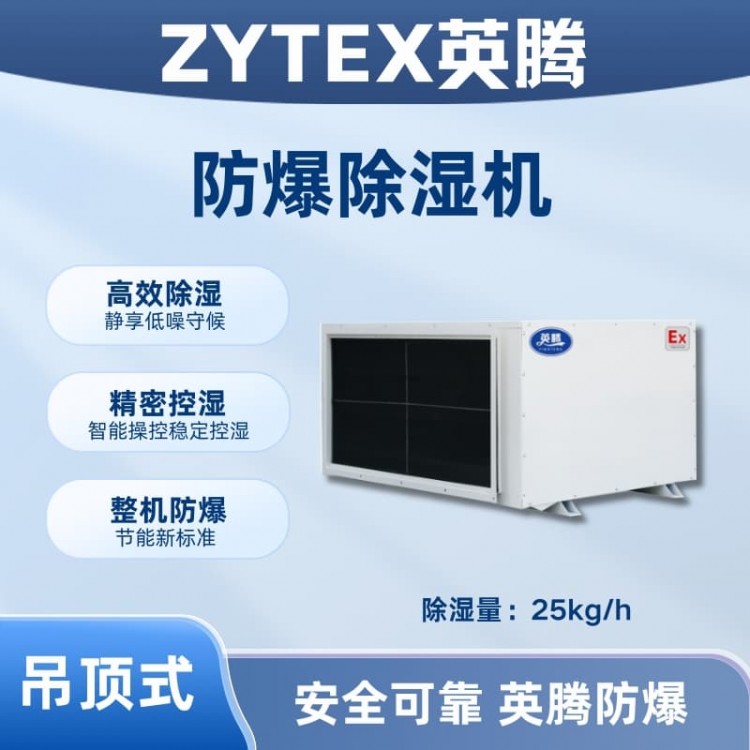

The Yingteng explosion-proof dehumidifier product series complies with the following standards:
GB3836.1-2021*1st Part: General Requirements for Electrical Equipment for Explosive Gas Atmospheres
GB3836.2-2021 *2nd Part: Explosion-proof Electrical Equipment for Explosive Gas Atmospheres – Type “d”隔爆型
GB3836.4-2021 Part 2: Intrinsically Safe "i" electrical equipment for explosive gas atmospheres *2
GB3836.9-2021 Electrical equipment for explosive gas atmospheres*Part 9: Encapsulation type “m”
GB3836.15-2017 Electrical Equipment for Explosive Gas Atmospheres*Part 15: Electrical Installations in Hazardous Areas (Excluding Coal Mines) JB/T10538-2005 Explosion-proof Dehumidifiers and Air Conditioners
The Yinteng Explosion-proof Dehumidifier operates normally under the following environmental conditions:
a) Altitude not exceeding 2,000m.
b) Suitable for environments with temperatures ranging from 5°C to 38°C, free of corrosive gases.
c) IA, IIB, IIC exist; explosive hazardous areas formed by mixtures of flammable gases, vapors, and air in T1~T4 groups.
The "YingTeng" explosion-proof dehumidifier series has been specially processed with explosion-proof technology, suitable for use in Class 1 and Class 2 flammable and explosive environments. It is widely applicable in scientific research, petrochemical, pharmaceutical, power plant, and other locations where IIA, IIB, T1-T4 groups of combustible gases, steam, and air mixtures may form explosive hazards. YingTeng explosion-proof dehumidifiers are suitable for areas with temperature requirements. These dehumidifiers have passed inspections by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center and have received explosion-proof certification and CCC certification. They feature an aesthetically pleasing design, reasonable structure, and easy installation and maintenance. The full series uses branded compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include: portable explosion-proof dehumidifiers, pipeline explosion-proof dehumidifiers, suspended explosion-proof dehumidifiers, temperature-controlled explosion-proof dehumidifiers, cooling-type explosion-proof dehumidifiers, low-temperature type explosion-proof dehumidifiers, high-temperature type explosion-proof dehumidifiers, corrosion-resistant explosion-proof dehumidifiers, etc.).
Inten Explosion-proof Dehumidifier Features
LCD Screen: Utilizes an LCD screen, stylish and elegant.
Compressors: Utilizing branded compressors, low noise, and reliable operation.
Automatic Defrosting: Compressor with a 3-minute delay protection, automatic defrosting
Safety: Low-voltage control for enhanced safety;
Mobility: Equipped with swivel casters at the base for easy movement.
Drainage Method: Continuous drainage through hose.
Energy-saving, time-saving, and high-efficiency energy conservation
Control Method: Microcomputer full automatic control, timer on/off.
Humidity can be set as required, automatically shuts off upon reaching the set level, and activates dehumidification if exceeded.
High-efficiency Dehumidification, Essential for Large Warehouses, Large Factories, Underground Garages, and More.
